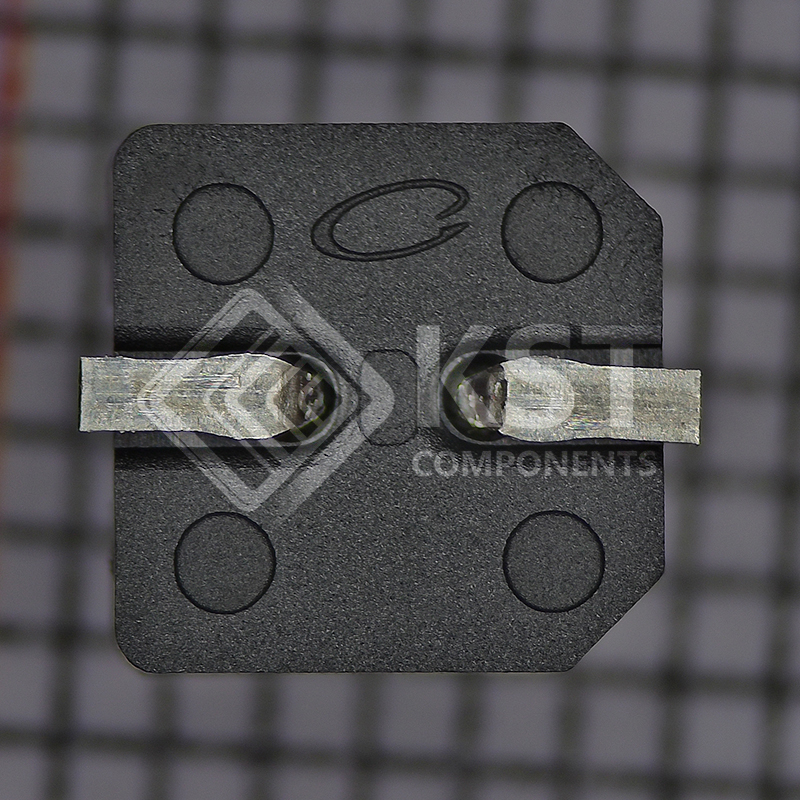

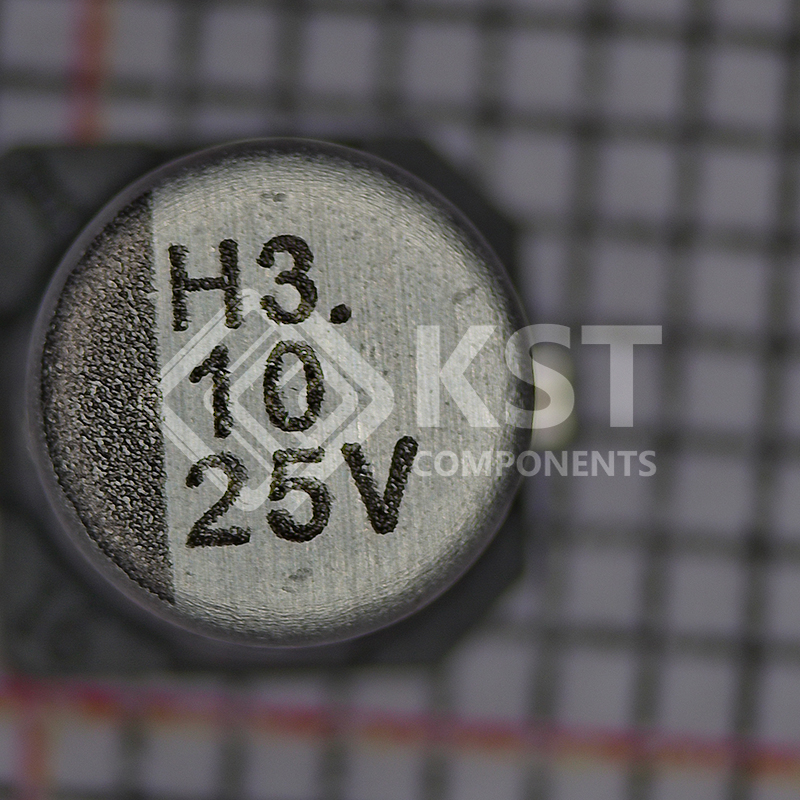

UWX1E100MCL1GB
INQUIRY ONLINE
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
|
Mfr
|
Nichicon
|
|
|
Series
|
UWX
|
|
|

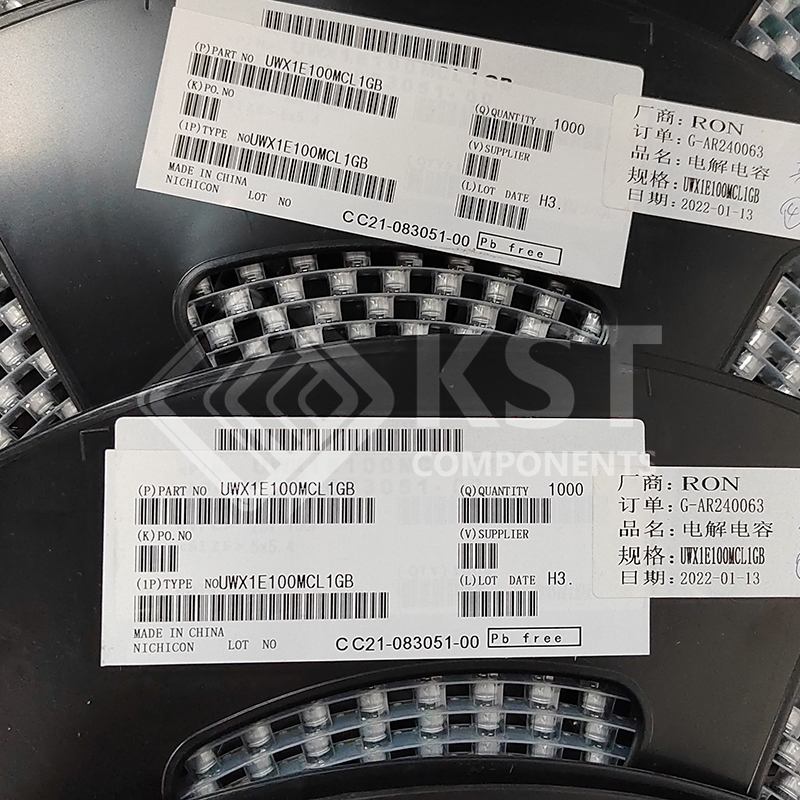

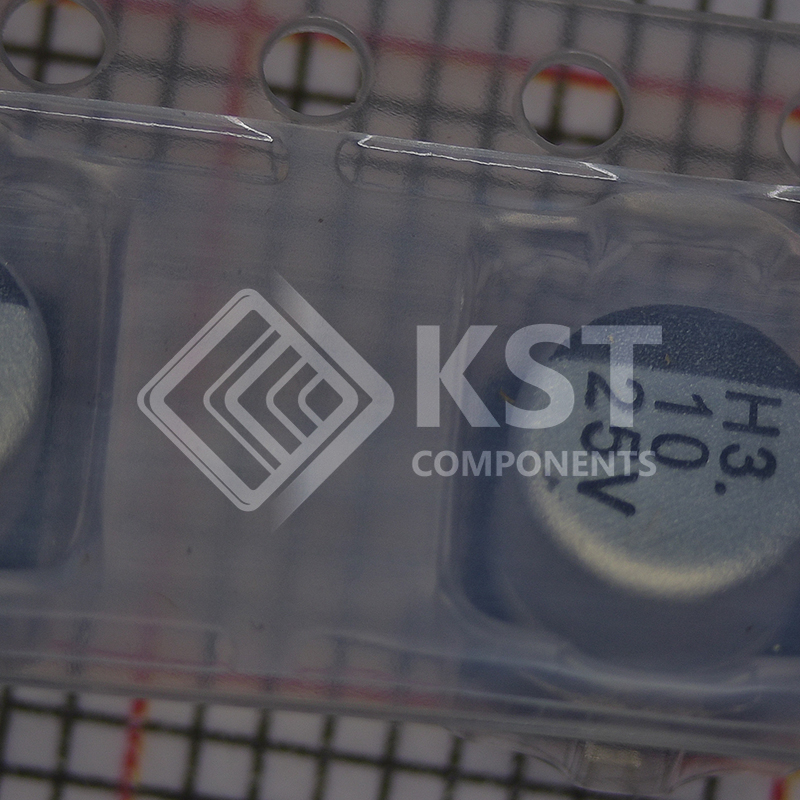

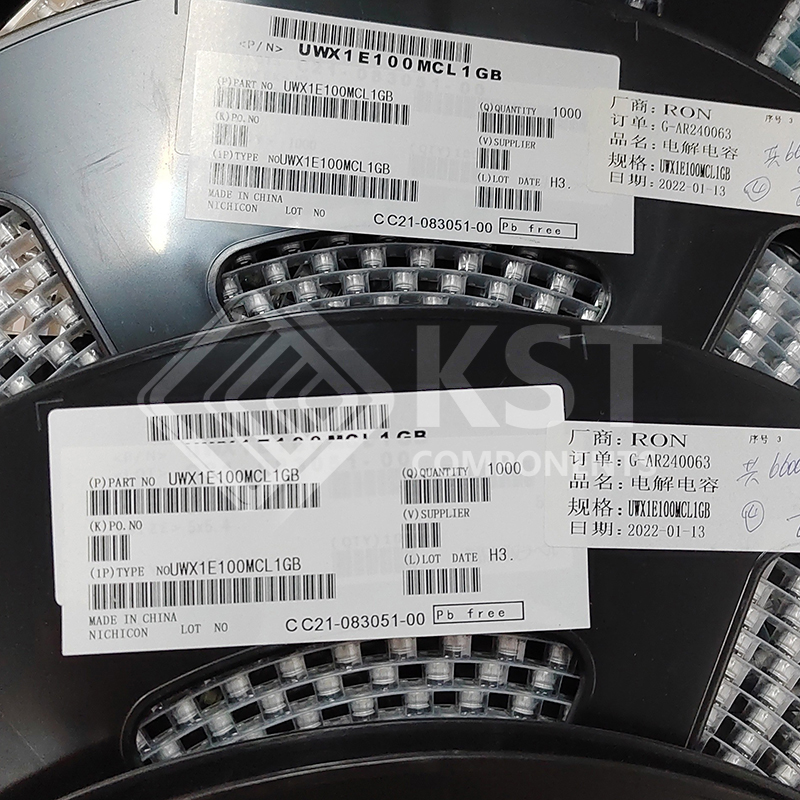

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
Capacitance
|
10 µF
|
|
|
Tolerance
|
±20%
|
|
|
Voltage – Rated
|
25 V
|
|
|
ESR (Equivalent Series Resistance)
|
–
|
|
|
Lifetime @ Temp.
|
2000 Hrs @ 85°C
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Polarization
|
Polar
|
|
|
Ratings
|
–
|
|
|
Applications
|
General Purpose
|
|
|
Ripple Current @ Low Frequency
|
27 mA @ 120 Hz
|
|
|
Ripple Current @ High Frequency
|
40.5 mA @ 10 kHz
|
|
|
Lead Spacing
|
–
|
|
|
Size / Dimension
|
0.197″ Dia (5.00mm)
|
|
|
Height – Seated (Max)
|
0.213″ (5.40mm)
|
|
|
Surface Mount Land Size
|
0.209″ L x 0.209″ W (5.30mm x 5.30mm)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
Radial, Can – SMD
|
