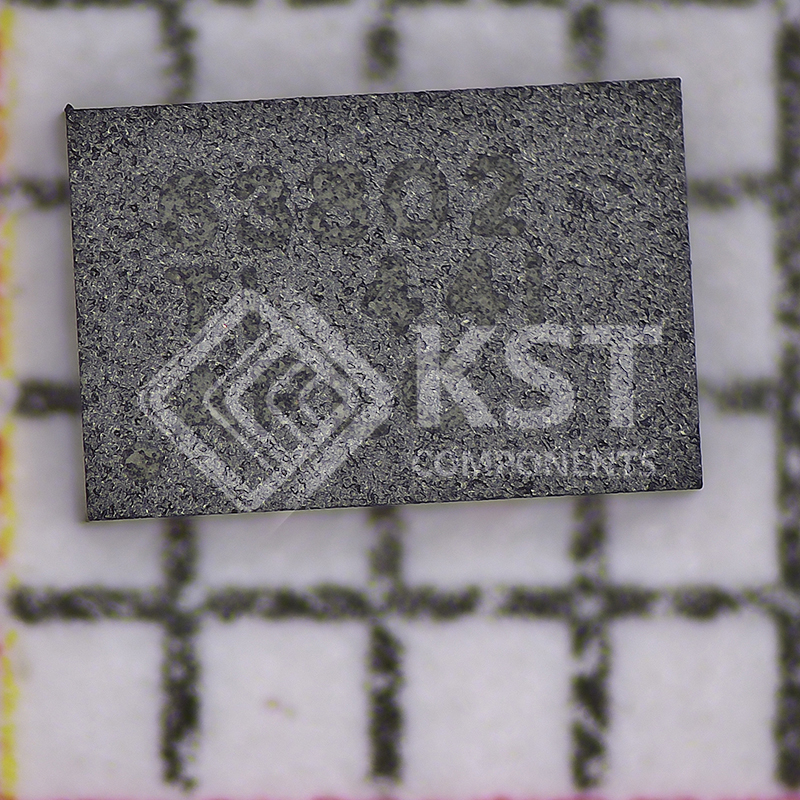

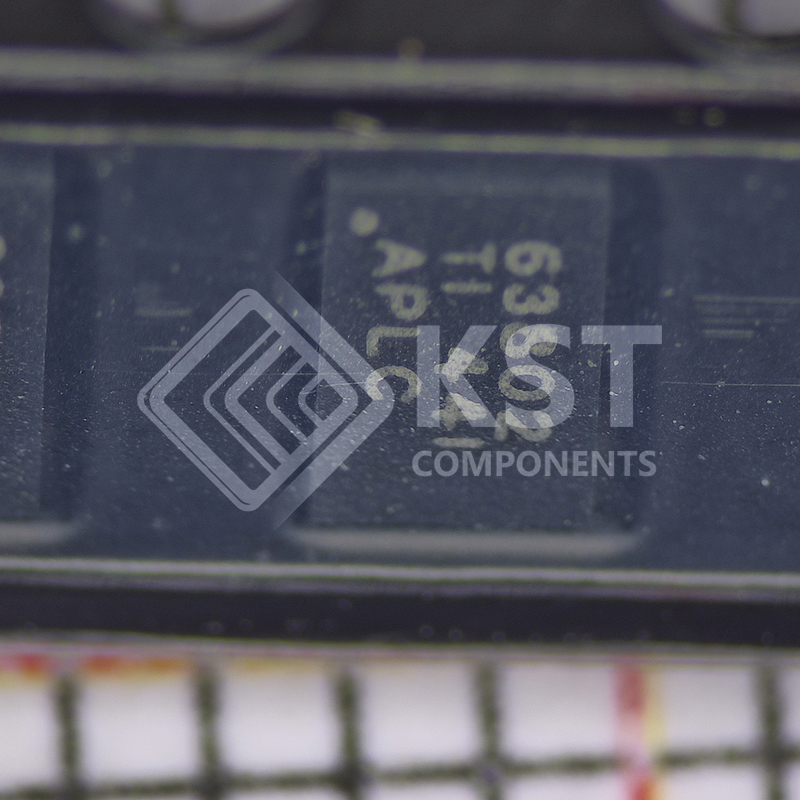

TPS63802DLAR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – DC DC Switching Regulators
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
–
|
|
|

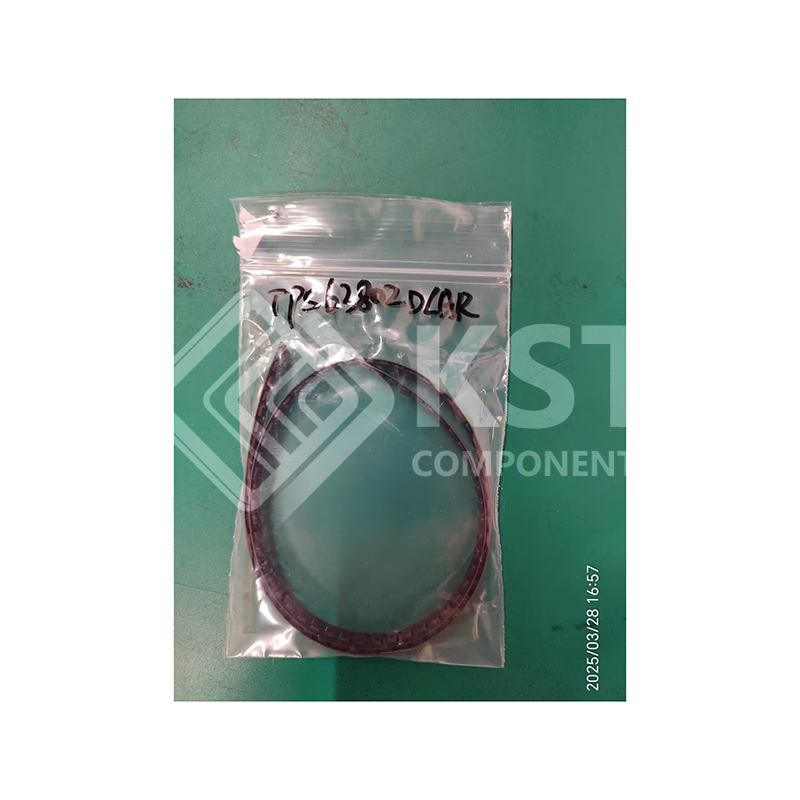

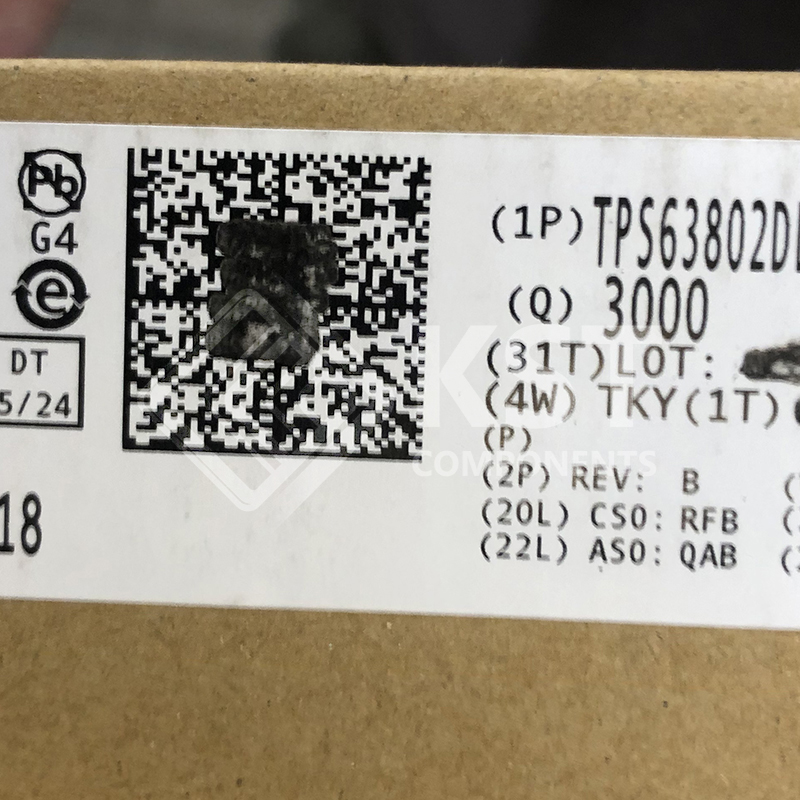

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Function
|
Step-Up/Step-Down
|
|
|
Output Configuration
|
Positive
|
|
|
Topology
|
Buck-Boost
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Outputs
|
1
|
|
|
Voltage – Input (Min)
|
1.3V
|
|
|
Voltage – Input (Max)
|
5.5V
|
|
|
Voltage – Output (Min/Fixed)
|
1.8V
|
|
|
Voltage – Output (Max)
|
5.2V
|
|
|
Current – Output
|
2A
|
|
|
Frequency – Switching
|
2.1MHz
|
|
|
Synchronous Rectifier
|
Yes
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|

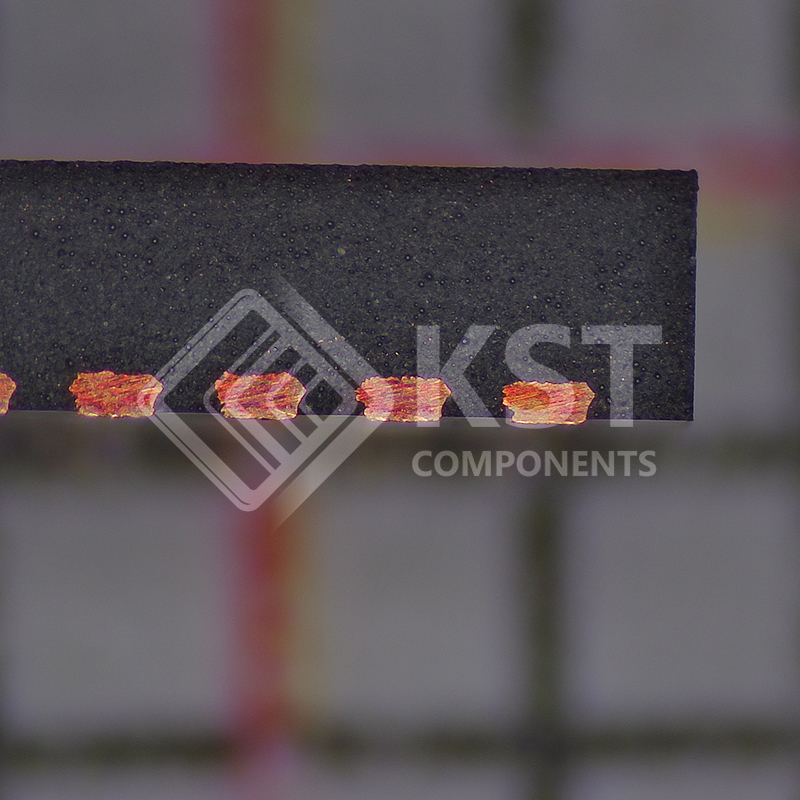

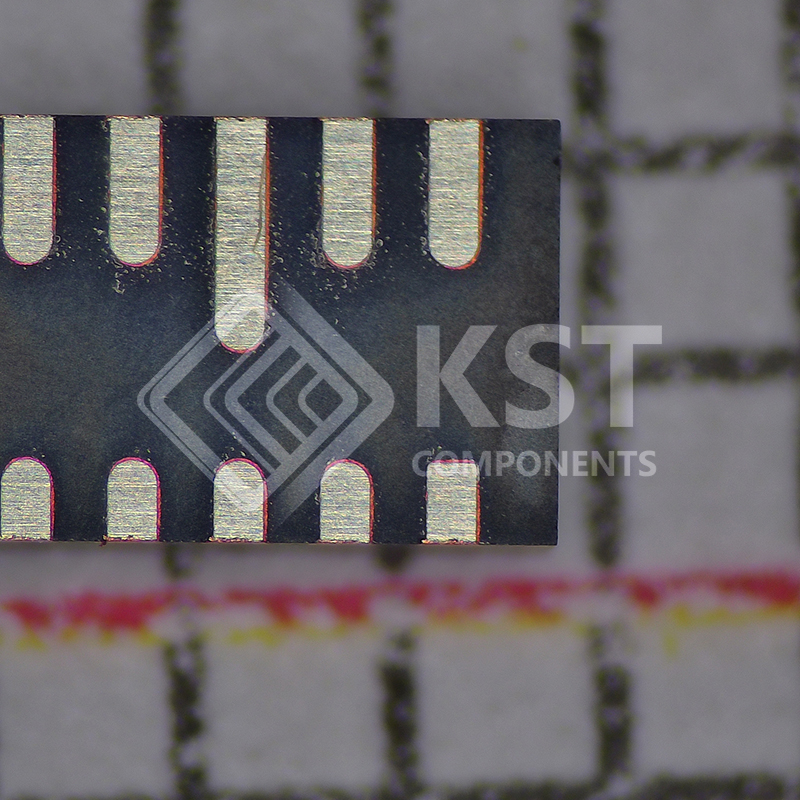

Package / Case
|
10-PowerVFDFN
|
|
|
Supplier Device Package
|
10-VSON-HR (3×2)
|
|
|
Base Product Number
|
TPS63802
|
