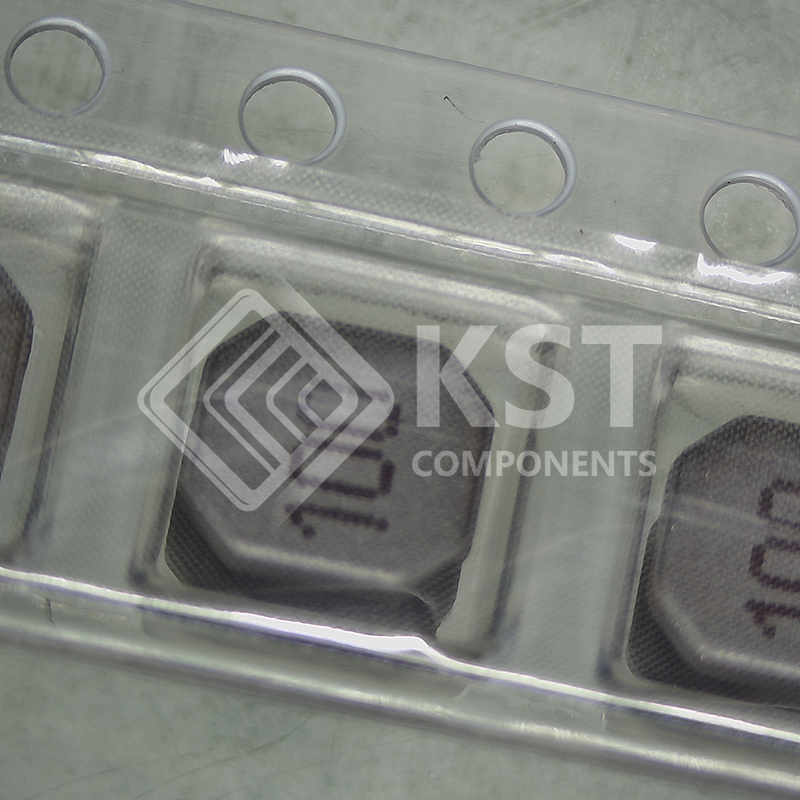

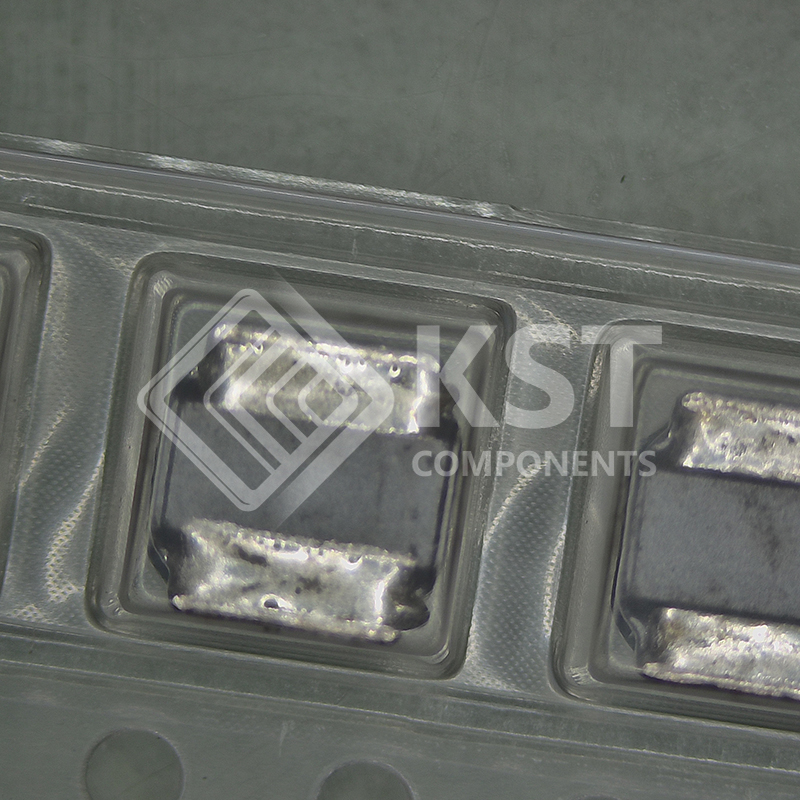

SWPA5040S100MT
INQUIRY ONLINE
| Mfr Package Description | CHIP, 2020 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Core Material | FERRITE |
| DC Resistance | 0.064 ohm |
| Inductance-Nom (L) | 10.0 µH |
| Inductor Application | POWER INDUCTOR |
| Manufacturer Series | SWPA |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -25.0 Cel |
| Operating Temperature-Max | 120.0 Cel |
| Rated Current-Max | 2.1 A |
| Self Resonance Frequency | 18.0 MHz |
| Shape/Size Description | RECTANGULAR PACKAGE |
| Shielded | YES |
| Surface Mount | YES |
| Terminal Placement | DUAL ENDED |
| Terminal Shape | ONE SURFACE |
| Test Frequency | 0.1 MHz |
| Tolerance | 20.0 % |
