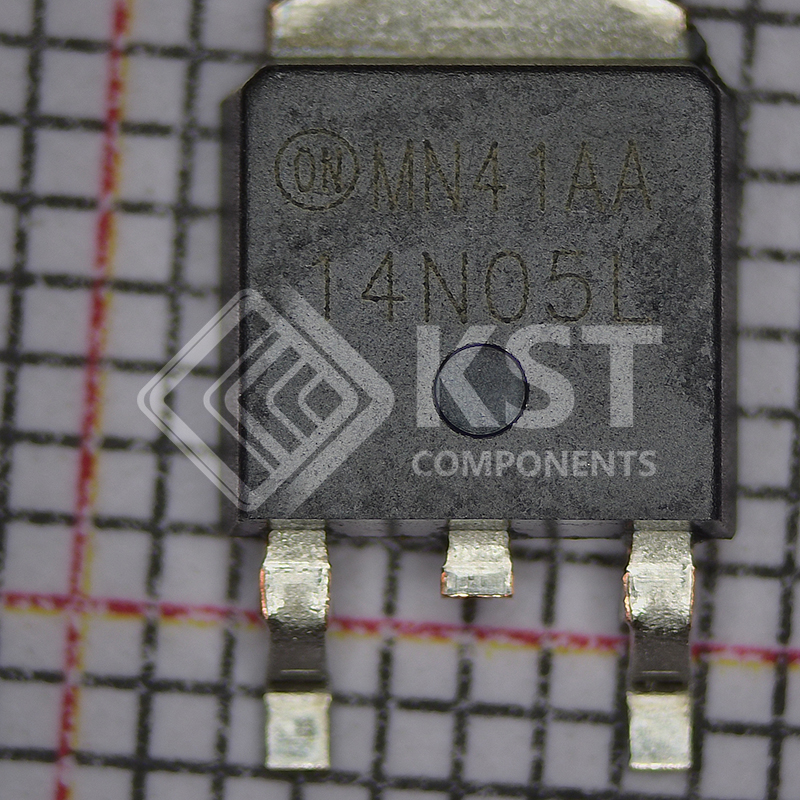

RFD14N05LSM
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
50 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
14A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V
|
|
|
Rds On (Max) @ Id, Vgs
|
100mOhm @ 14A, 5V
|
|
|
Vgs(th) (Max) @ Id
|
2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
40 nC @ 10 V
|
|
|
Vgs (Max)
|
±10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
670 pF @ 25 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
48W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 155°C (TJ)
|
|
|
Grade
|
–
|
|
|
Qualification
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
TO-252AA
|
|
|
Package / Case
|
TO-252-3, DPAK (2 Leads + Tab), SC-63
|
|
|
Base Product Number
|
RFD14N05
|
