PTN36043ABXY
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
|
|
|
Manufacturer
|
NXP USA Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Switch Circuit
|
SPDT
|
|
|
Multiplexer/Demultiplexer Circuit
|
2:1
|
|
|
Number of Circuits
|
2
|
|
|
On-State Resistance (Max)
|
–
|
|
|
Channel-to-Channel Matching (ΔRon)
|
–
|
|
|
Voltage – Supply, Single (V+)
|
1.7V ~ 1.9V
|
|
|
Voltage – Supply, Dual (V±)
|
–
|
|
|
Switch Time (Ton, Toff) (Max)
|
–
|
|
|
-3db Bandwidth
|
–
|
|
|
Charge Injection
|
–
|
|
|
Channel Capacitance (CS(off), CD(off))
|
–
|
|
|
Current – Leakage (IS(off)) (Max)
|
6µA
|
|
|
Crosstalk
|
-50dB @ 2.5GHz
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

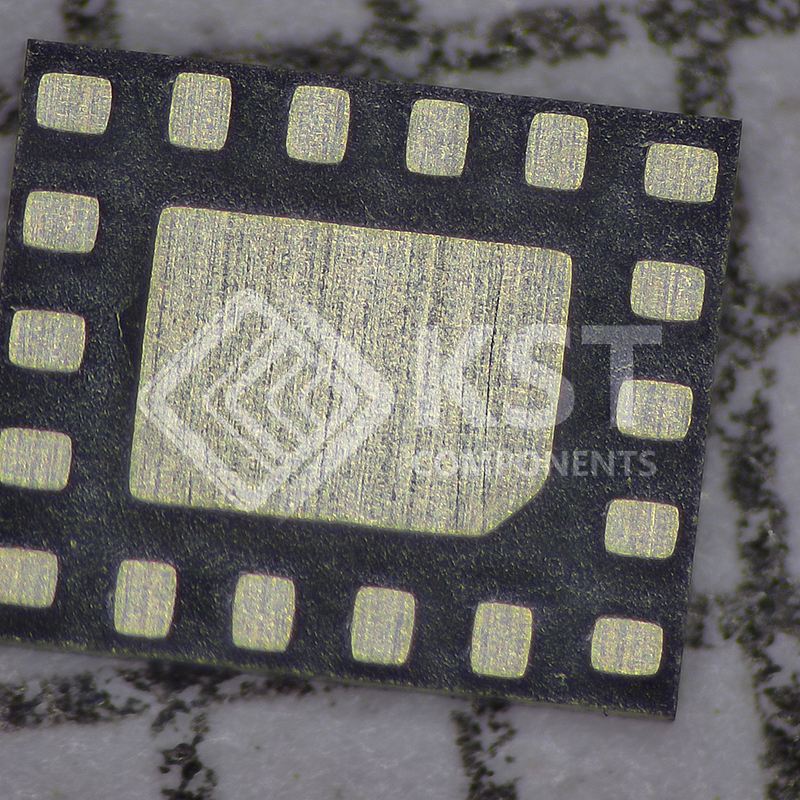

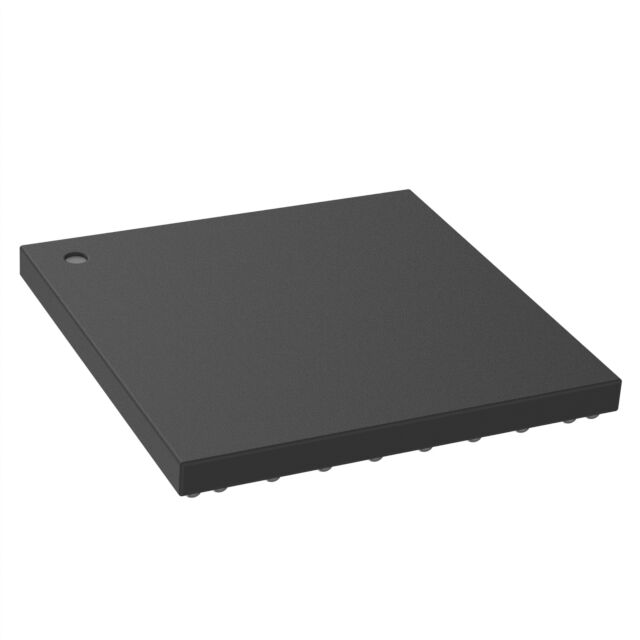

18-XFQFN Exposed Pad
|
|
|
Supplier Device Package
|
18-X2QFN (2.4×2)
|
|
|
Base Product Number
|
PTN36043
|
