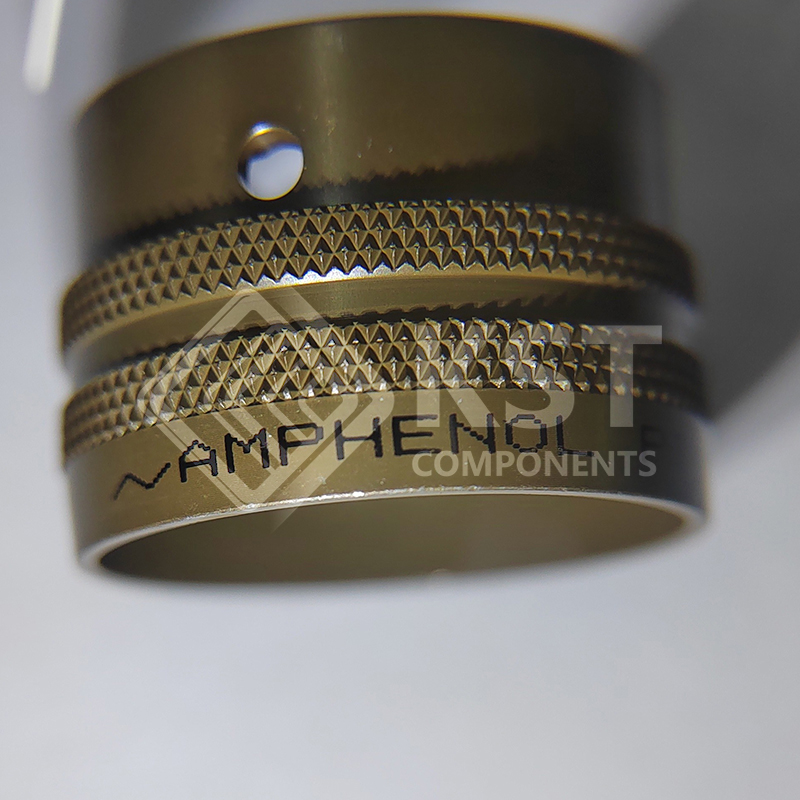

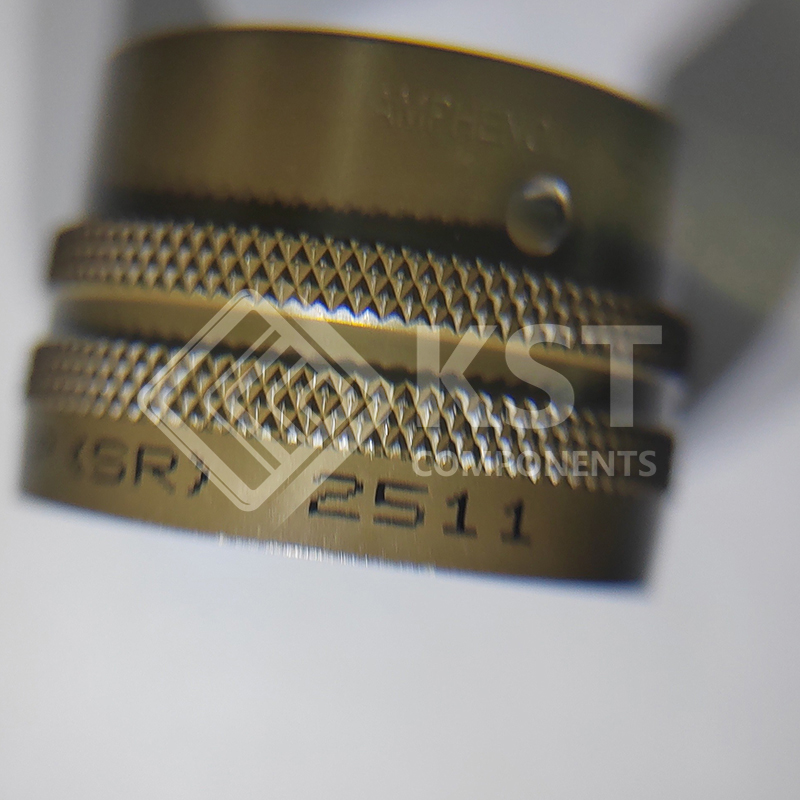

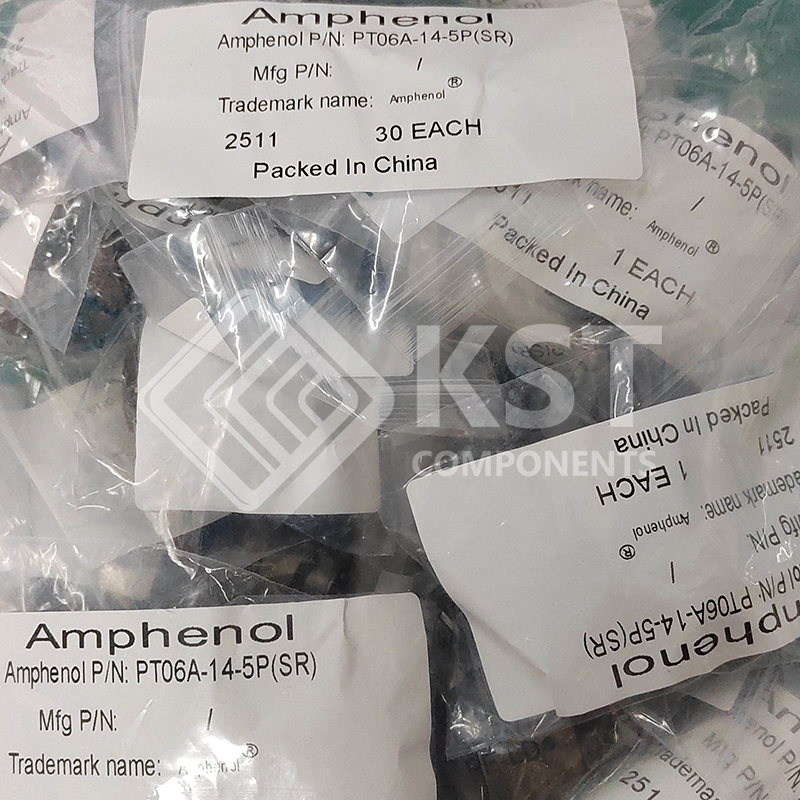

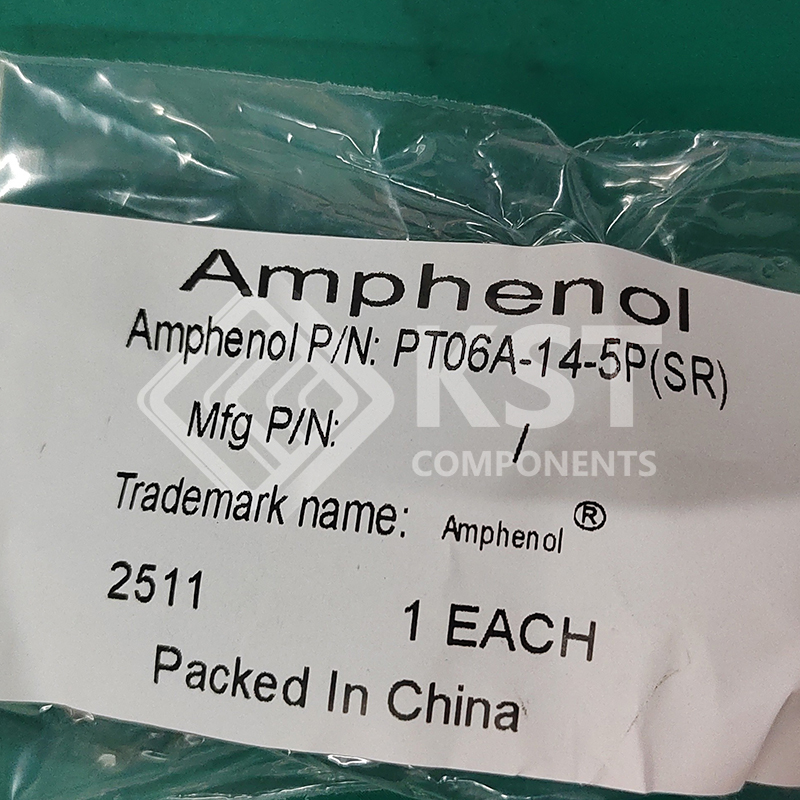

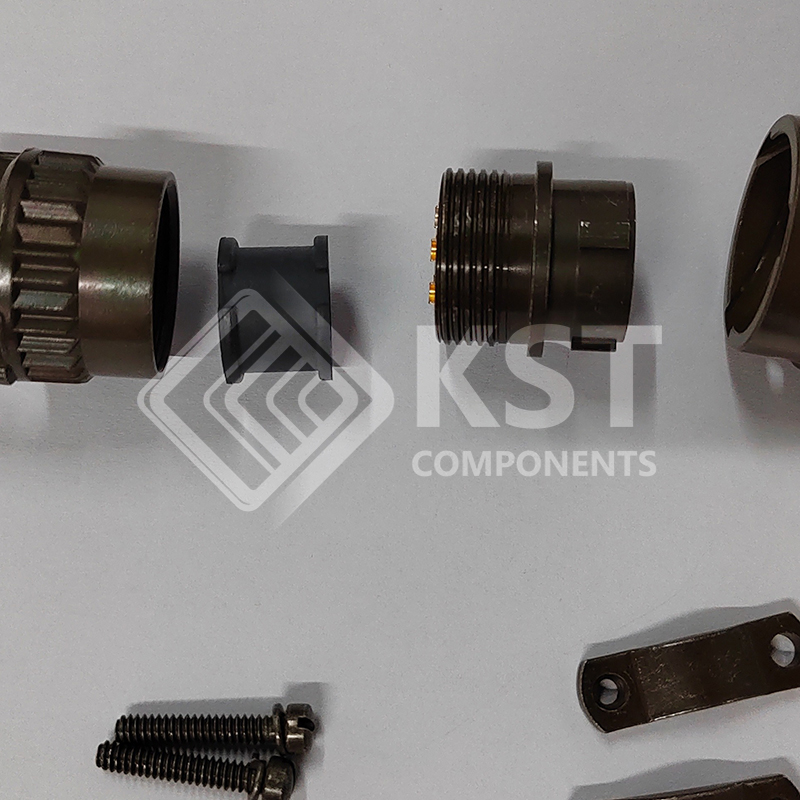

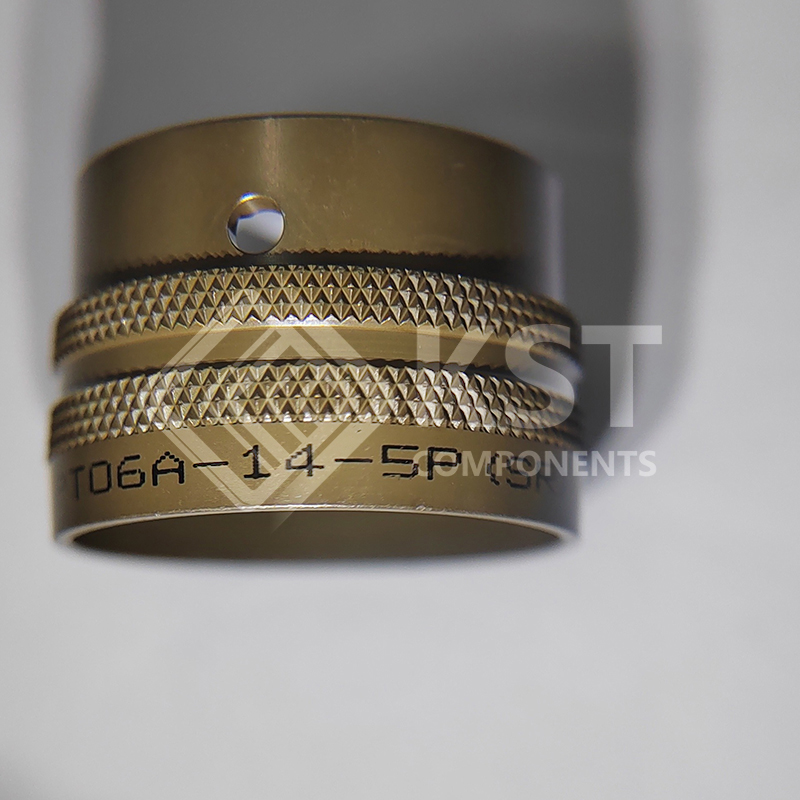

PT06A-14-5P(SR)
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Circular Connectors
Circular Connector Assemblies
|
|
|
Mfr
|
Amphenol Industrial Operations
|
|
|
Series
|
PT
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Plug, Male Pins
|
|
|
Number of Positions
|
5
|
|
|
Grade
|
–
|
|
|
Qualification
|
MIL-DTL-26482 Series I
|
|
|
Shell Size – Insert
|
14-5
|
|
|
Shell Size, MIL
|
–
|
|
|
Mounting Type
|
Free Hanging (In-Line)
|
|
|
Mounting Feature
|
–
|
|
|
Termination
|
Solder Cup
|
|
|
Fastening Type
|
Bayonet Lock
|
|
|
Orientation
|
N (Normal)
|
|
|
Primary Material
|
Metal
|
|
|
Shell Material
|
Aluminum
|
|
|
Shell Finish
|
Olive Drab Chromate over Cadmium
|
|
|
Contact Finish – Mating
|
Gold
|
|
|
Color
|
Olive Drab
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
–
|
|
|
Features
|
Strain Relief
|
|
|
Shielding
|
Unshielded
|
|
|
Current Rating (Amps)
|
–
|
|
|
Voltage Rating
|
–
|
|
|
Cable Opening
|
–
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Backshell Material, Plating
|
Aluminum, Olive Drab Cadmium
|
|
|
Contact Material
|
Copper Alloy
|
|
|
Contact Finish Thickness – Mating
|
–
|
|
|
Insert Material
|
Neoprene
|
|
|
Applications
|
Aerospace, Industrial, Instrumentation, Mass Transit, Military
|
|
|
Base Product Number
|
PT06A
|
