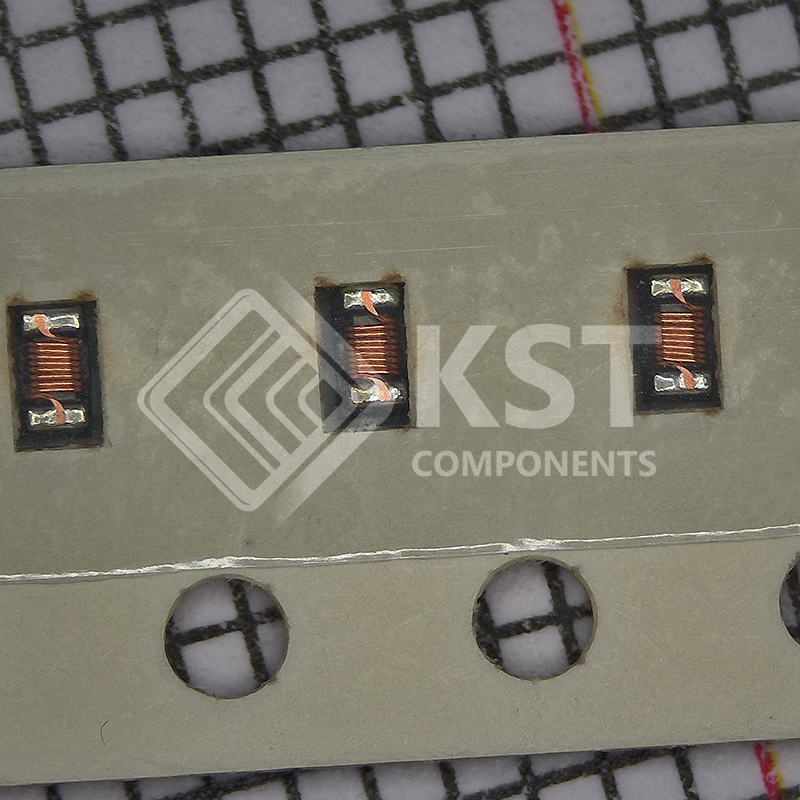

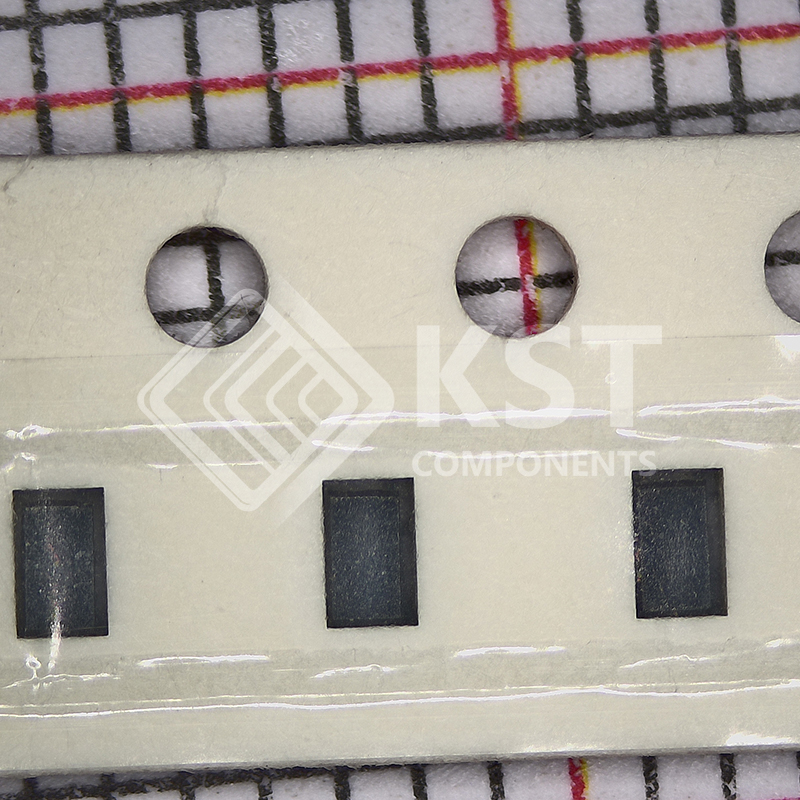

PFL1609-471MEW
INQUIRY ONLINE
|
Category
|
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr
|
Coilcraft
|
|
|
Series
|
PFL1609
|
|
|

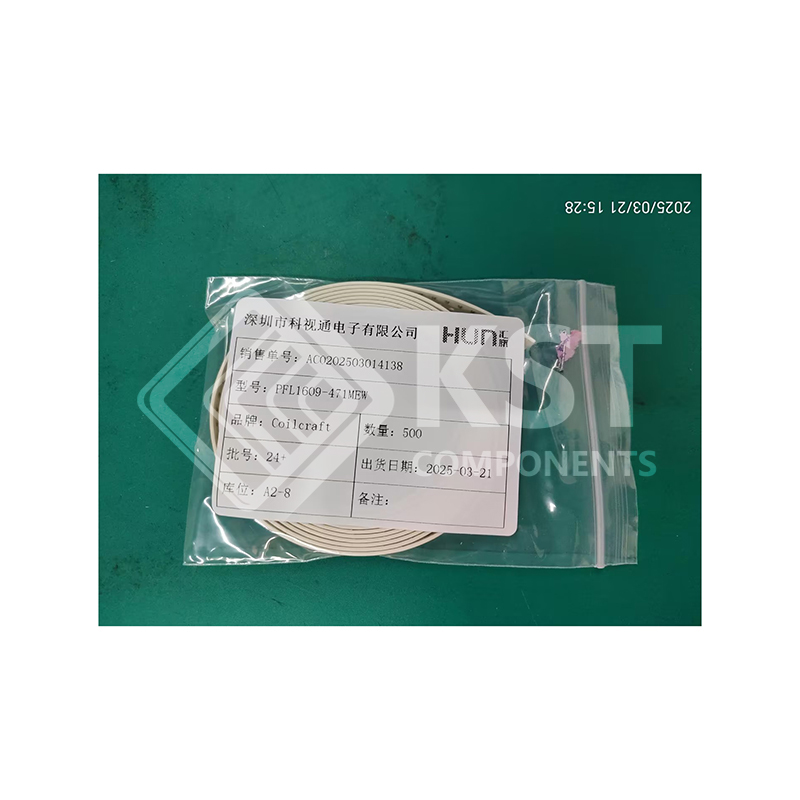

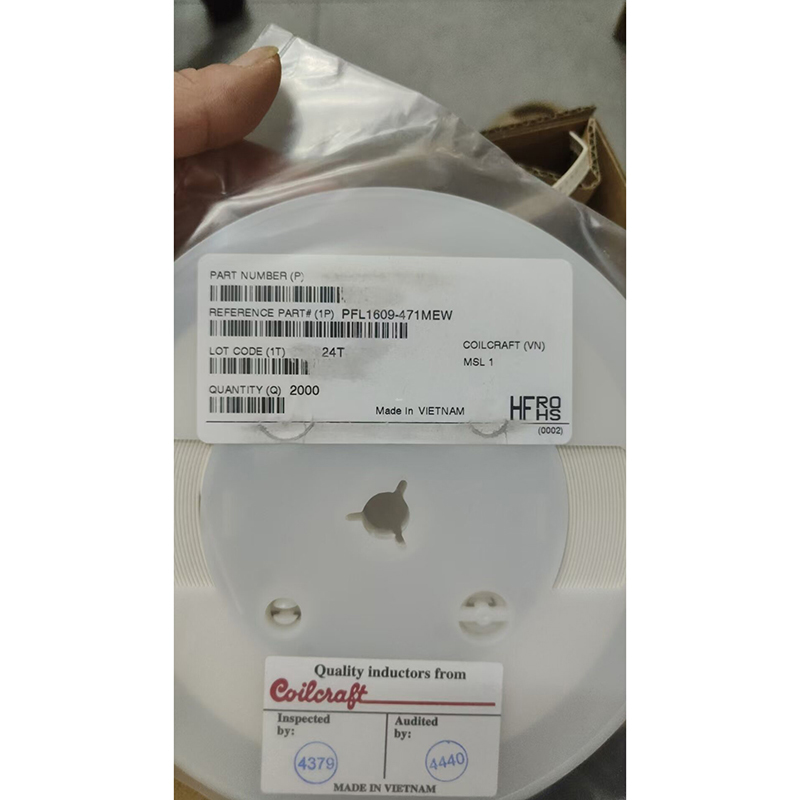

Packaging
|
Strip
|
|
|
Part Status
|
Active
|
|
|
Type
|
Molded
|
|
|
Material – Core
|
Metal Composite
|
|
|
Inductance
|
470 nH
|
|
|
Tolerance
|
±20%
|
|
|
Current Rating (Amps)
|
1 A
|
|
|
Current – Saturation (Isat)
|
760mA
|
|
|
Shielding
|
Shielded
|
|
|
DC Resistance (DCR)
|
100mOhm Max
|
|
|
Q @ Freq
|
–
|
|
|
Frequency – Self Resonant
|
650MHz
|
|
|
Ratings
|
AEC-Q200
|
|
|
Operating Temperature
|
-40°C ~ 140°C
|
|
|
Inductance Frequency – Test
|
7.9 MHz
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
Nonstandard
|
|
|
Supplier Device Package
|
–
|
|
|
Size / Dimension
|
0.071″ L x 0.042″ W (1.80mm x 1.07mm)
|
|
|
Height – Seated (Max)
|
0.038″ (0.97mm)
|
