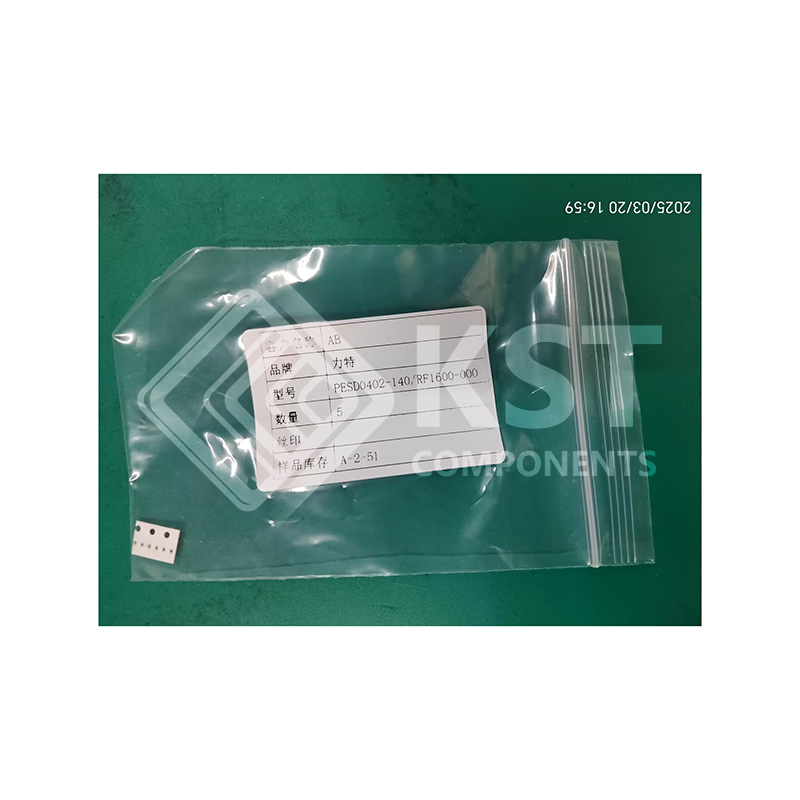

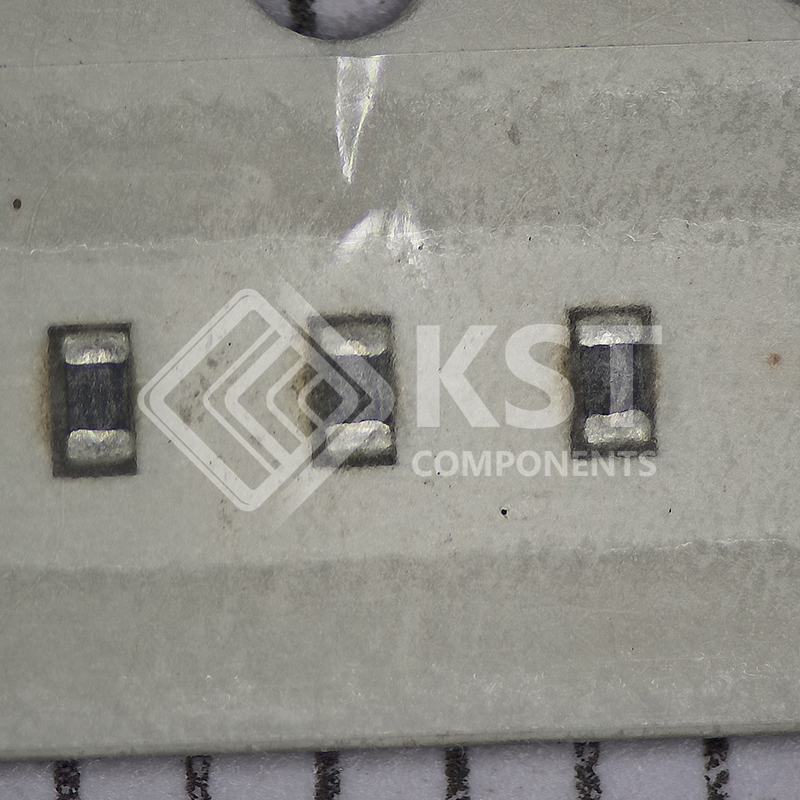

PESD0402-140
INQUIRY ONLINE
|
Category
|
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr
|
Littelfuse Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
–
|
|
|
Bidirectional Channels
|
1
|
|
|
Voltage – Reverse Standoff (Typ)
|
14V (Max)
|
|
|
Voltage – Breakdown (Min)
|
–
|
|
|
Voltage – Clamping (Max) @ Ipp
|
40V
|
|
|
Current – Peak Pulse (10/1000µs)
|
–
|
|
|
Power – Peak Pulse
|
–
|
|
|
Power Line Protection
|
No
|
|
|
Applications
|
Ethernet, HDMI
|
|
|
Capacitance @ Frequency
|
–
|
|
|
Operating Temperature
|
-55°C ~ 125°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
0402 (1005 Metric)
|
|
|
Supplier Device Package
|
0402
|
