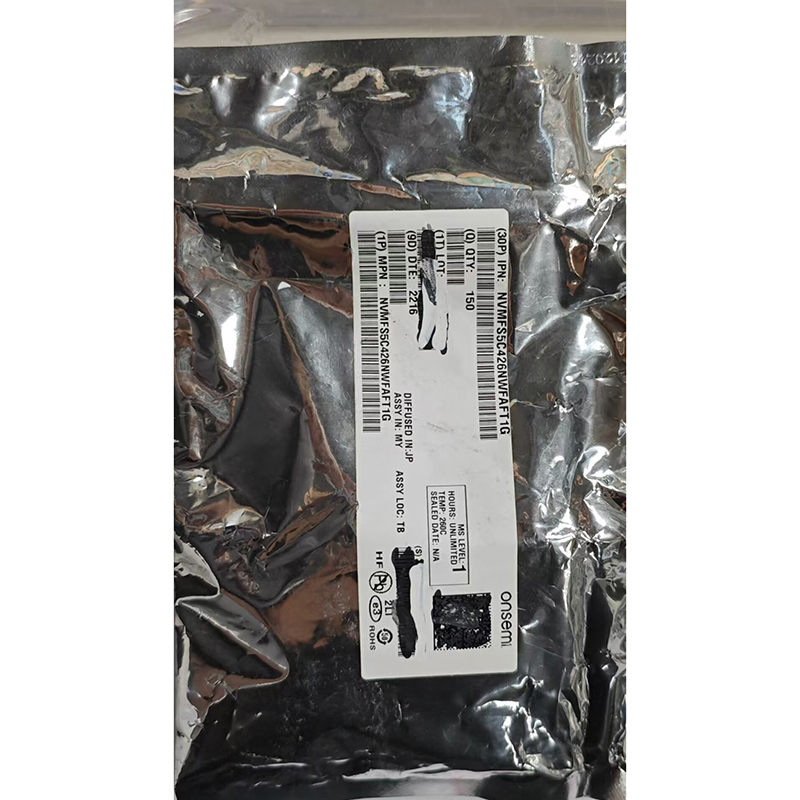

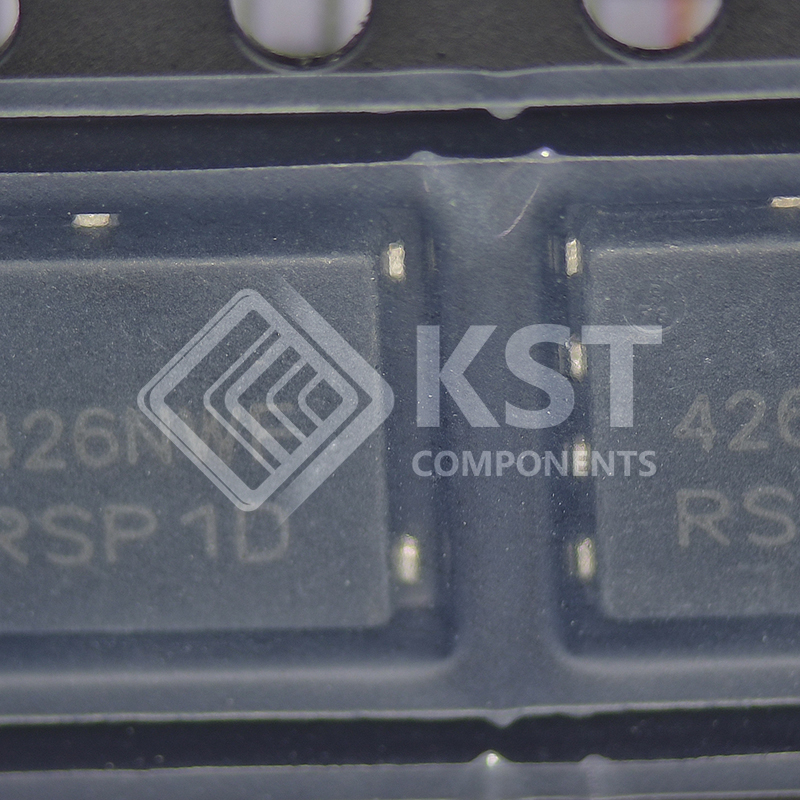

NVMFS5C426NWFAFT1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|

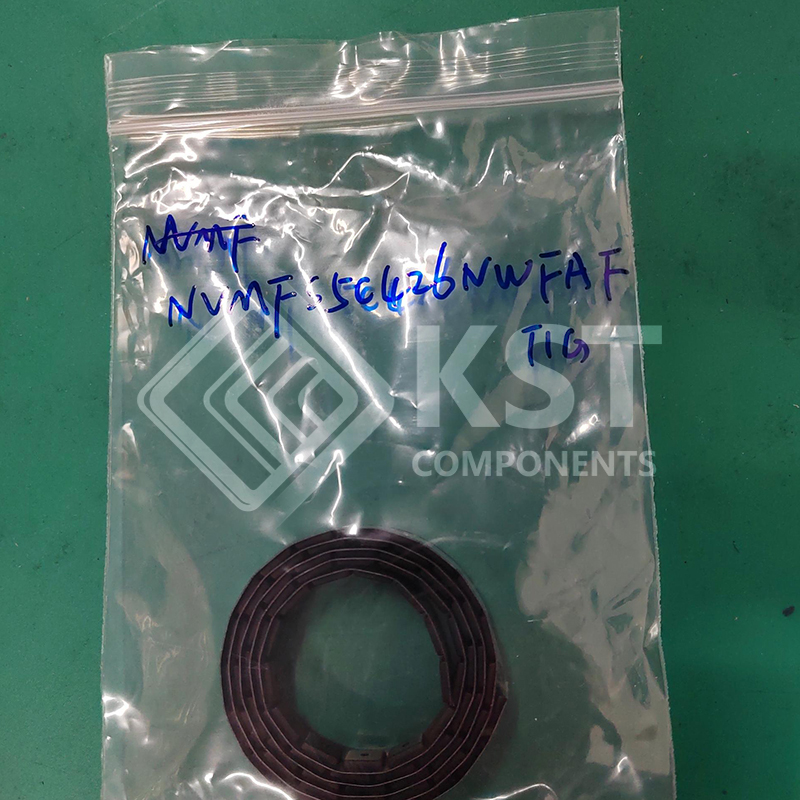

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
40 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
41A (Ta), 235A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
1.3mOhm @ 50A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
3.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
65 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
4300 pF @ 25 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
3.8W (Ta), 128W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q101
|
|
|
Mounting Type
|

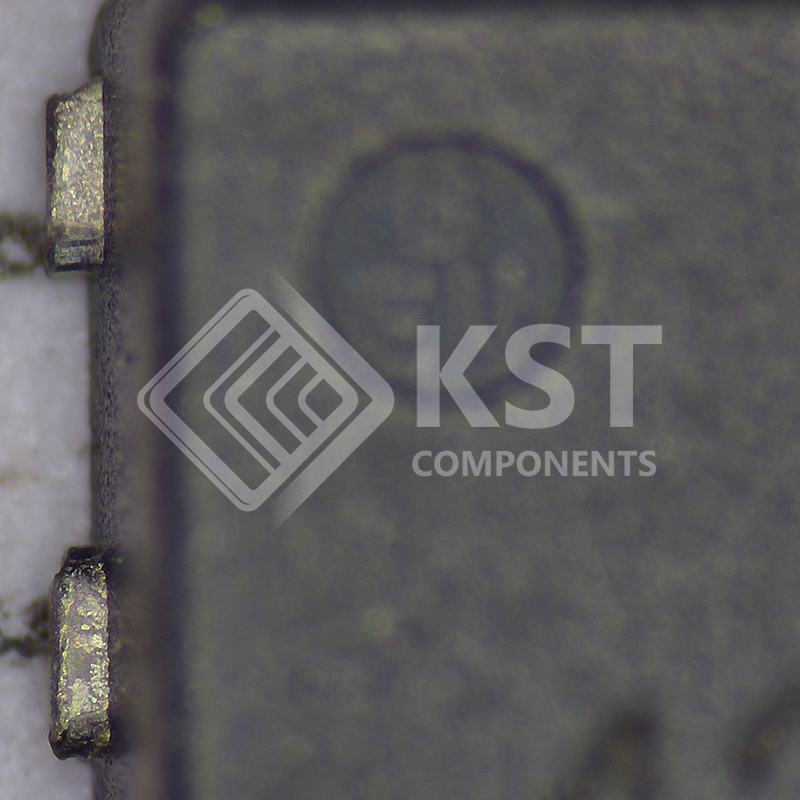

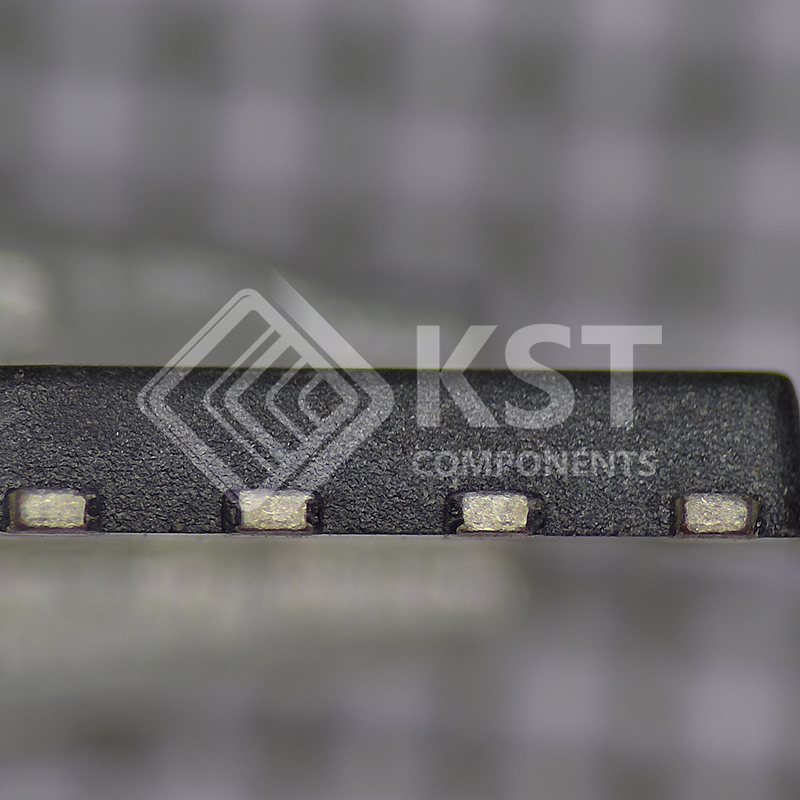

Surface Mount, Wettable Flank
|
|
|
Supplier Device Package
|

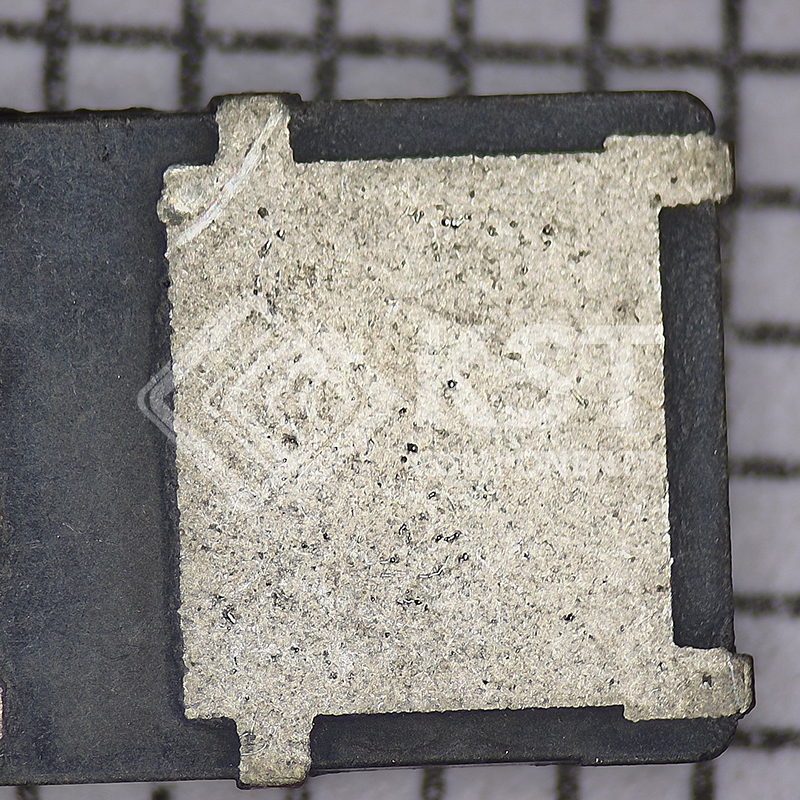

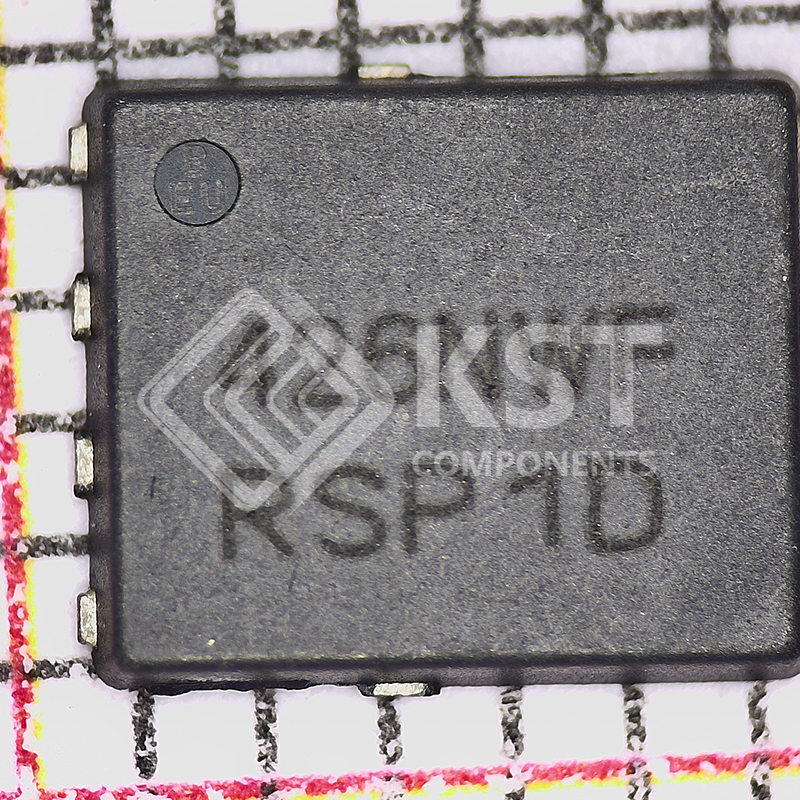

5-DFNW (4.9×5.9) (8-SOFL-WF)
|
|
|
Package / Case
|
8-PowerTDFN, 5 Leads
|
|
|
Base Product Number
|
NVMFS5
|
