NFL21SP106X1C3D
INQUIRY ONLINE
|
Category
|
Filters
EMI/RFI Filters (LC, RC Networks)
|
|
|
Manufacturer
|
onsemi
|
|
|
Series
|
–
|
|
|

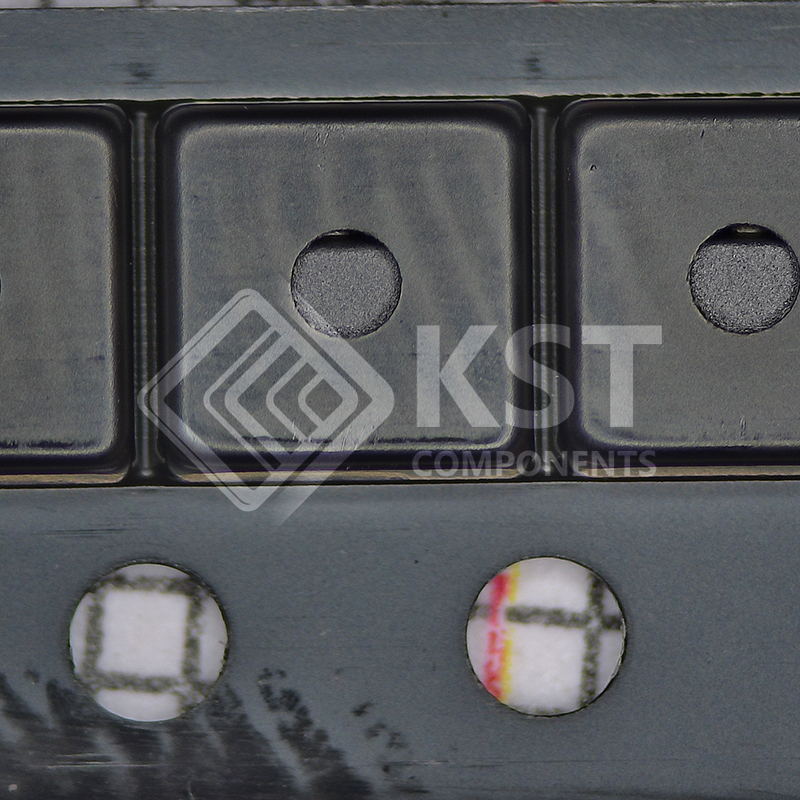

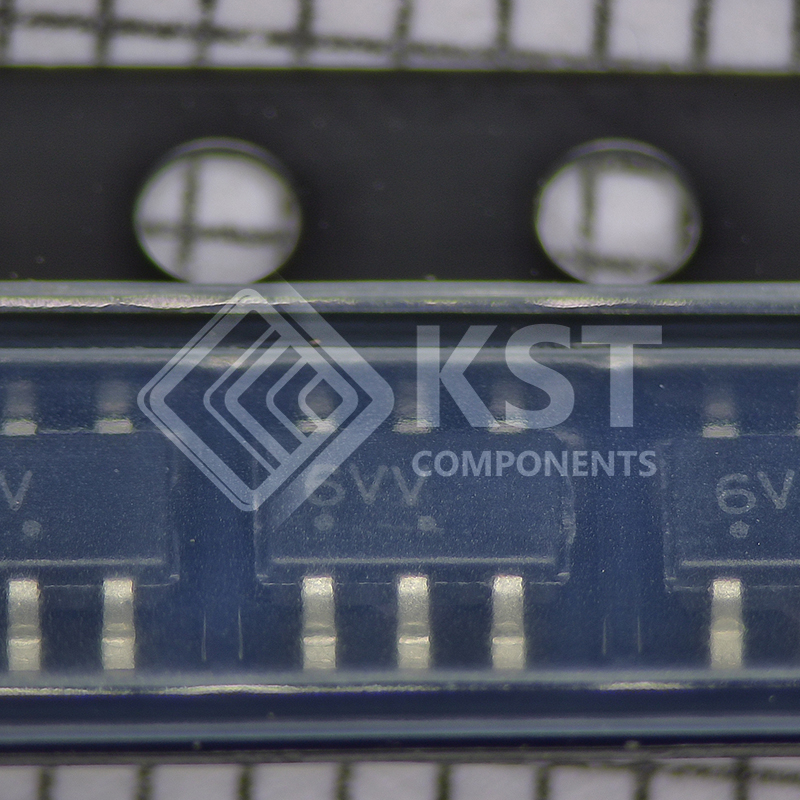

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Low Pass
|
|
|
Filter Order
|
2nd
|
|
|
Technology
|
RC (Pi)
|
|
|
Number of Channels
|
3
|
|
|
Center / Cutoff Frequency
|
–
|
|
|
Attenuation Value
|
–
|
|
|
Resistance – Channel (Ohms)
|
30
|
|
|
Values
|
R = 30Ohms, C = 55pF (Total)
|
|
|
ESD Protection
|
Yes
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Applications
|
USB
|
|
|
Voltage – Rated
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|

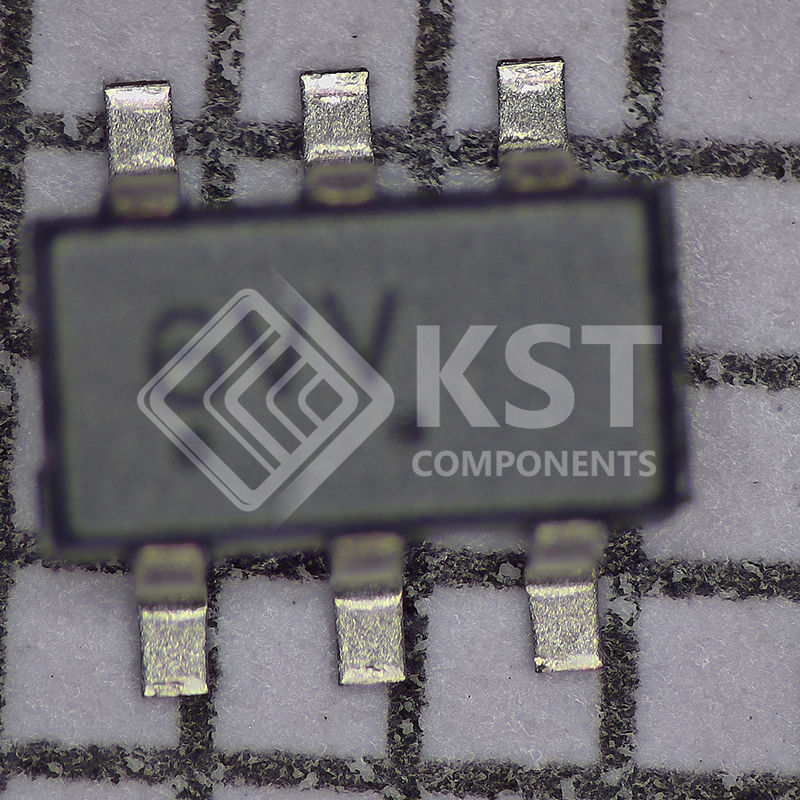

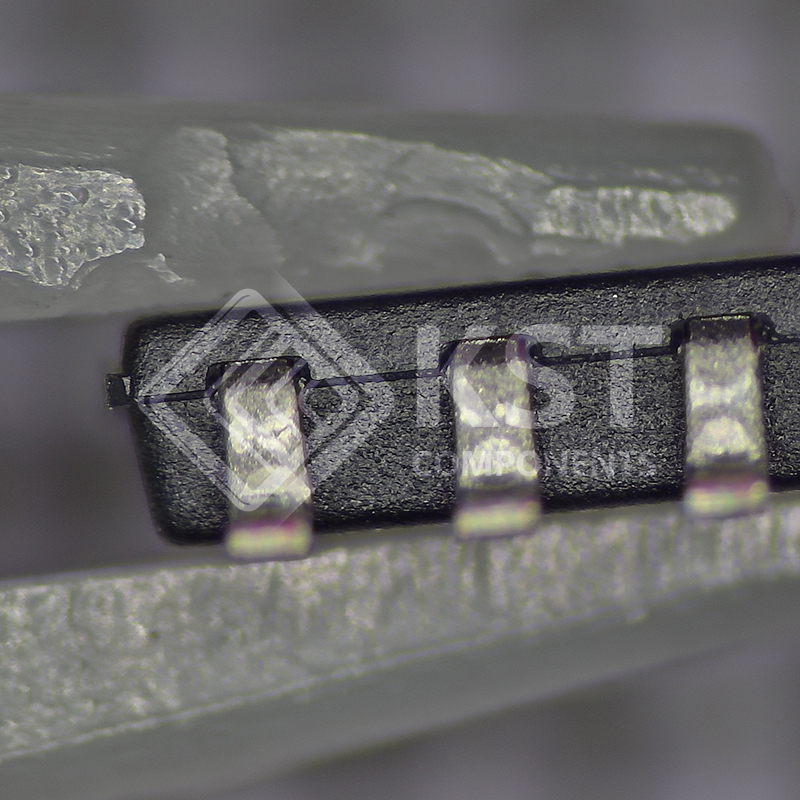

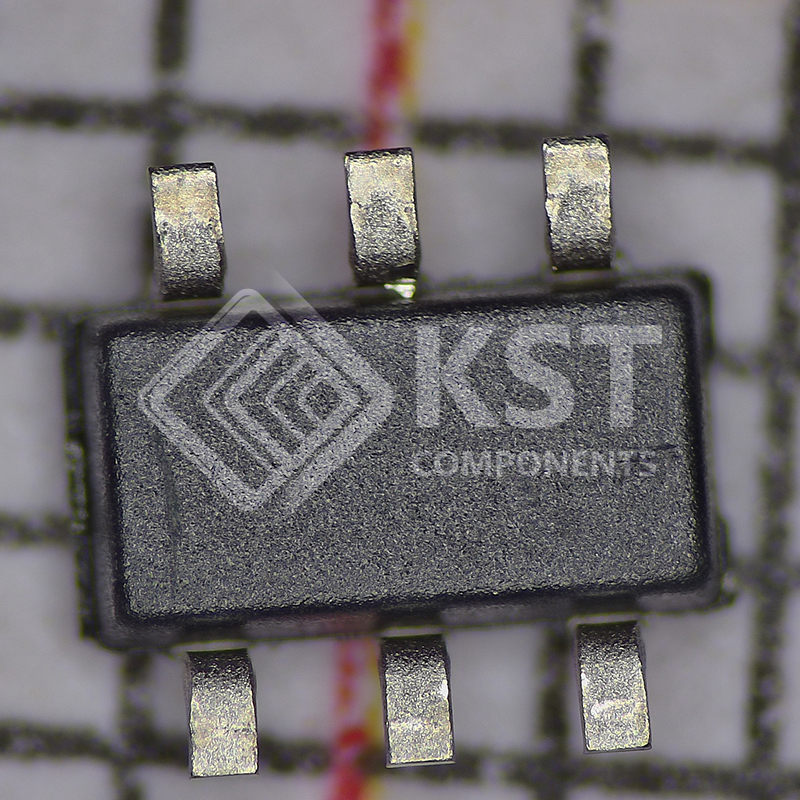

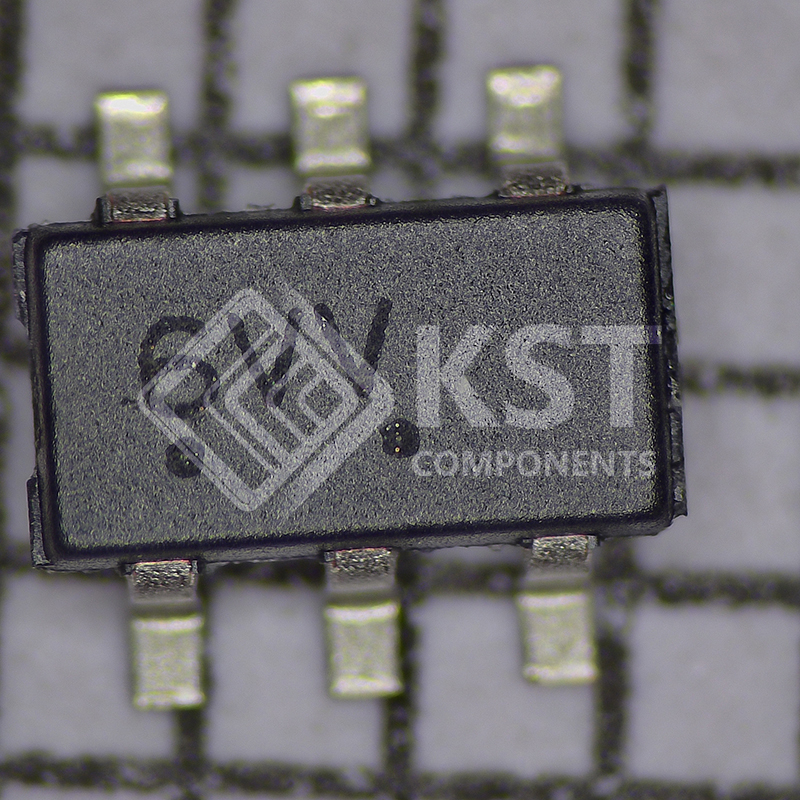

Package / Case
|
SC-74, SOT-457
|
|
|
Size / Dimension
|
0.118″ L x 0.059″ W (3.00mm x 1.50mm)
|
|
|
Height
|
0.043″ (1.09mm)
|
|
|
Base Product Number
|
NUF2101
|
