MWSA0603S-R47MT
INQUIRY ONLINE
| Mfr | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSA-S |

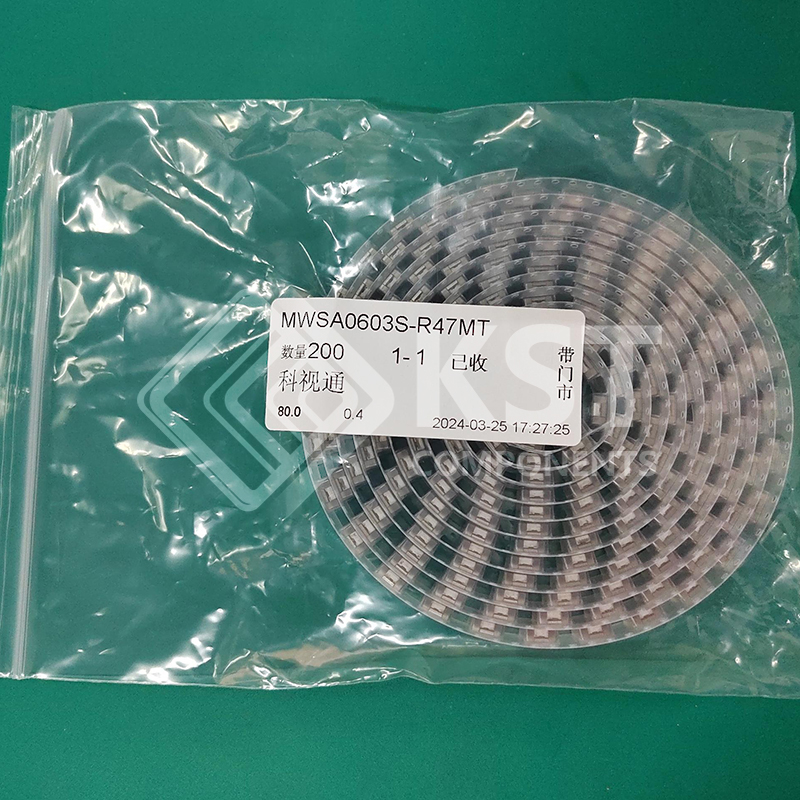

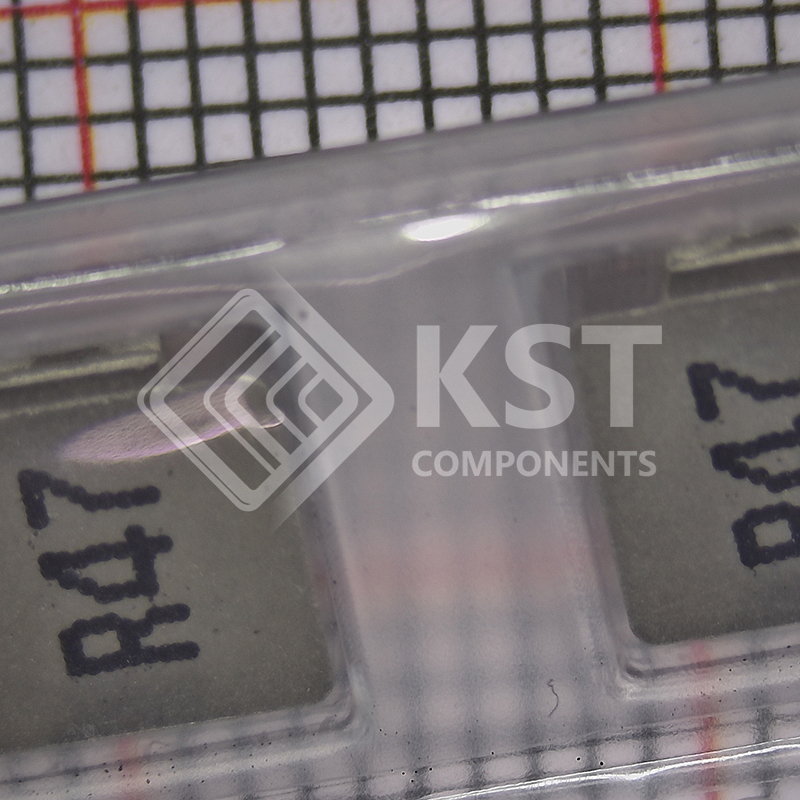

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material – Core | Alloy Powder |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current – Saturation (Isat) | 20A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.1mOhm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | – |
| Ratings | – |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency – Test | 100 kHz |
| Features | – |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | – |

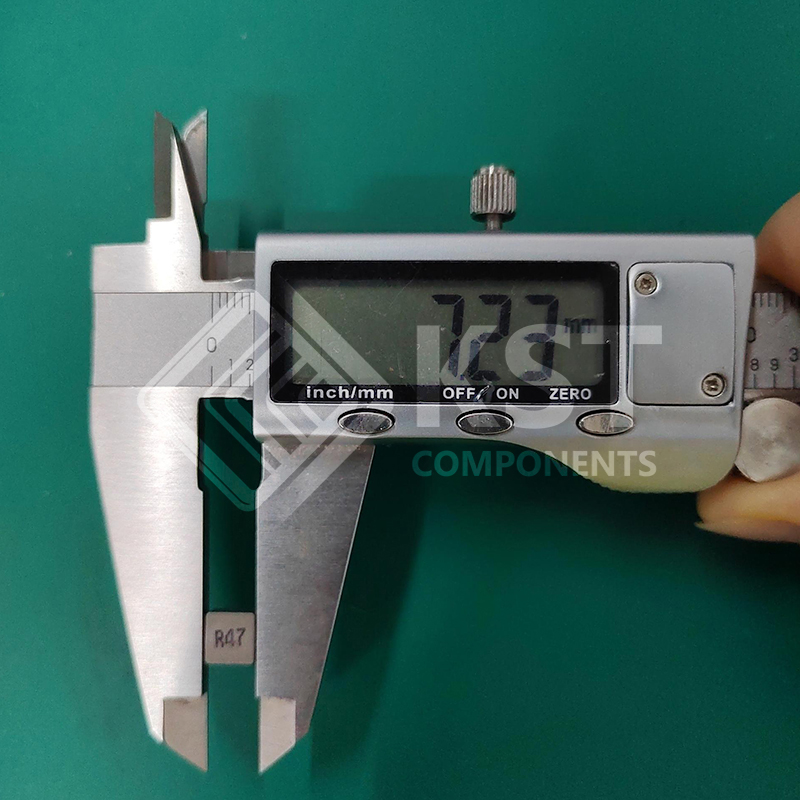

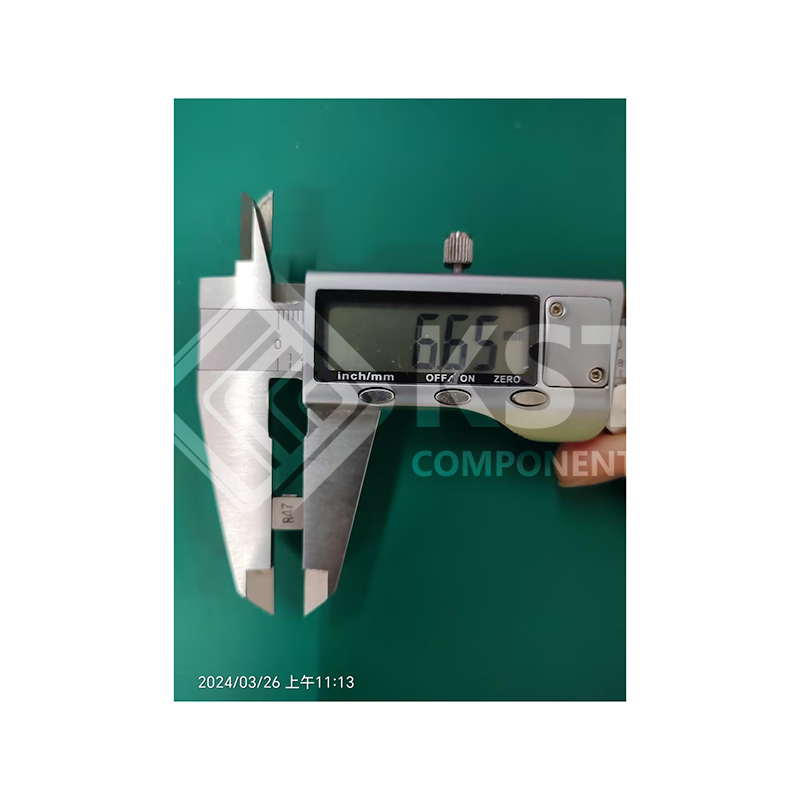

| Size / Dimension | 0.276″ L x 0.260″ W (7.00mm x 6.60mm) |

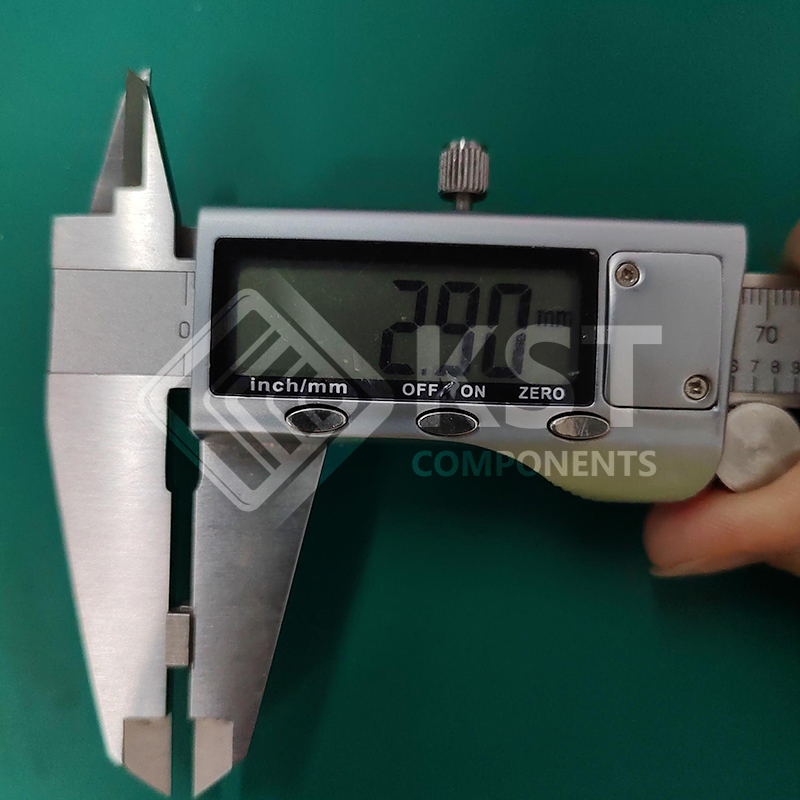

| Height – Seated (Max) | 0.118″ (3.00mm) |
| Base Product Number | MWSA0603S |
