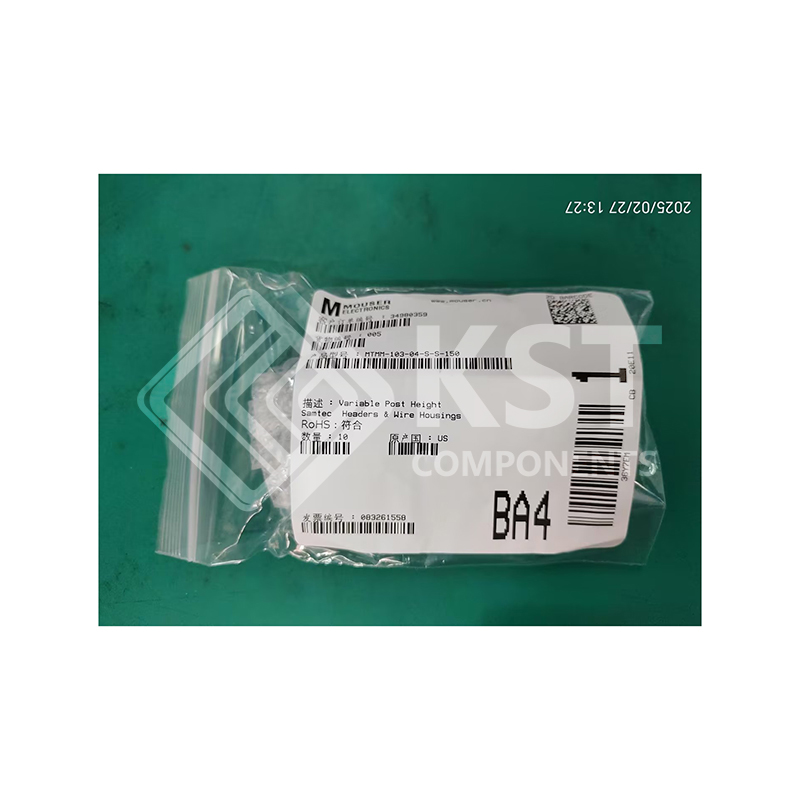

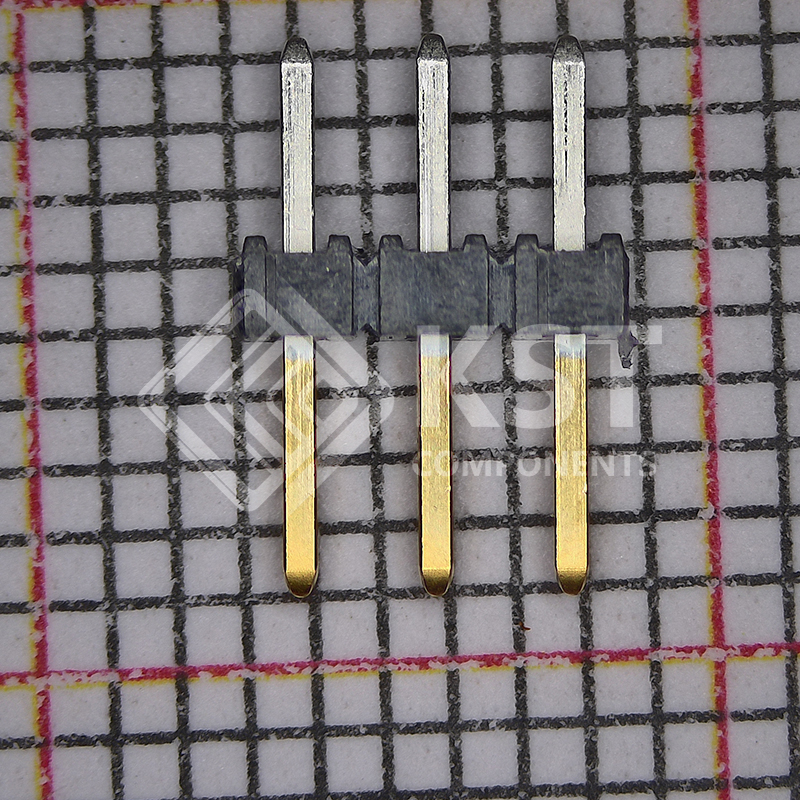

MTMM-103-04-S-S-150
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr
|
Samtec Inc.
|
|
|
Series
|
MTMM
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Header, Cuttable
|
|
|
Contact Type
|
Male Pin
|
|
|
Pitch – Mating
|
0.079″ (2.00mm)
|
|
|
Number of Positions
|
3
|
|
|
Number of Rows
|
1
|
|
|
Row Spacing – Mating
|
–
|
|
|
Number of Positions Loaded
|
All
|
|
|
Style
|
Board to Board or Cable
|
|
|
Shrouding
|
Unshrouded
|
|
|
Mounting Type
|
Through Hole
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Push-Pull
|
|
|
Contact Length – Mating
|
0.150″ (3.81mm)
|
|
|
Contact Length – Post
|
0.114″ (2.90mm)
|
|
|
Overall Contact Length
|
0.323″ (8.20mm)
|
|
|
Insulation Height
|
0.059″ (1.50mm)
|
|
|
Contact Shape
|
Square
|
|
|
Contact Finish – Mating
|
Gold
|
|
|
Contact Finish Thickness – Mating
|
30.0µin (0.76µm)
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Contact Material
|
Phosphor Bronze
|
|
|
Insulation Material
|
Liquid Crystal Polymer (LCP)
|
|
|
Features
|
–
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Insulation Color
|
Black
|
|
|
Current Rating (Amps)
|
3A
|
|
|
Voltage Rating
|
–
|
|
|
Mated Stacking Heights
|
–
|
|
|
Contact Finish Thickness – Post
|
–
|
|
|
Applications
|
–
|
|
|
Base Product Number
|
MTMM-103
|
