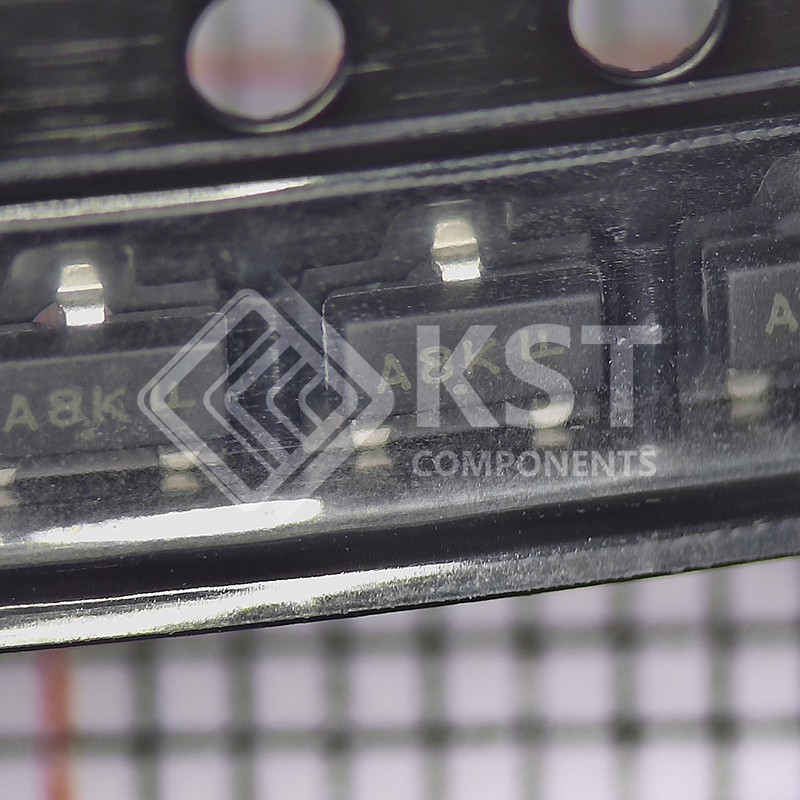

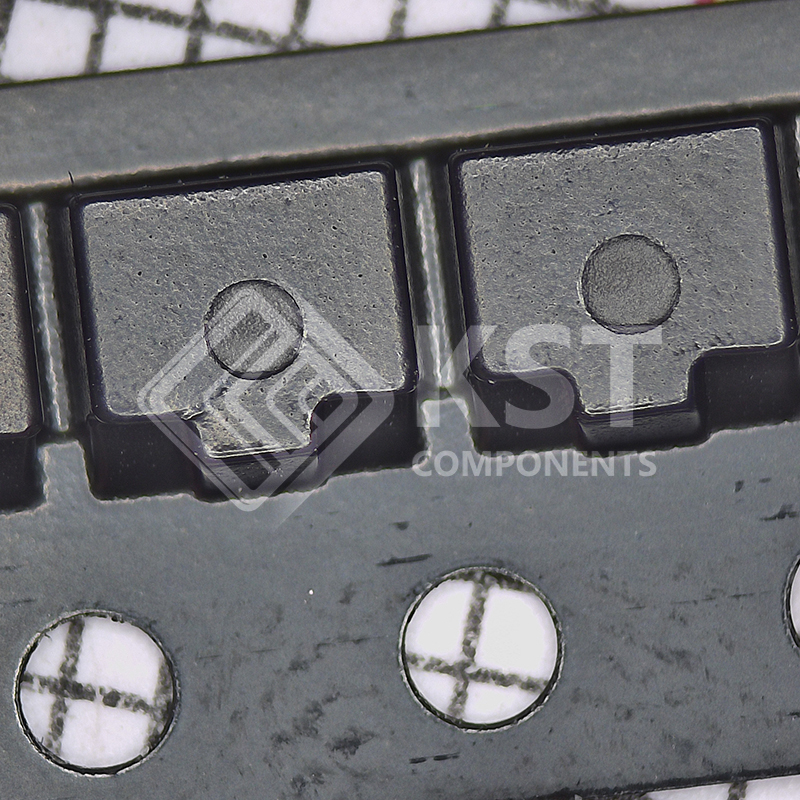

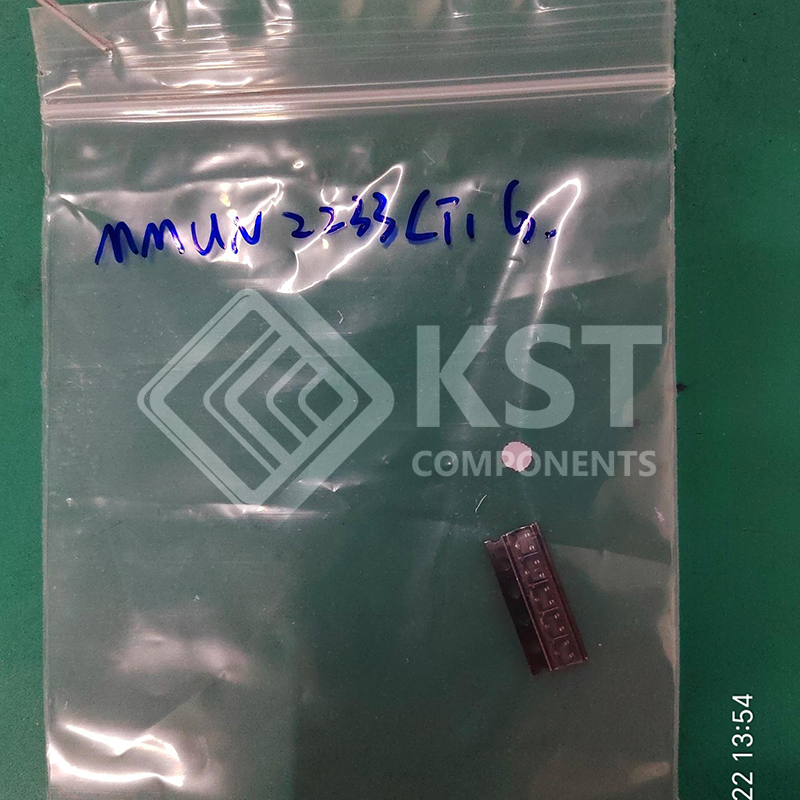

MMUN2233LT1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single, Pre-Biased Bipolar Transistors
|
|
|
Manufacturer
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Transistor Type
|
NPN – Pre-Biased
|
|
|
Current – Collector (Ic) (Max)
|
100 mA
|
|
|
Voltage – Collector Emitter Breakdown (Max)
|
50 V
|
|
|
Resistors Included
|
R1 and R2
|
|
|
Resistor – Base (R1)
|
4.7 kOhms
|
|
|
Resistor – Emitter Base (R2)
|
47 kOhms
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
80 @ 5mA, 10V
|
|
|
Vce Saturation (Max) @ Ib, Ic
|
250mV @ 300µA, 10mA
|
|
|
Current – Collector Cutoff (Max)
|
500nA
|
|
|
Power – Max
|
246 mW
|
|
|
Grade
|
–
|
|
|
Qualification
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
SOT-23-3 (TO-236)
|
|
|
Base Product Number
|
MMUN2233
|
