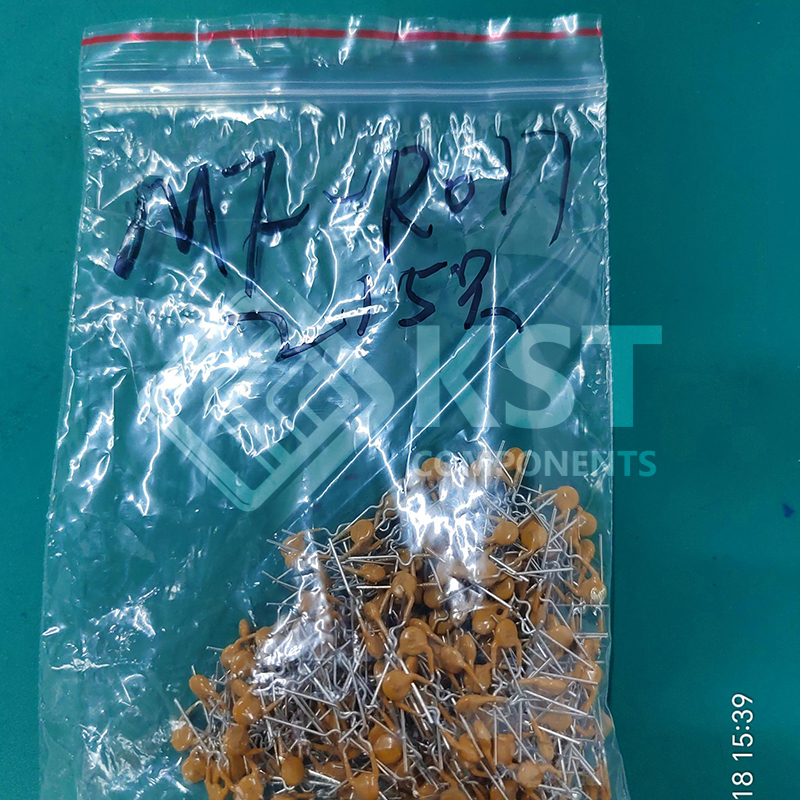

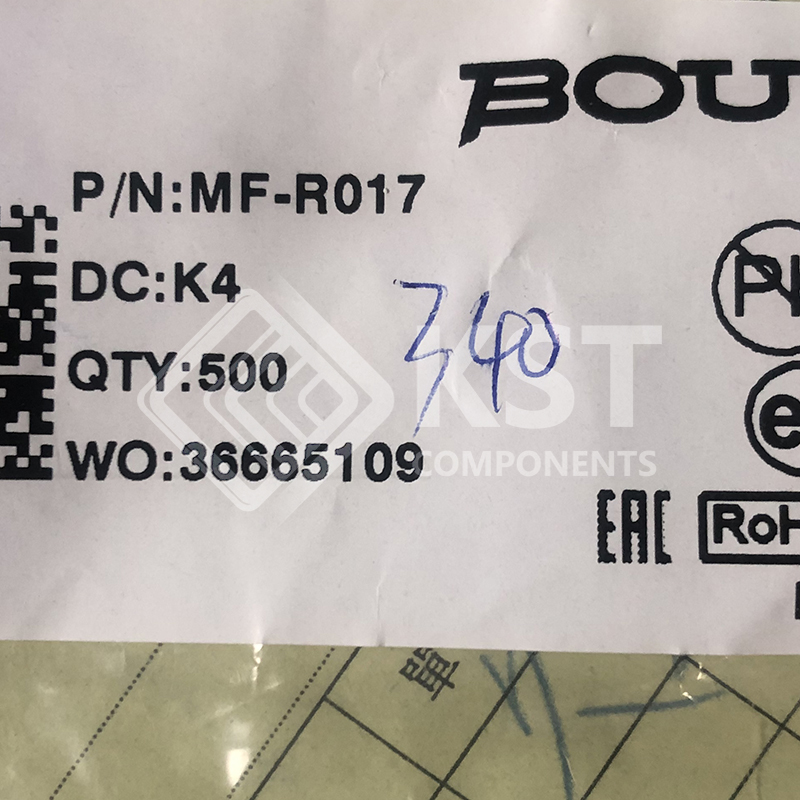

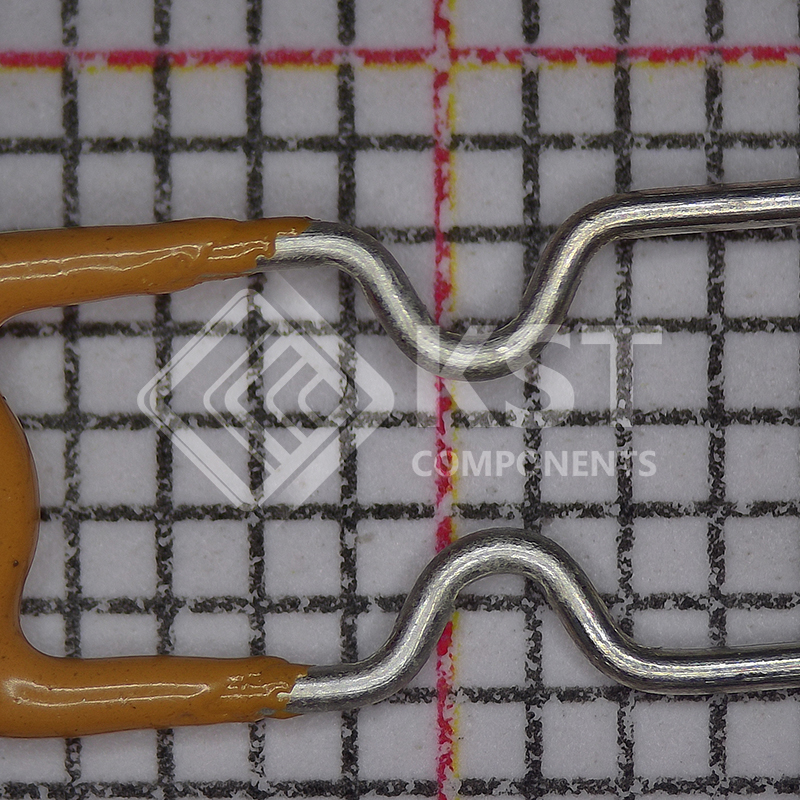

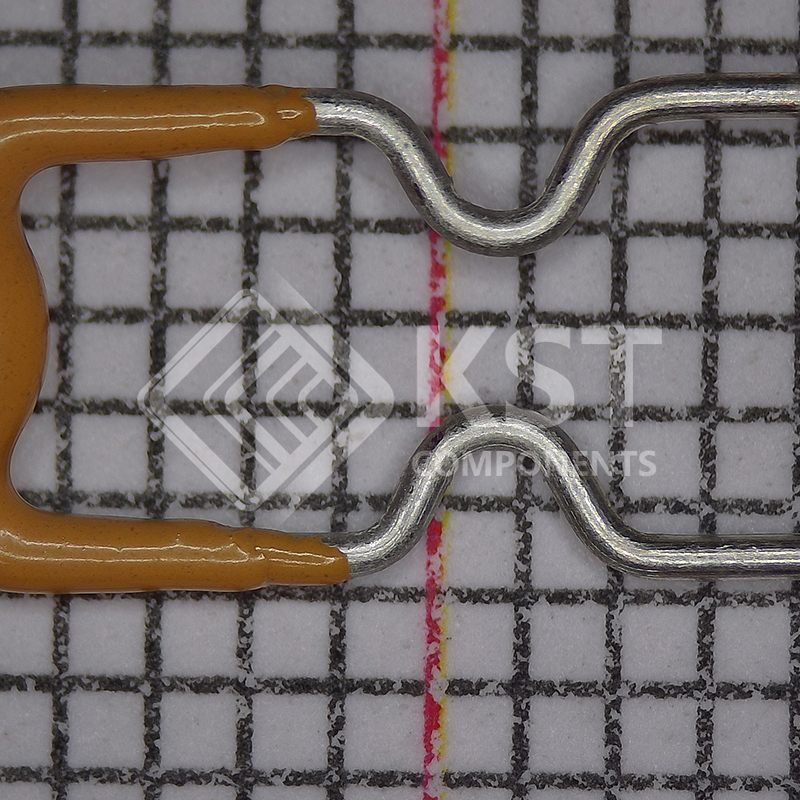

MF-R017
INQUIRY ONLINE
|
Category
|
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer
|
Bourns Inc.
|
|
|
Series
|
Multifuse®, MF-R
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Type
|
Polymeric
|
|
|
Voltage – Max
|
60V
|
|
|
Current – Hold (Ih) (Max)
|
170 mA
|
|
|
Current – Trip (It)
|
340 mA
|
|
|
Current – Max
|
40 A
|
|
|
Time to Trip
|
3 s
|
|
|
Resistance – Initial (Ri) (Min)
|
2 Ohms
|
|
|
Resistance – Post Trip (R1) (Max)
|
8 Ohms
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Ratings
|
–
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
Radial, Disc
|
|
|
Size / Dimension
|
0.291″ Dia x 0.122″ T (7.40mm x 3.10mm)
|
|
|
Height – Seated (Max)
|
0.500″ (12.70mm)
|
|
|
Thickness (Max)
|
–
|
|
|
Lead Spacing
|
0.201″ (5.10mm)
|
|
|
Approval Agency
|
cURus, TUV
|
|
|
Base Product Number
|
MF-R0
|
