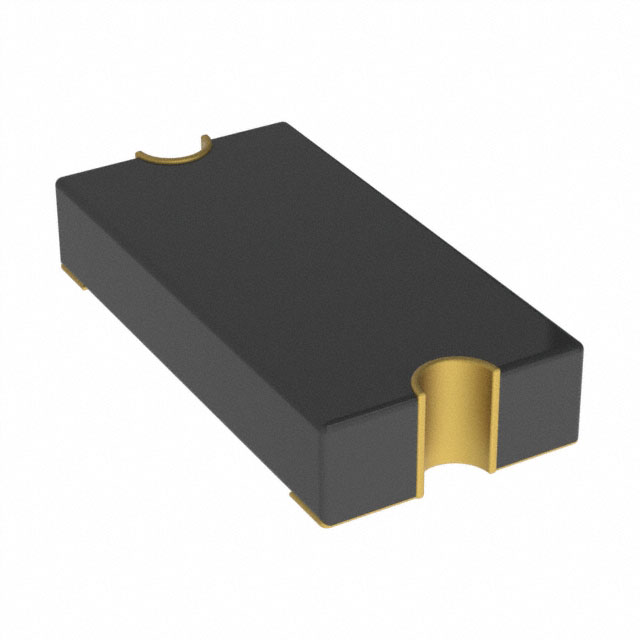

MF-NSMF020-2
INQUIRY ONLINE
|
Category
|
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer
|
Bourns Inc.
|
|
|
Series
|
Multifuse®, MF-NSMF
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Polymeric
|
|
|
Voltage – Max
|
24V
|
|
|
Current – Hold (Ih) (Max)
|
200 mA
|
|
|
Current – Trip (It)
|
460 mA
|
|
|
Current – Max
|
10 A
|
|
|
Time to Trip
|
600 ms
|
|
|
Resistance – Initial (Ri) (Min)
|
600 mOhms
|
|
|
Resistance – Post Trip (R1) (Max)
|
2.6 Ohms
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q200
|
|
|
Ratings
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
1206 (3216 Metric), Concave
|
|
|
Size / Dimension
|
0.126″ L x 0.063″ W (3.20mm x 1.60mm)
|
|
|
Height – Seated (Max)
|
–
|
|
|
Thickness (Max)
|
0.033″ (0.85mm)
|
|
|
Lead Spacing
|
–
|
|
|
Approval Agency
|
cUL, cURus, TUV
|
|
|
Base Product Number
|
MF-NSMF
|
