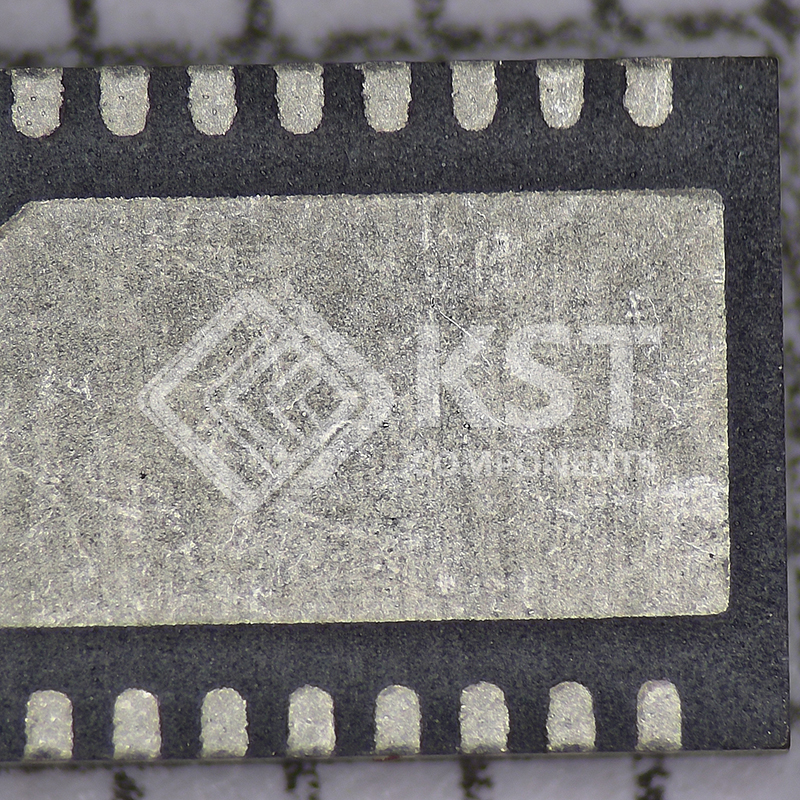

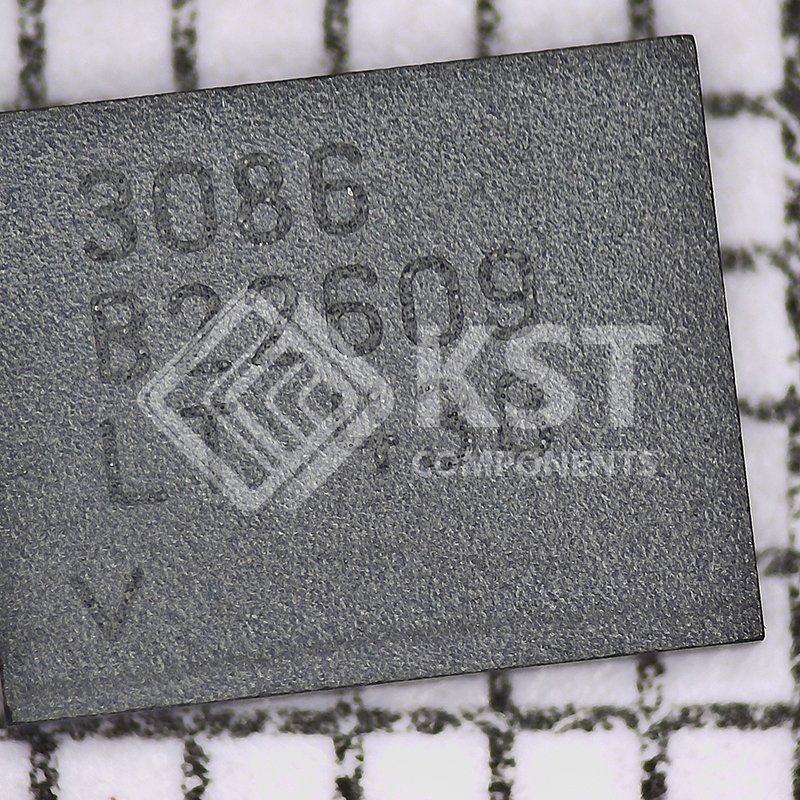

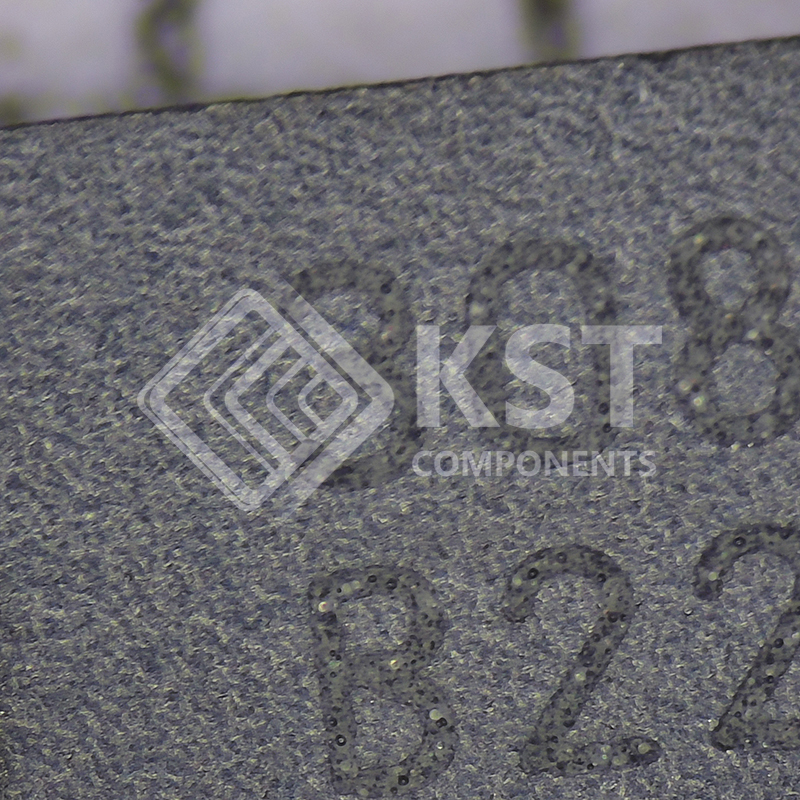

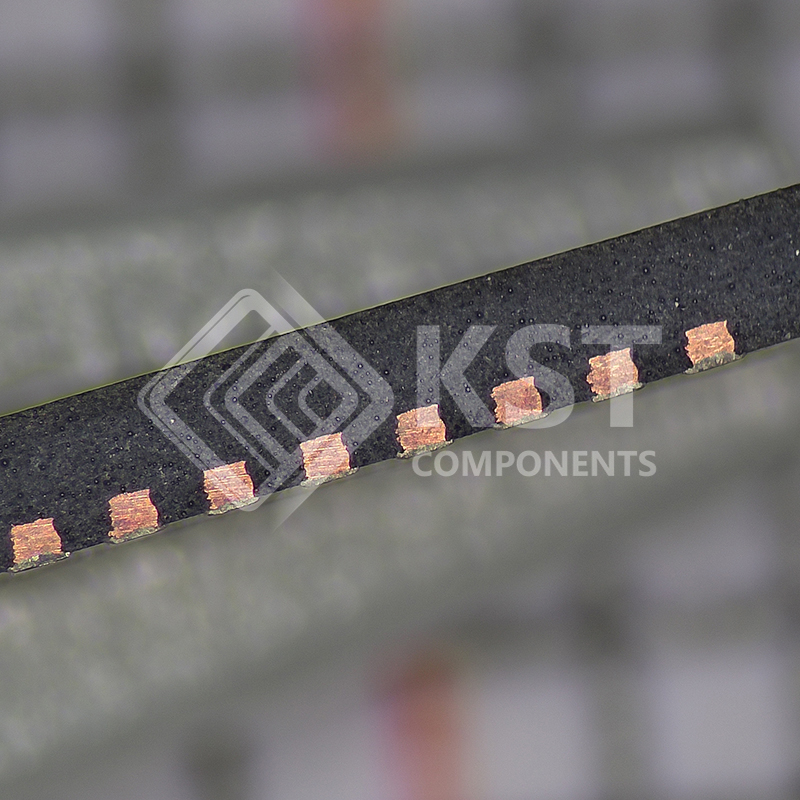

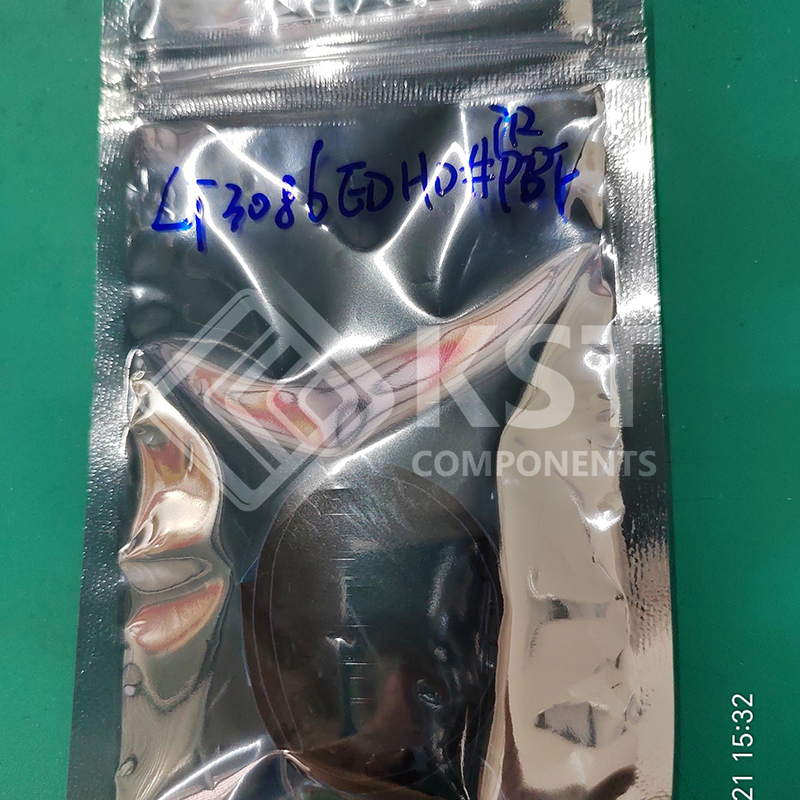

LT3086EDHD#TRPBF
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Analog Devices Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
40V
|
|
|
Voltage – Output (Min/Fixed)
|
0.4V
|
|
|
Voltage – Output (Max)
|
32V
|
|
|
Voltage Dropout (Max)
|
0.54V @ 2.1A
|
|
|
Current – Output
|
2.1A
|
|
|
Current – Quiescent (Iq)
|
2.4 mA
|
|
|
Current – Supply (Max)
|
88 mA
|
|
|
PSRR
|
80dB (120Hz)
|
|
|
Control Features
|
Current Limit, Enable, Power Good, Tracking
|
|
|
Protection Features
|
Over Current, Over Temperature, Reverse Polarity
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-WFDFN Exposed Pad
|
|
|
Supplier Device Package
|
16-DFN (5×4)
|
|
|
Base Product Number
|
LT3086
|
