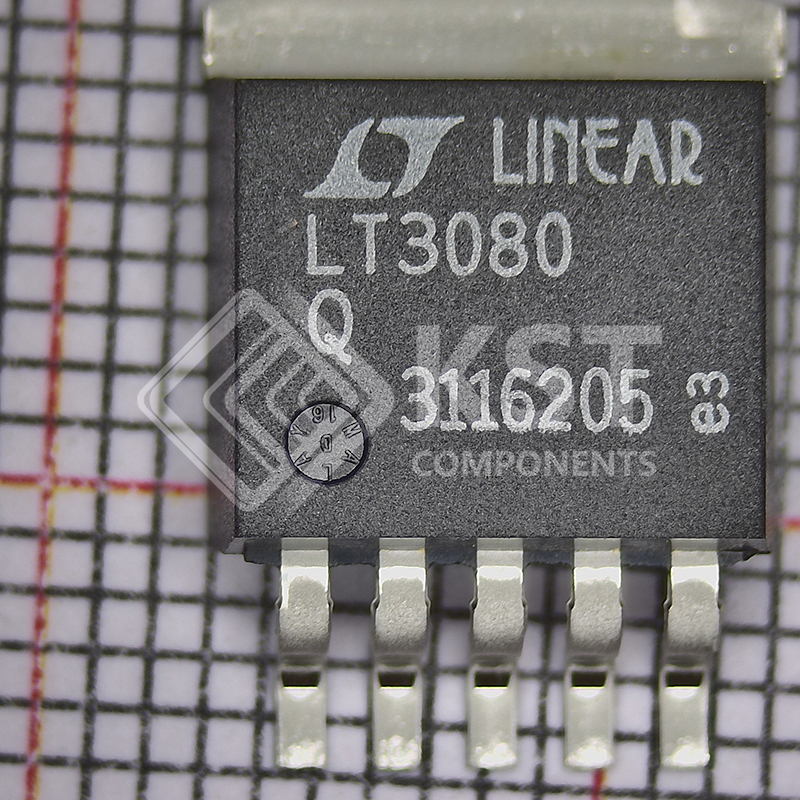

LT3080EQ#TRPBF
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Analog Devices Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
36V
|
|
|
Voltage – Output (Min/Fixed)
|
0V
|
|
|
Voltage – Output (Max)
|
36V
|
|
|
Voltage Dropout (Max)
|
1.6V @ 1.1A
|
|
|
Current – Output
|
1.1A
|
|
|
Current – Quiescent (Iq)
|
500 µA
|
|
|
Current – Supply (Max)
|
30 mA
|
|
|
PSRR
|
75db ~ 20dB (120Hz ~ 1MHz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
|
|
|
Supplier Device Package
|
DDPAK-5
|
|
|
Base Product Number
|
LT3080
|
