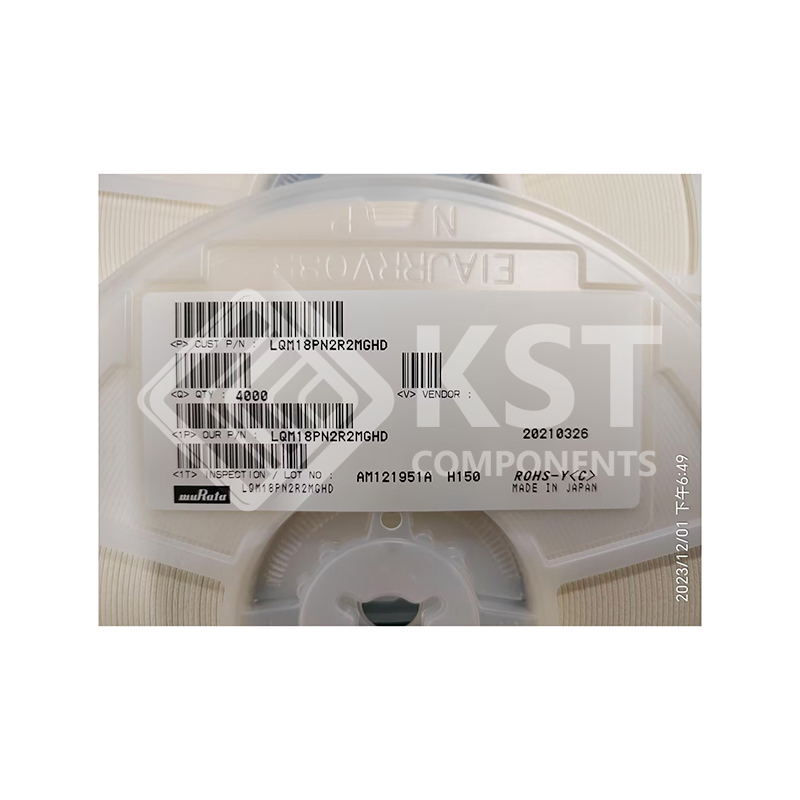

LQM18PN2R2MGHD
INQUIRY ONLINE
| Mfr | Murata Electronics |
| Series | LQM18 |

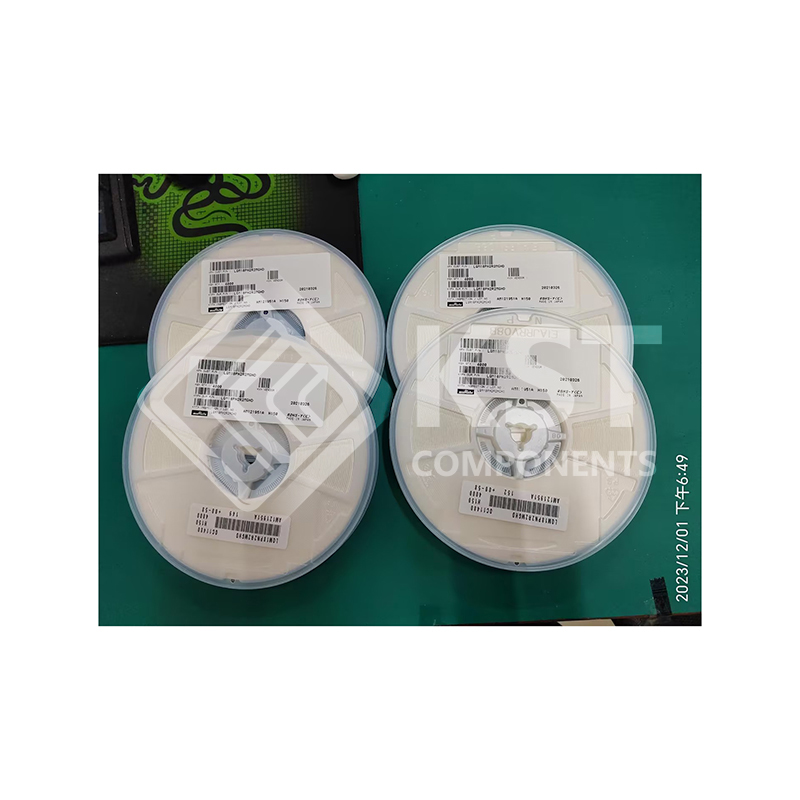

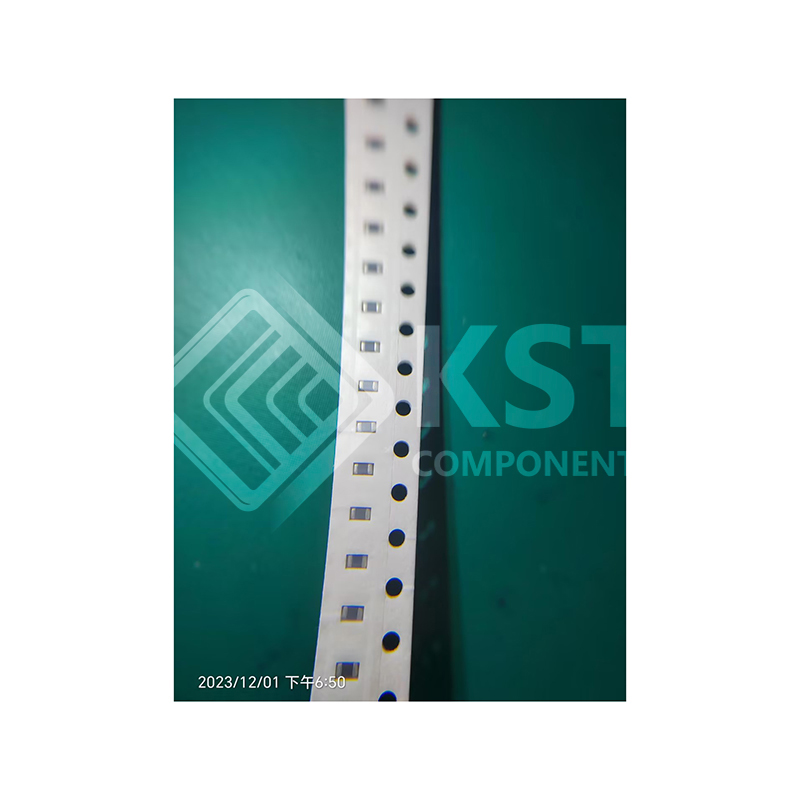

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Multilayer |
| Material – Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.05 A |
| Current – Saturation (Isat) | 250mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | 70MHz |
| Ratings | – |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency – Test | 1 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063″ L x 0.031″ W (1.60mm x 0.80mm) |
| Height – Seated (Max) | 0.039″ (1.00mm) |
| Base Product Number | LQM18PN |
