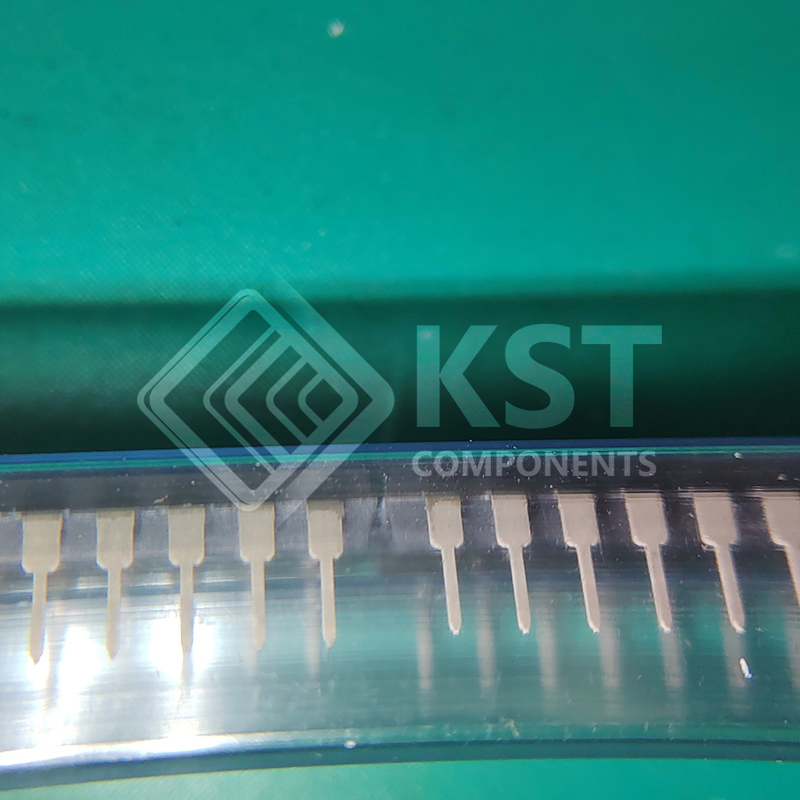

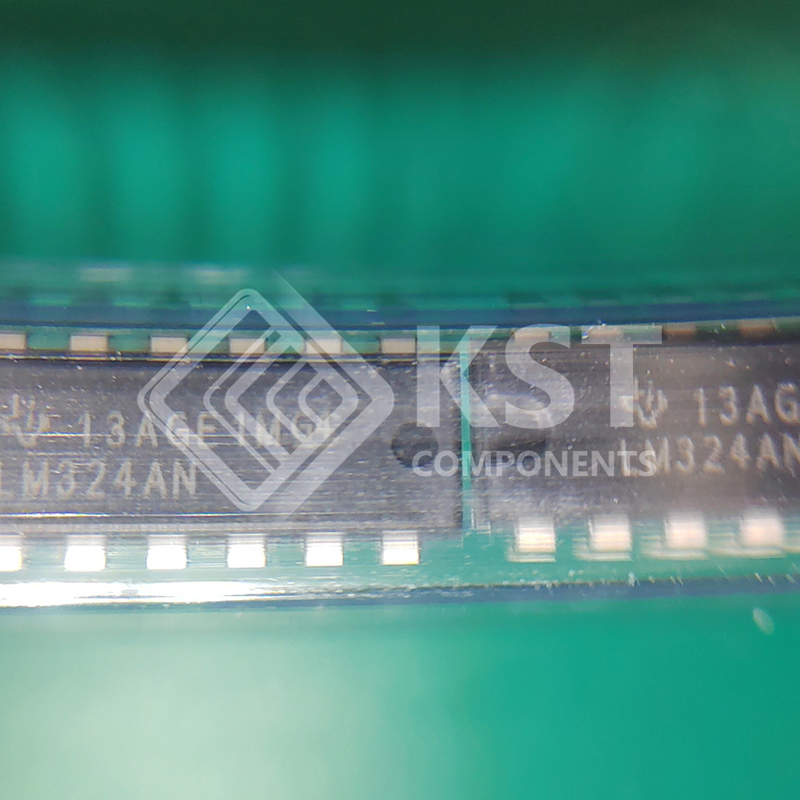

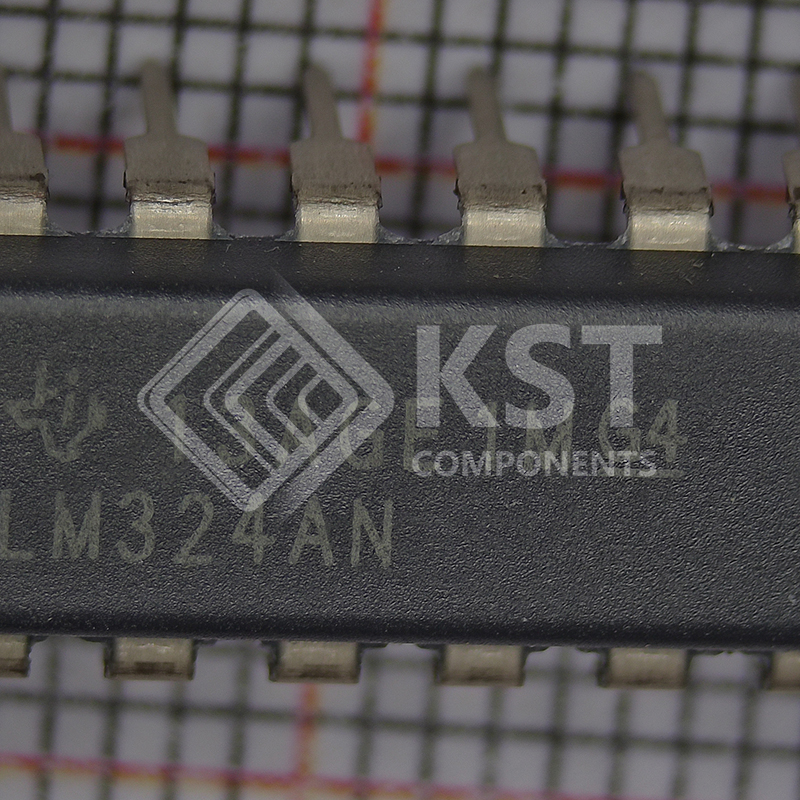

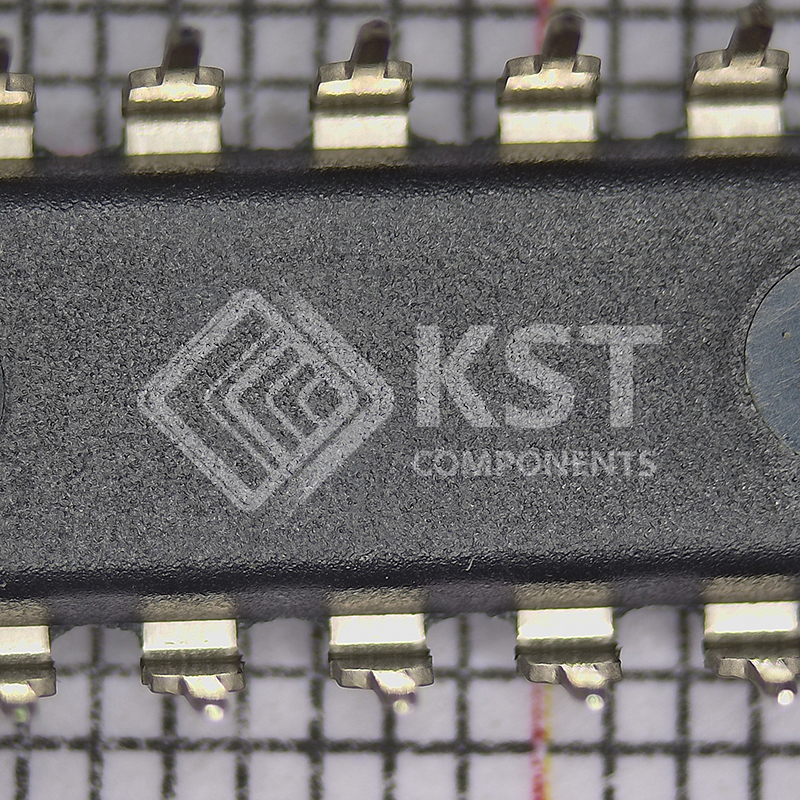

LM324AN
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, Op Amps, Buffer Amps
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
LinCMOS™
|
|
|
Packaging
|

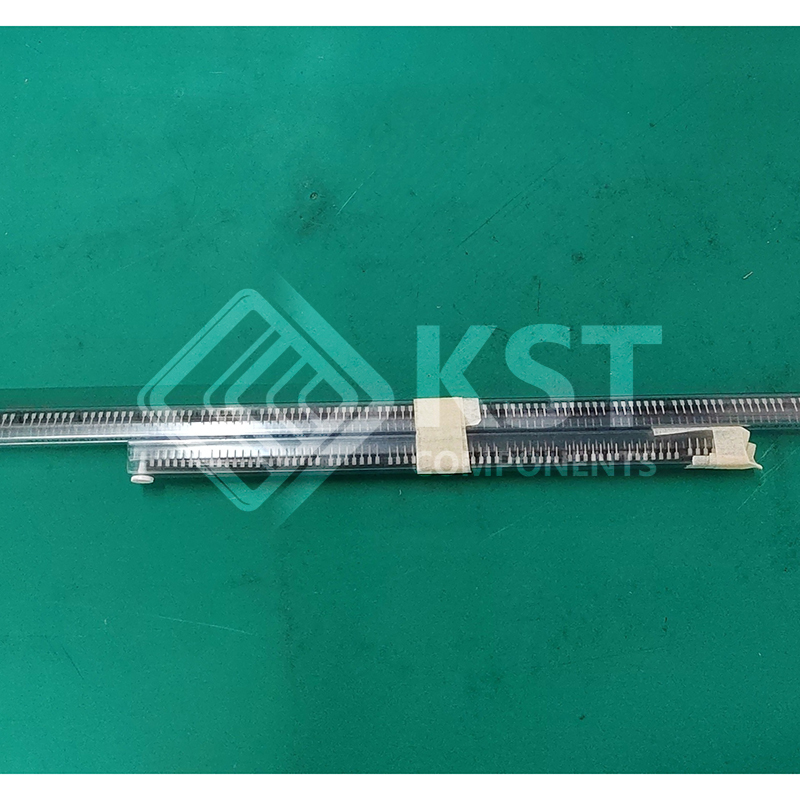

Tube
|
|
|
Part Status
|
Active
|
|
|
Amplifier Type
|
Standard (General Purpose)
|
|
|
Number of Circuits
|
4
|
|
|
Output Type
|
–
|
|
|
Slew Rate
|
–
|
|
|
Gain Bandwidth Product
|
1 MHz
|
|
|
Current – Input Bias
|
45 nA
|
|
|
Voltage – Input Offset
|
2 mV
|
|
|
Current – Supply
|
1.5mA
|
|
|
Current – Output / Channel
|
40 mA
|
|
|
Voltage – Supply Span (Min)
|
3 V
|
|
|
Voltage – Supply Span (Max)
|
32 V
|
|
|
Operating Temperature
|
0°C ~ 70°C (TJ)
|
|
|
Mounting Type
|

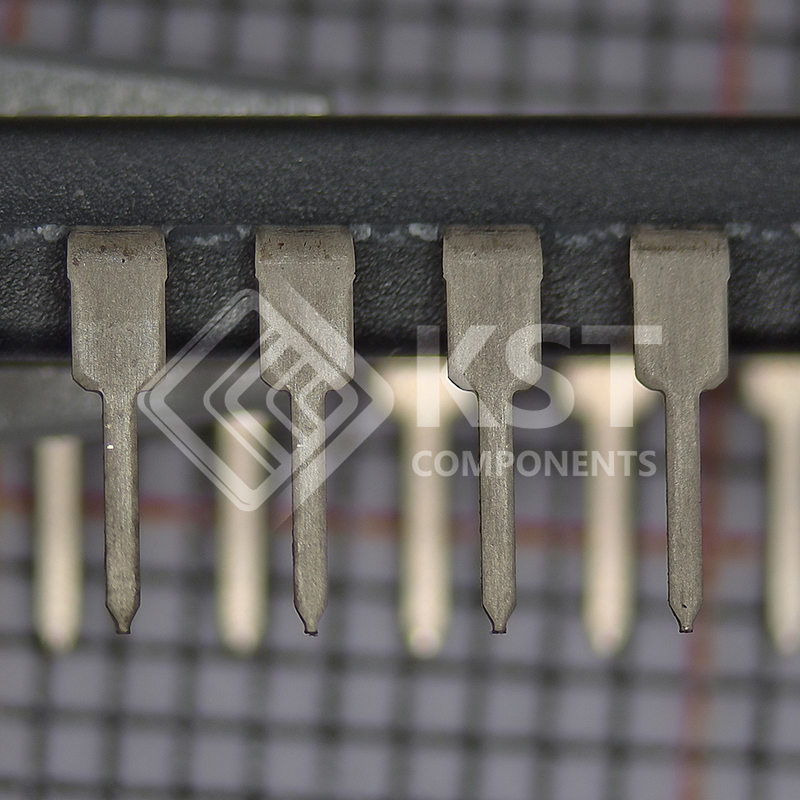

Through Hole
|
|
|
Package / Case
|
14-DIP (0.300″, 7.62mm)
|
|
|
Supplier Device Package
|
14-PDIP
|
|
|
Base Product Number
|
LM324
|
