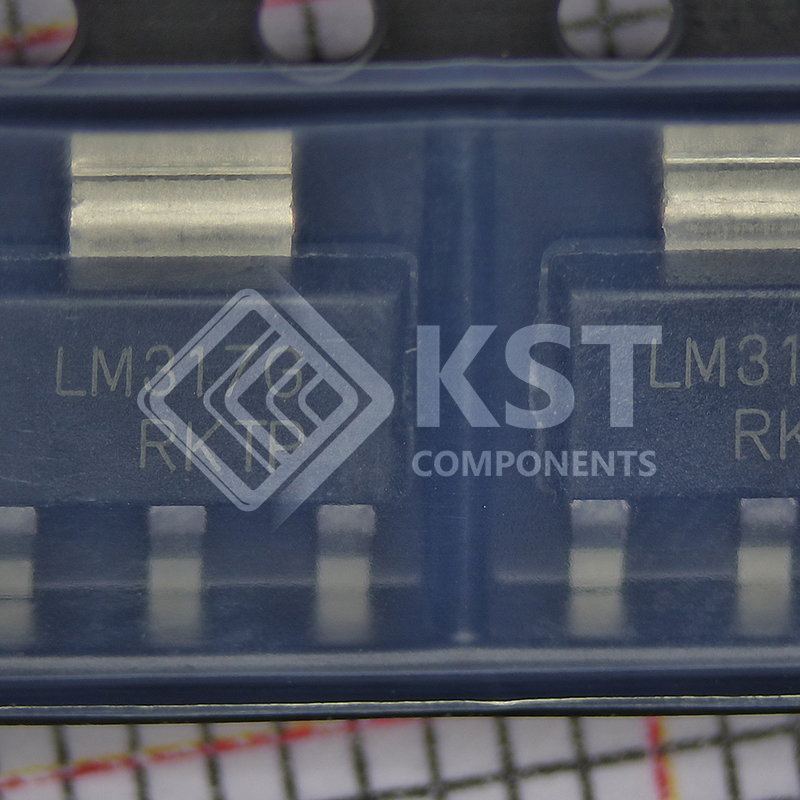

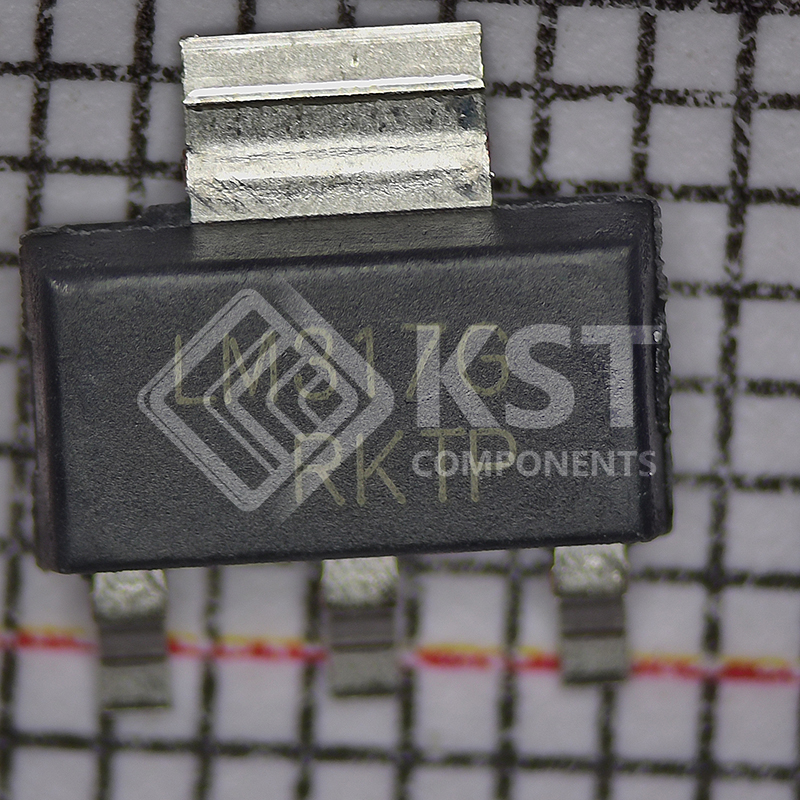

LM317G
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
EVVO
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
40V
|
|
|
Voltage – Output (Min/Fixed)
|
1.2V
|
|
|
Voltage – Output (Max)
|
37V
|
|
|
Voltage Dropout (Max)
|
–
|
|
|
Current – Output
|
1.5A
|
|
|
Current – Quiescent (Iq)
|
12 mA
|
|
|
PSRR
|
75dB ~ 60dB (120Hz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature
|
0°C ~ 125°C (TJ)
|
|
|
Grade
|
–
|
|
|
Qualification
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-261-4, TO-261AA
|
|
|
Supplier Device Package
|
SOT-223-3L
|
