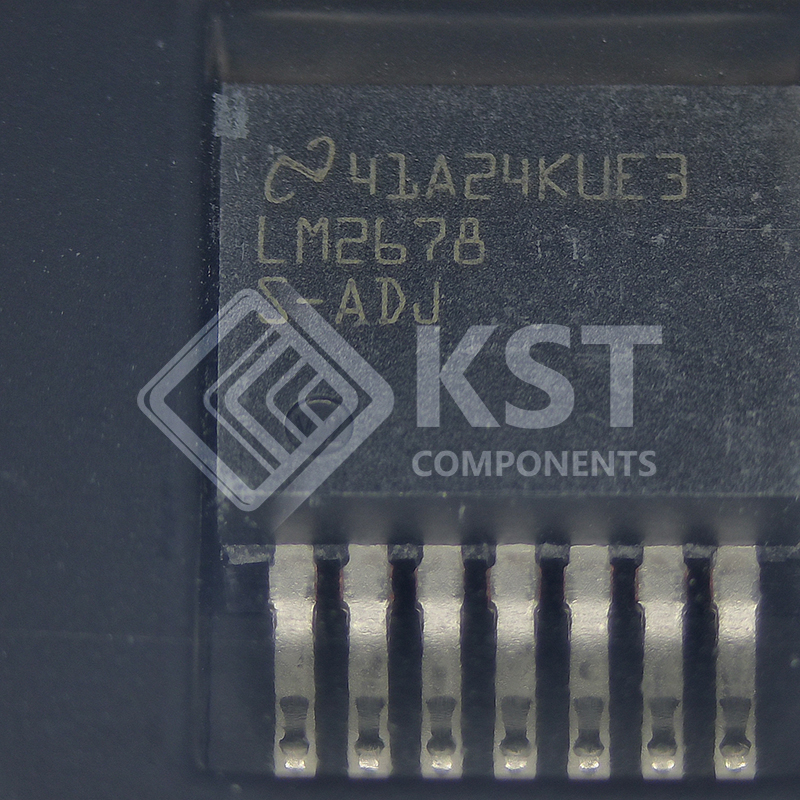

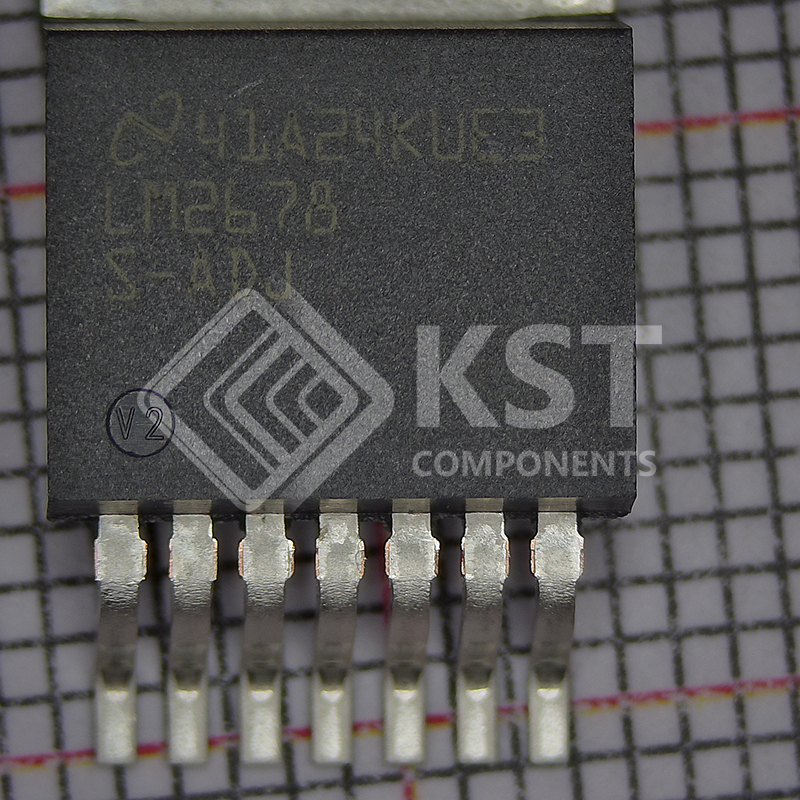

LM2678SX-ADJ-NOPB

IC REG BUCK ADJ 5A TO263


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Integrated Circuits (ICs)
    Power Management (PMIC)
    Voltage Regulators – DC DC Switching Regulators
    Mfr
    Texas Instruments
    Series
    SIMPLE SWITCHER®
    Packaging

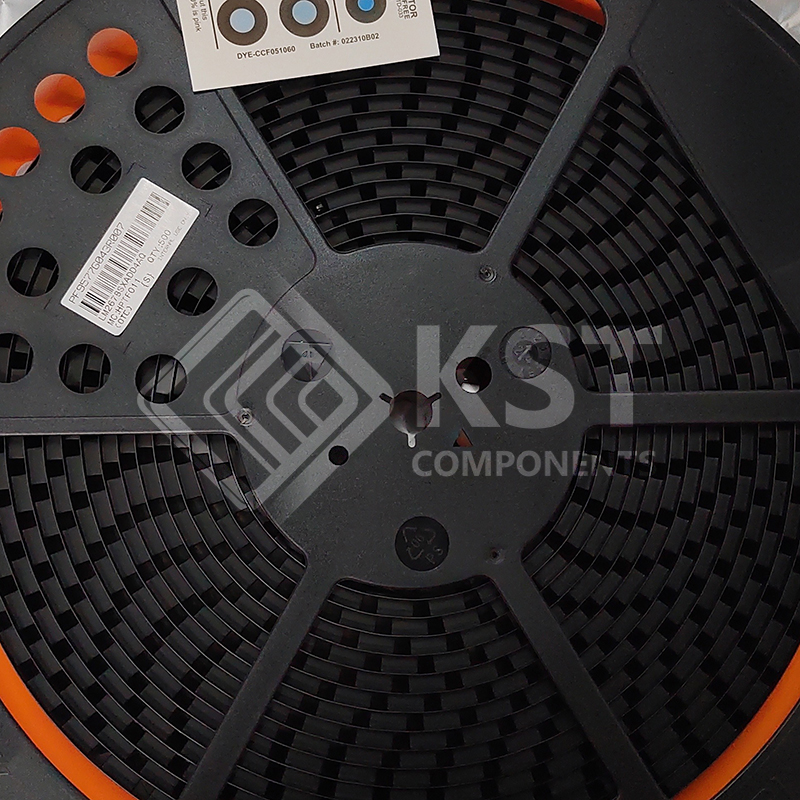

    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Function
    Step-Down
    Output Configuration
    Positive
    Topology
    Buck
    Output Type
    Adjustable
    Number of Outputs
    1
    Voltage – Input (Min)
    8V
    Voltage – Input (Max)
    40V
    Voltage – Output (Min/Fixed)
    1.21V
    Voltage – Output (Max)
    37V
    Current – Output
    5A
    Frequency – Switching
    260kHz
    Synchronous Rectifier
    No
    Operating Temperature
    -40°C ~ 125°C (TJ)
    Mounting Type
    Surface Mount
    Package / Case
    TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
    Supplier Device Package
    TO-263 (DDPAK-7)
    Base Product Number
    LM2678
