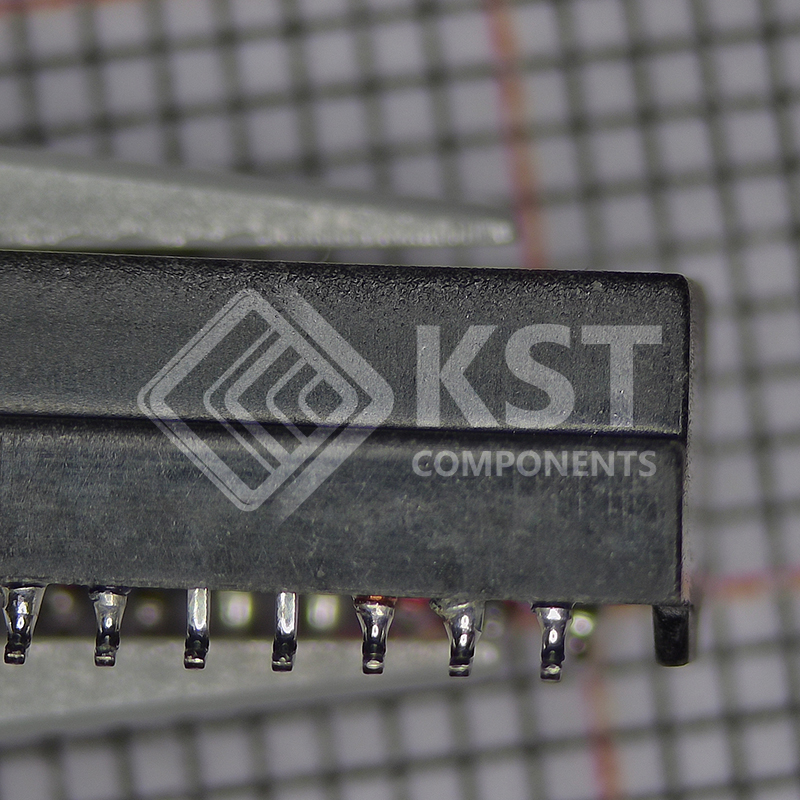

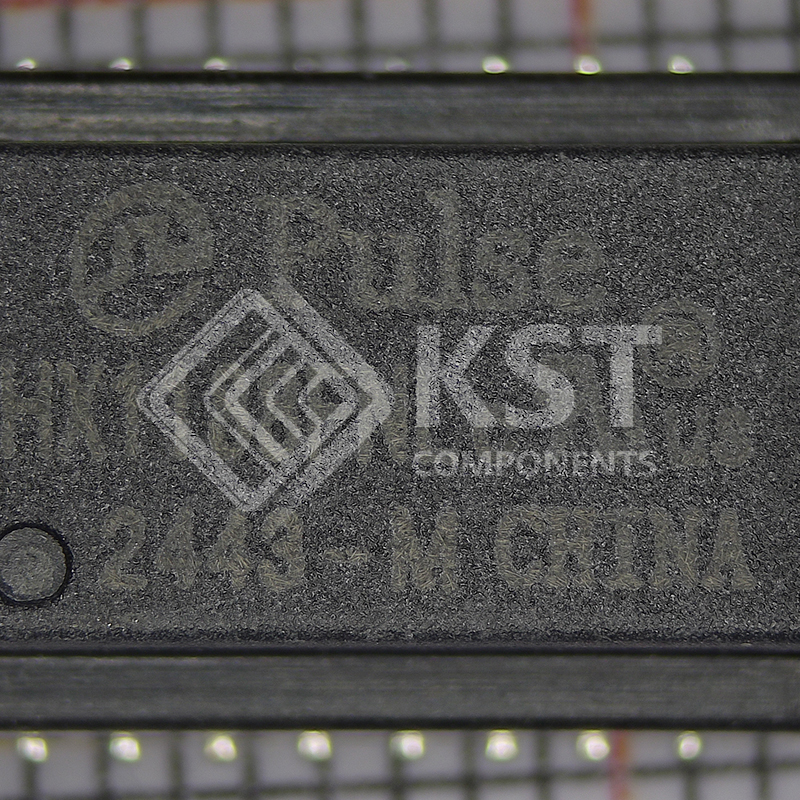

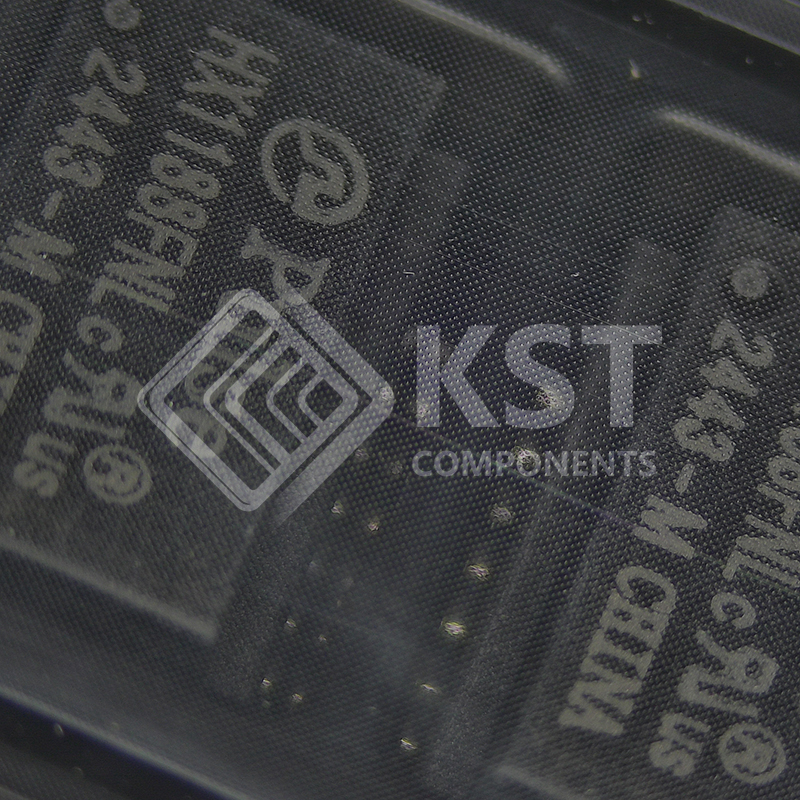

HX1188FNLT
INQUIRY ONLINE
|
Category
|
Transformers
Pulse Transformers
|
|
|
Manufacturer
|
Pulse Electronics
|
|
|
Series
|
–
|
|
|
Packaging
|

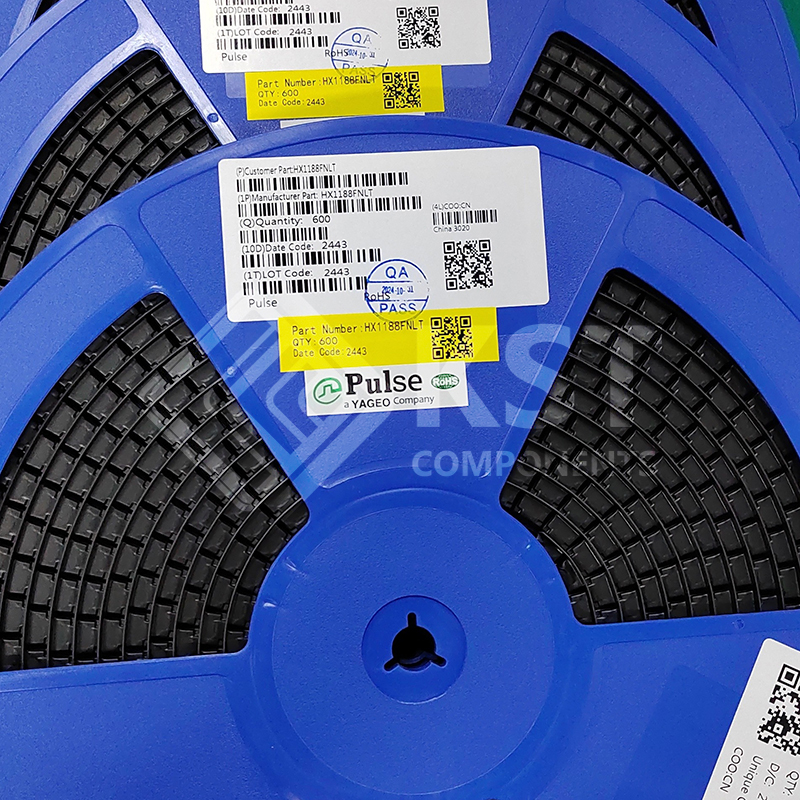

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|

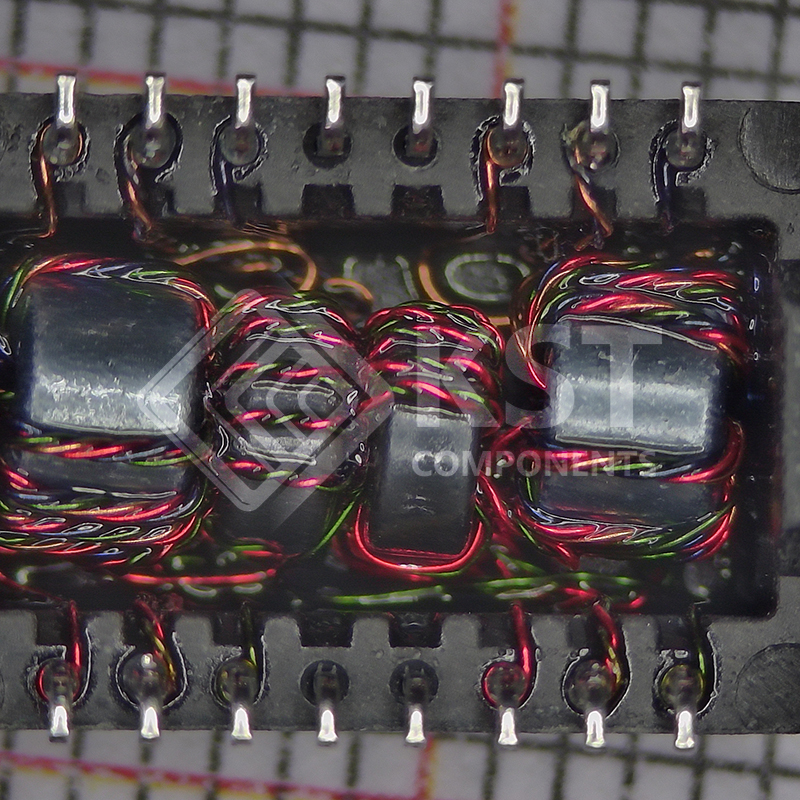

Transformer Type
|
Isolation and Data Interface (Encapsulated)
|
|
|
Inductance
|
–
|
|
|
ET (Volt-Time)
|
–
|
|
|
Turns Ratio – Primary:Secondary
|
1:1 Transmitter, 1:1 Receiver
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Size / Dimension
|
0.500″ L x 0.358″ W (12.70mm x 9.09mm)
|
|
|
Height – Seated (Max)
|
0.241″ (6.12mm)
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
