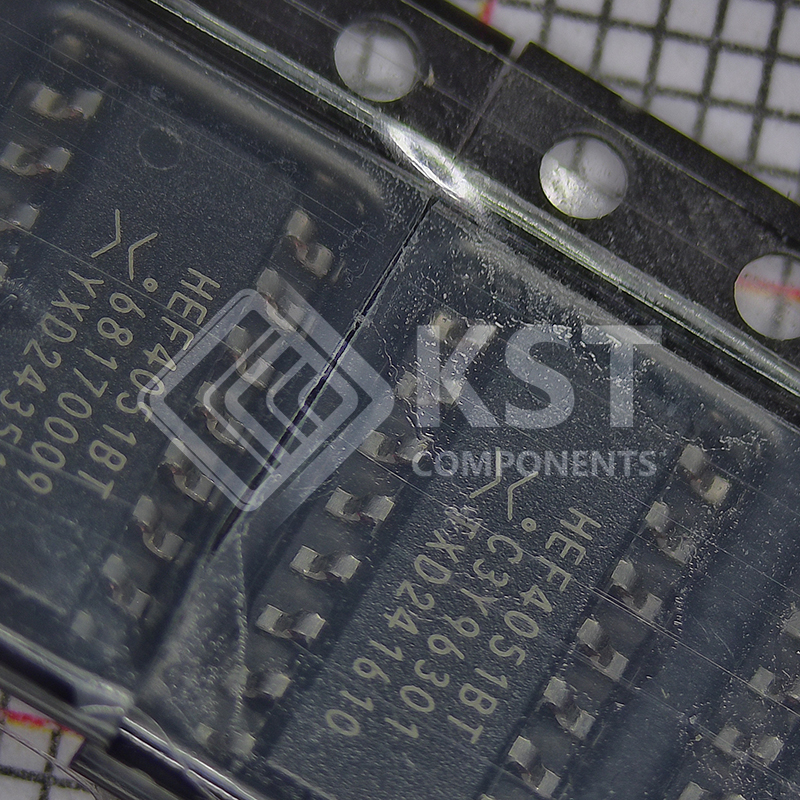

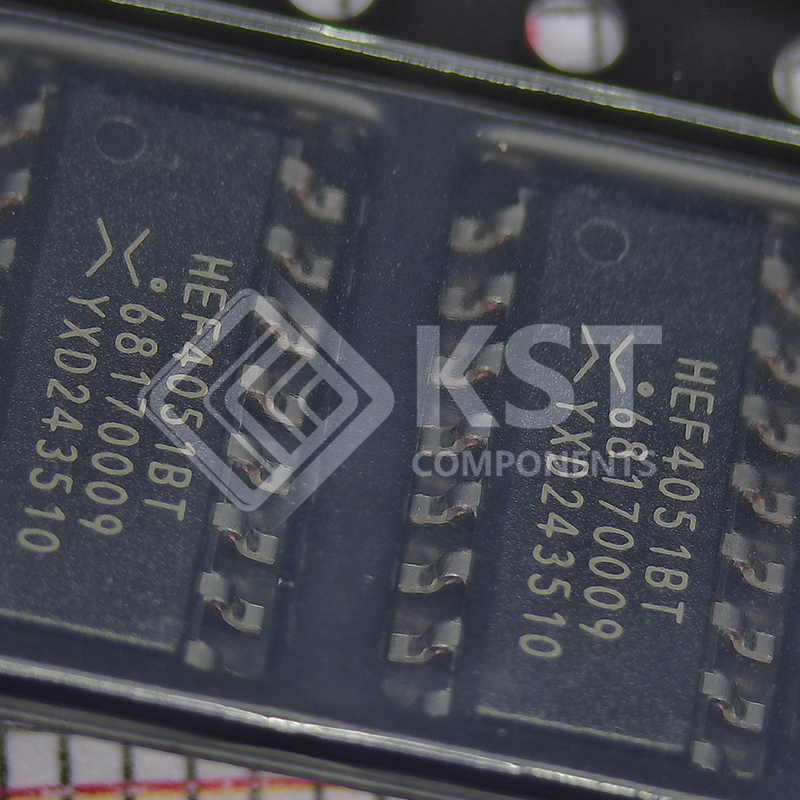

HEF4051BT,653
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
|
|
|
Manufacturer
|
Nexperia USA Inc.
|
|
|
Series
|
–
|
|
|

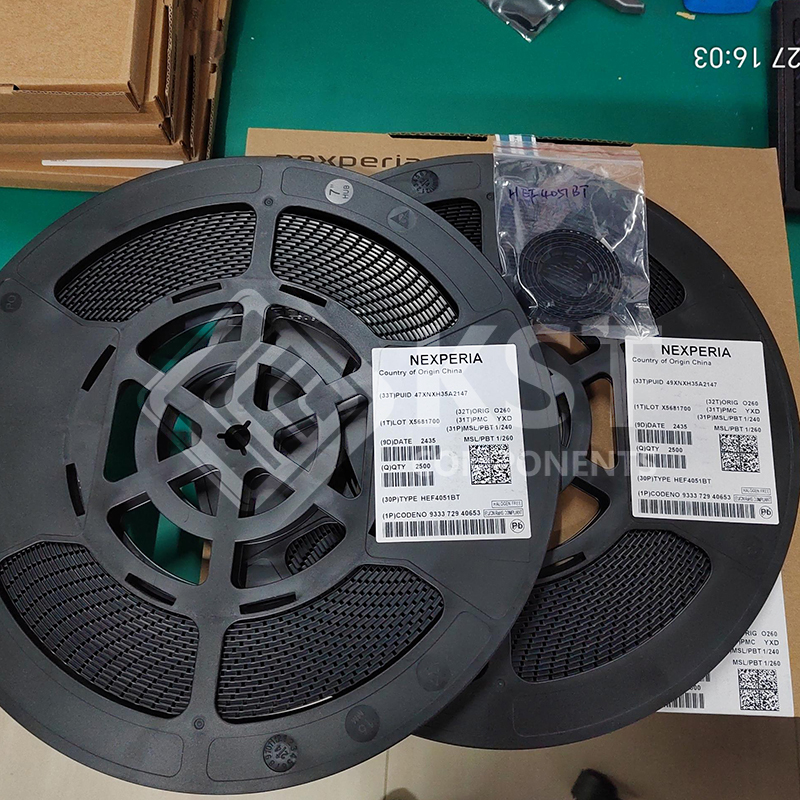

Packaging
|

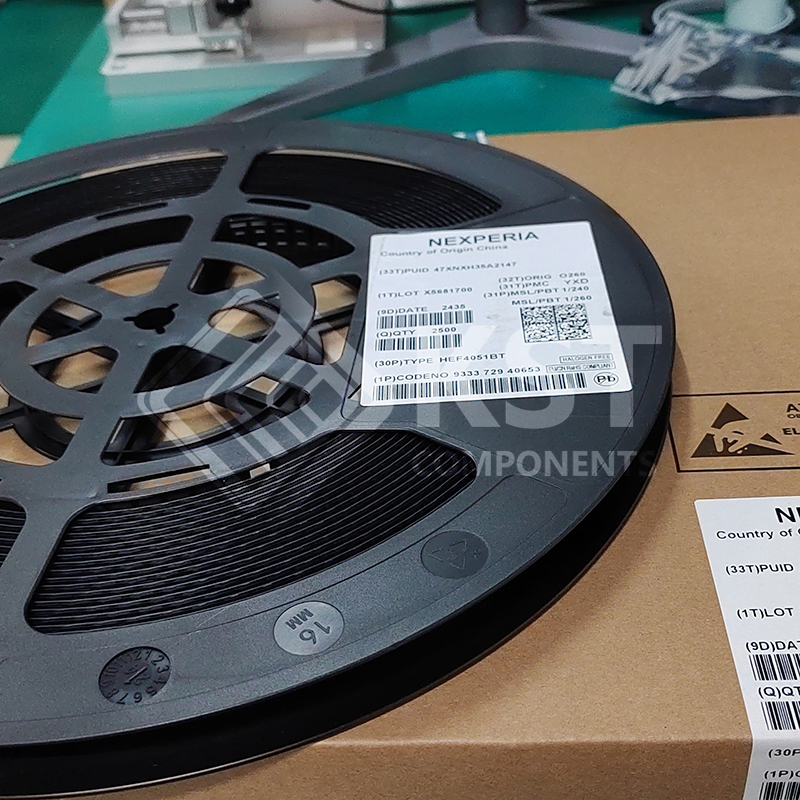

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Switch Circuit
|
–
|
|
|
Multiplexer/Demultiplexer Circuit
|
8:1
|
|
|
Number of Circuits
|
1
|
|
|
On-State Resistance (Max)
|
155Ohm
|
|
|
Channel-to-Channel Matching (ΔRon)
|
5Ohm
|
|
|
Voltage – Supply, Single (V+)
|
3V ~ 15V
|
|
|
Voltage – Supply, Dual (V±)
|
–
|
|
|
Switch Time (Ton, Toff) (Max)
|
–
|
|
|
-3db Bandwidth
|
70MHz
|
|
|
Charge Injection
|
–
|
|
|
Channel Capacitance (CS(off), CD(off))
|
7.5pF
|
|
|
Current – Leakage (IS(off)) (Max)
|
200nA
|
|
|
Crosstalk
|
-50dB @ 1MHz
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package
|
16-SO
|
|
|
Base Product Number
|
HEF4051
|
|
