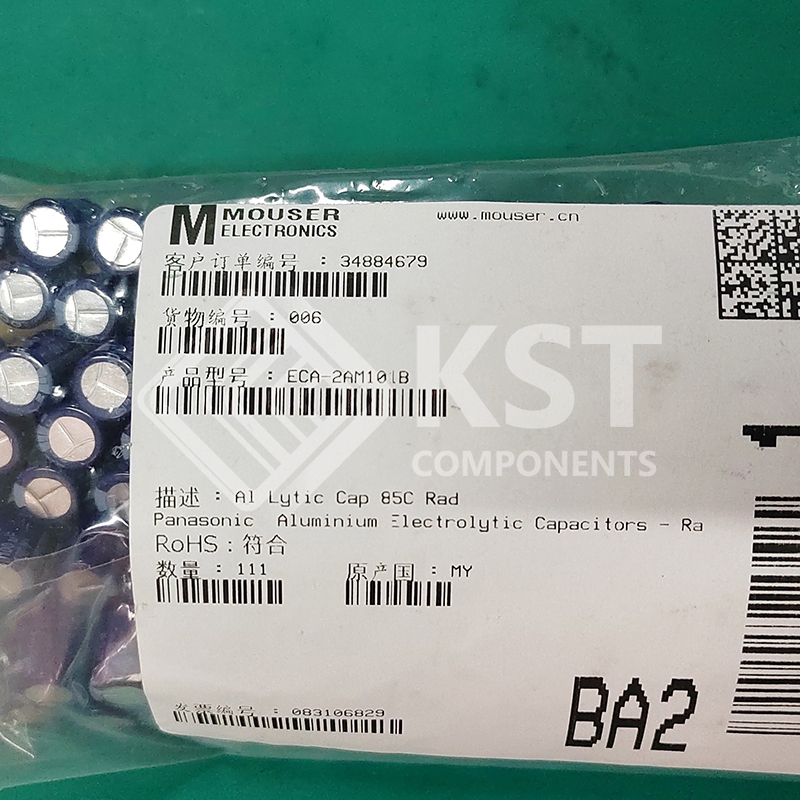

ECA2AM101B
INQUIRY ONLINE
|
Category
|
Capacitors
Aluminum Electrolytic Capacitors
|
|
|
Mfr
|
Panasonic Electronic Components
|
|
|
Series
|
M-A
|
|
|
Packaging
|
Cut Tape (CT)
Tape & Box (TB)
|
|
|
Part Status
|
Active
|
|
|

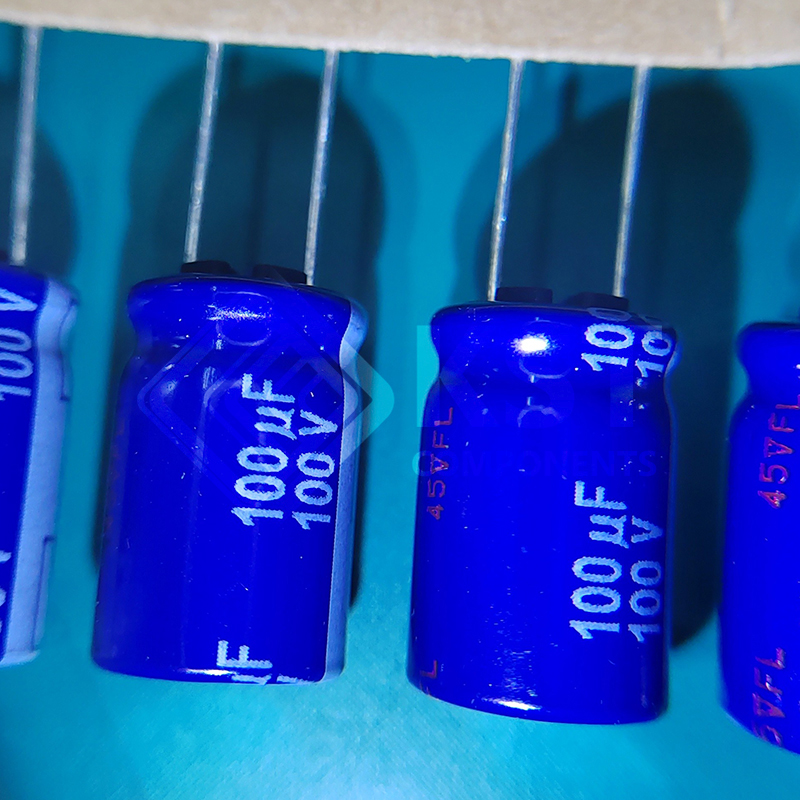

Capacitance
|
100 µF
|
|
|
Tolerance
|
±20%
|
|
|
Voltage – Rated
|
100 V
|
|
|
ESR (Equivalent Series Resistance)
|
–
|
|
|
Lifetime @ Temp.
|
2000 Hrs @ 85°C
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Polarization
|
Polar
|
|
|
Ratings
|
–
|
|
|
Applications
|
General Purpose
|
|
|
Ripple Current @ Low Frequency
|
350 mA @ 120 Hz
|
|
|
Ripple Current @ High Frequency
|
595 mA @ 10 kHz
|
|
|
Lead Spacing
|
0.197″ (5.00mm)
|
|
|
Size / Dimension
|
0.394″ Dia (10.00mm)
|
|
|
Height – Seated (Max)
|
0.669″ (17.00mm)
|
|
|
Surface Mount Land Size
|
–
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
Radial, Can
|
|
|
Base Product Number
|
ECA-2AM
|
