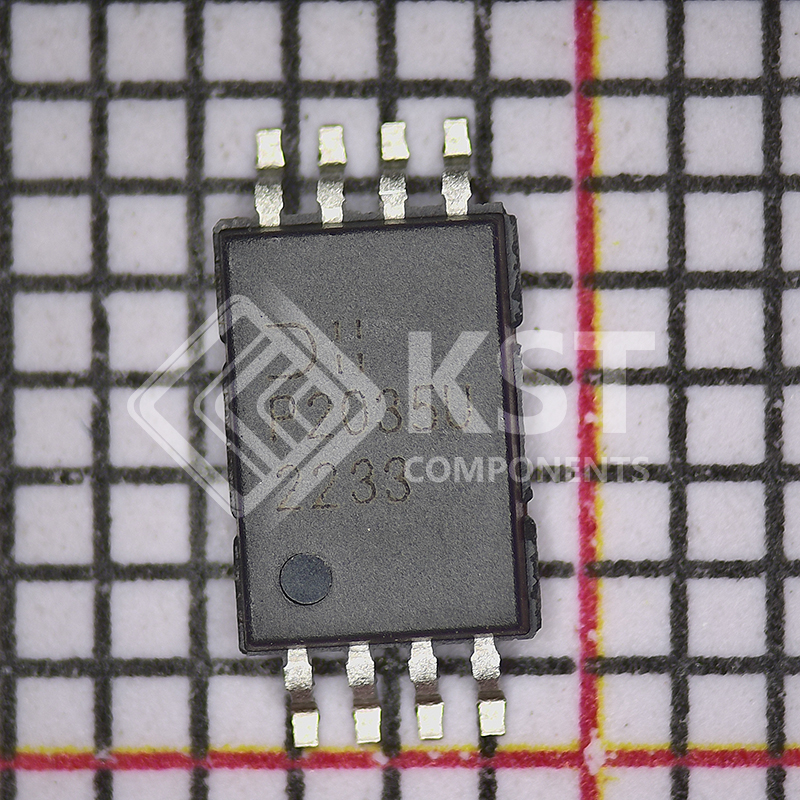

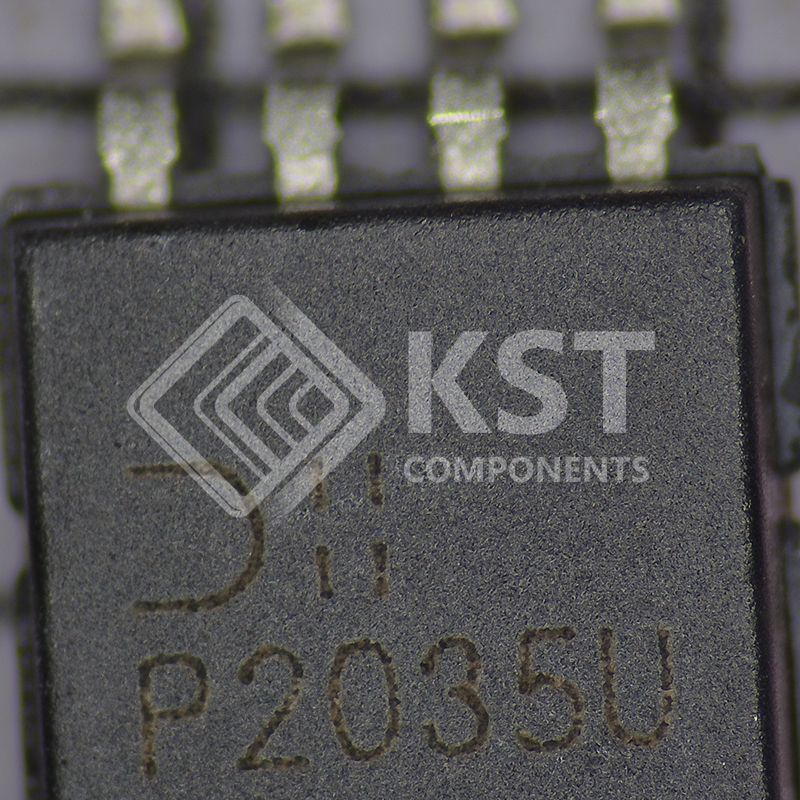

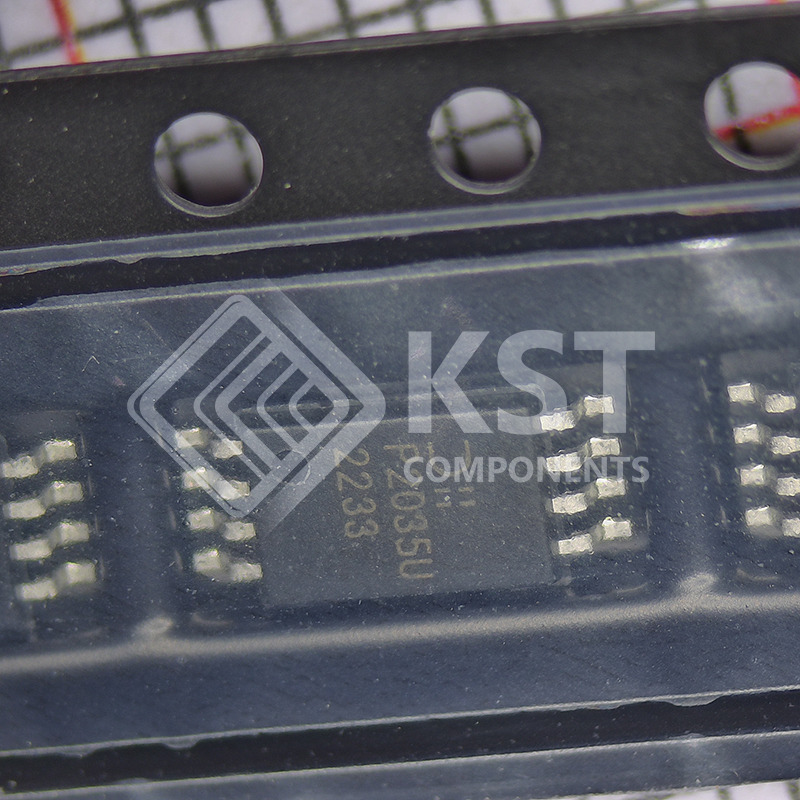

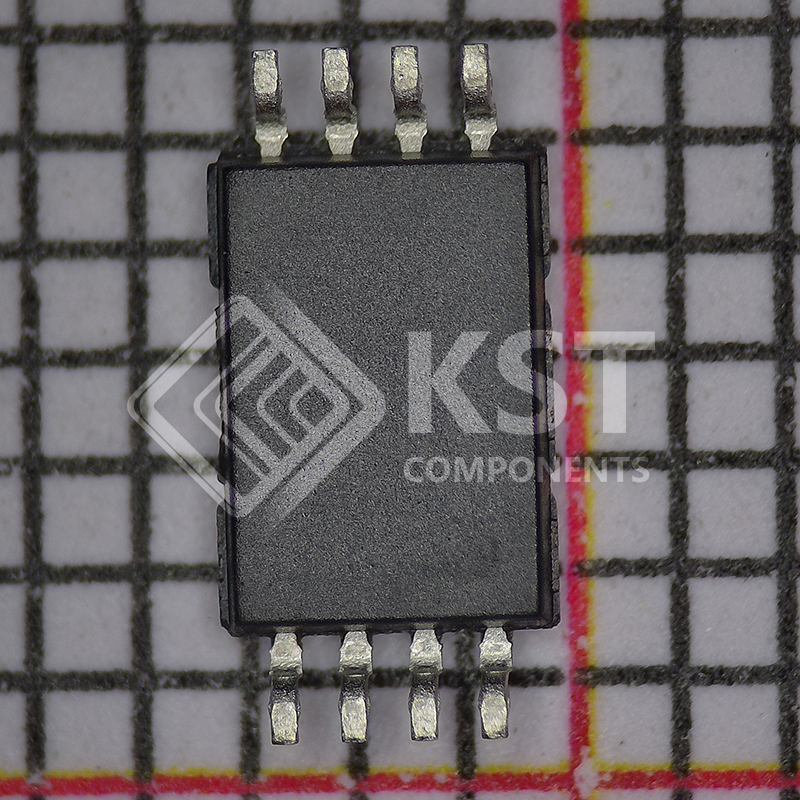

DMP2035UTS-13
INQUIRY ONLINE
| Part Number | DMP2035UTS-13 |
| Brand | Diodes Incorporated |
| Lifecycle | Active |
| RoHS | No RoHS Information |
| Product Line | Semiconductors |
| Category | Transistors |
| Subcategory | FETs, MOSFETs – Arrays |
| Manufacturer | Diodes Incorporated |
| Series | – |
| FET Type | 2 P-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current – Continuous Drain (Id) @ 25°C | 6.04A |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1610pF @ 10V |
| Power – Max | 890mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
