DMC564040R
INQUIRY ONLINE
| Manufacturer | Panasonic Electronic Components |
| Series | – |
| Packaging | Tape & Reel (TR) |
| Part Status | Discontinued at Digi-Key |
| Transistor Type | 2 NPN – Pre-Biased (Dual) |
| Current – Collector (Ic) (Max) | 100mA |
| Voltage – Collector Emitter Breakdown (Max) | 50V |
| Resistor – Base (R1) | 10kOhms |
| Resistor – Emitter Base (R2) | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA |
| Current – Collector Cutoff (Max) | 500nA |
| Frequency – Transition | – |
| Power – Max | 150mW |
| Mounting Type | Surface Mount |

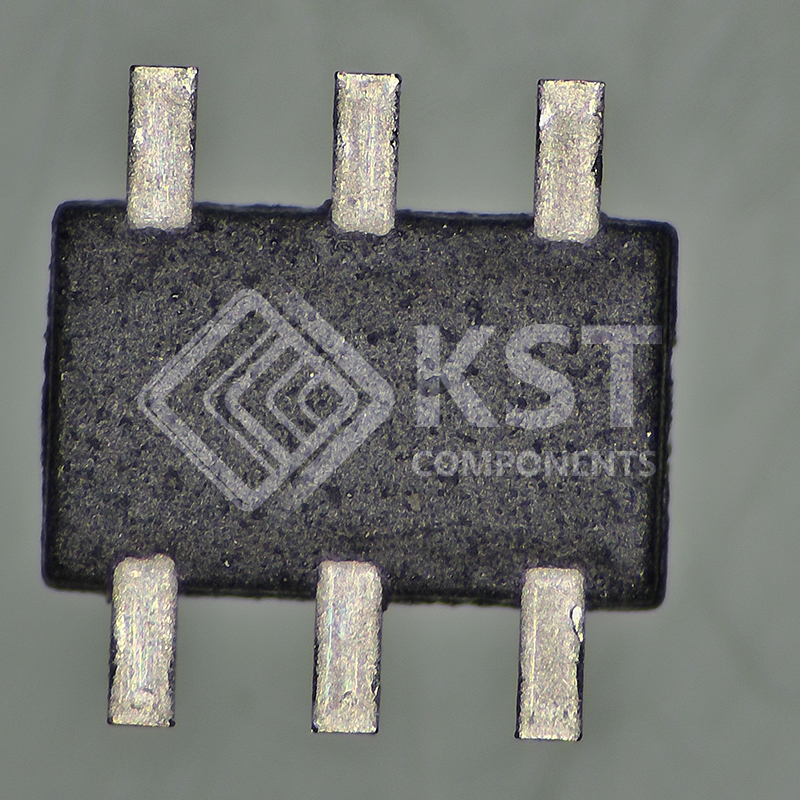

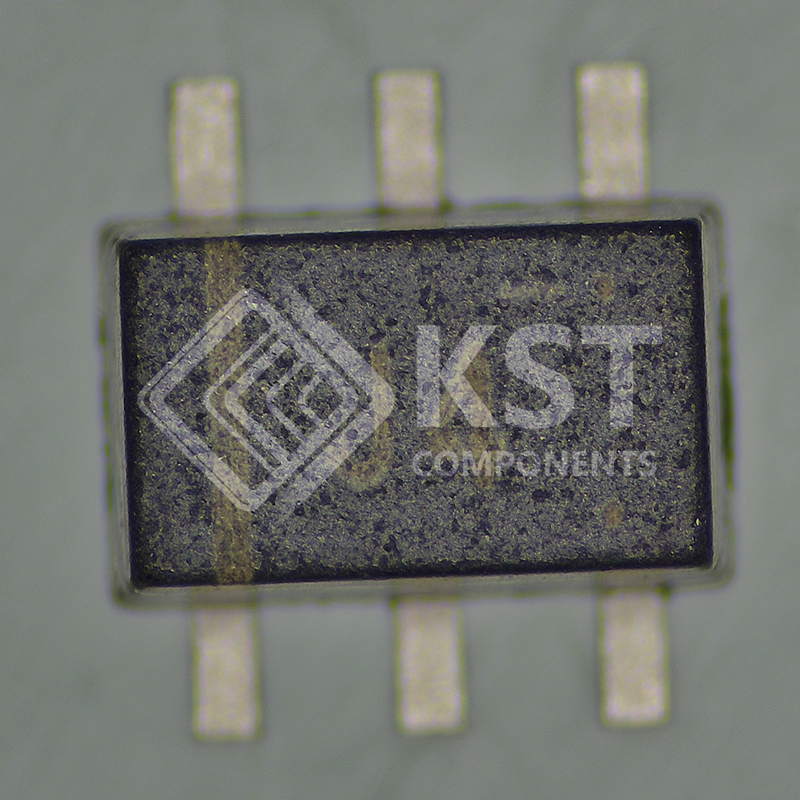

| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | SMini6-F3-B |
| Base Product Number | DMC56404 |
