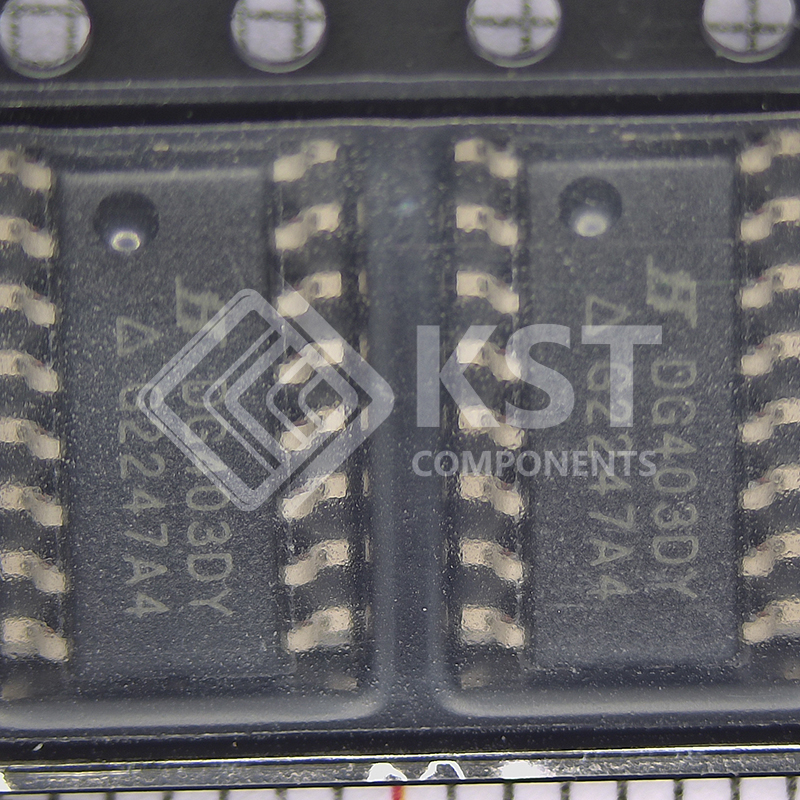

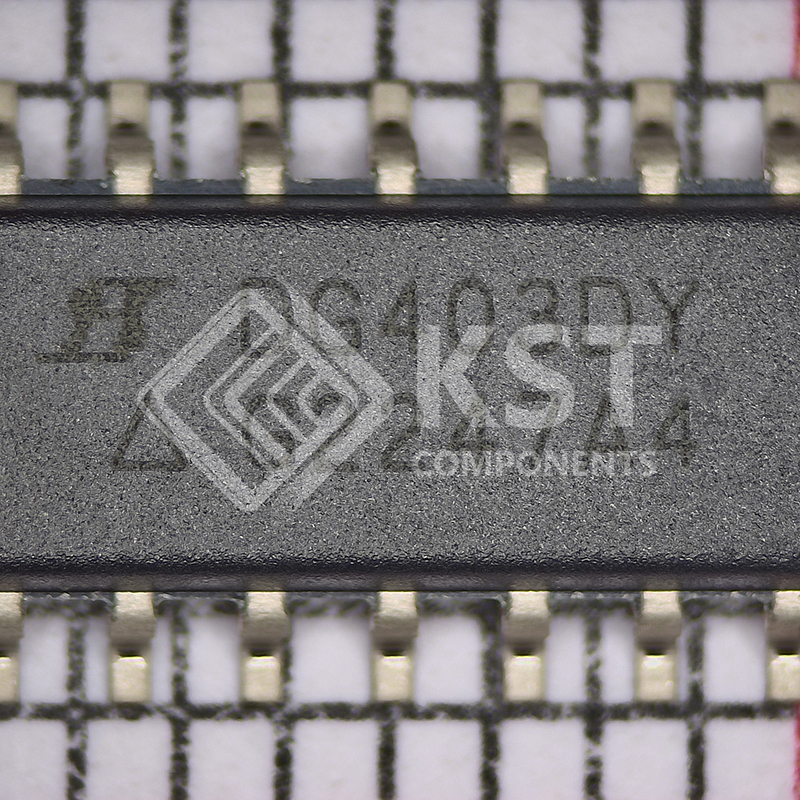

DG403DY-T1-E3
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
|
|
|
Manufacturer
|
Vishay Siliconix
|
|
|
Series
|
–
|
|
|

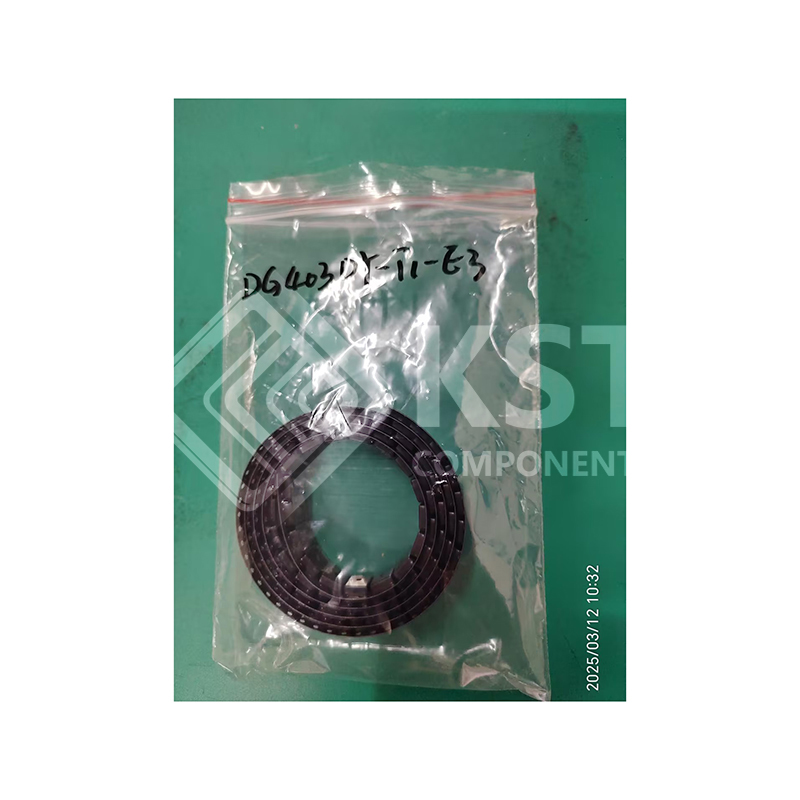

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Switch Circuit
|
SPST – NO/NC
|
|
|
Multiplexer/Demultiplexer Circuit
|
1:1
|
|
|
Number of Circuits
|
2
|
|
|
On-State Resistance (Max)
|
45Ohm
|
|
|
Channel-to-Channel Matching (ΔRon)
|
3Ohm
|
|
|
Voltage – Supply, Single (V+)
|
13V ~ 36V
|
|
|
Voltage – Supply, Dual (V±)
|
±7V ~ 22V
|
|
|
Switch Time (Ton, Toff) (Max)
|
150ns, 100ns
|
|
|
-3db Bandwidth
|
–
|
|
|
Charge Injection
|
60pC
|
|
|
Channel Capacitance (CS(off), CD(off))
|
12pF, 12pF
|
|
|
Current – Leakage (IS(off)) (Max)
|
500pA
|
|
|
Crosstalk
|
-90dB @ 1MHz
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package
|
16-SOIC
|
|
|
Base Product Number
|
DG403
|
