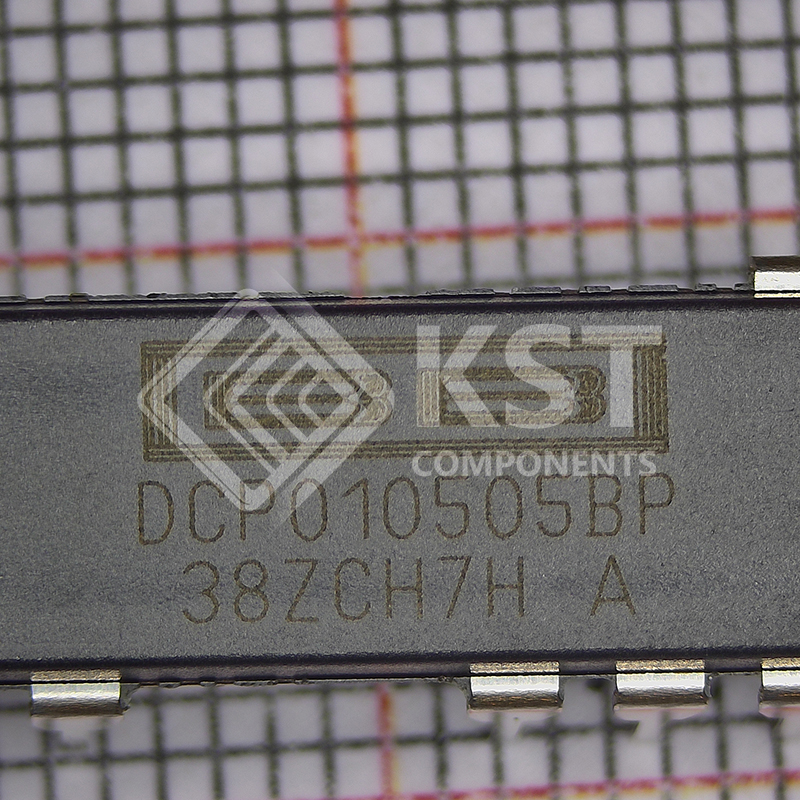

DCP010505BP
INQUIRY ONLINE
|
Category
|
Power Supplies – Board Mount
DC DC Converters
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
DCP01B (1W)
|
|
|
Packaging
|

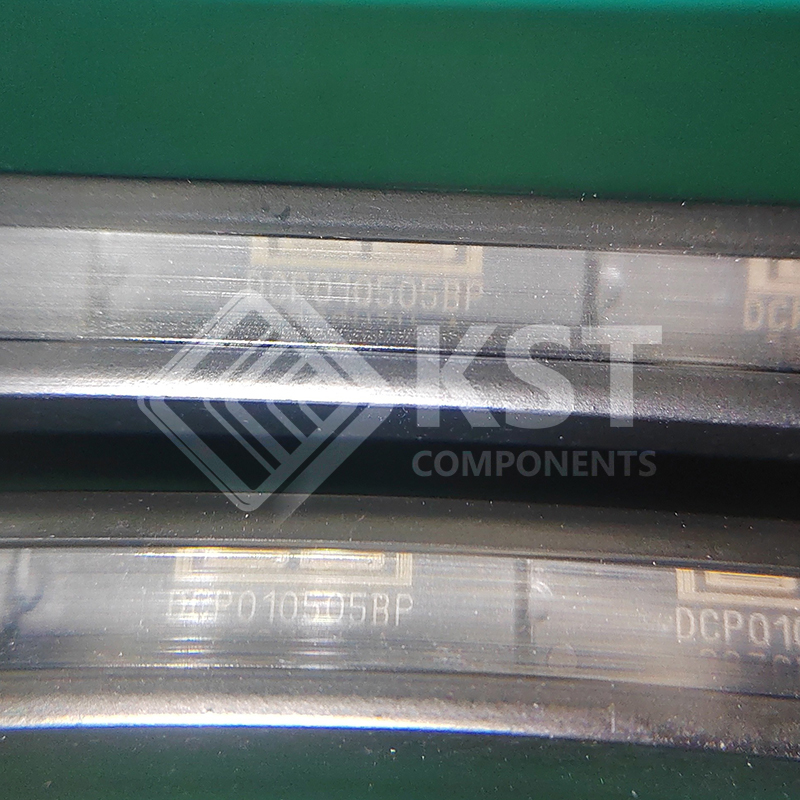

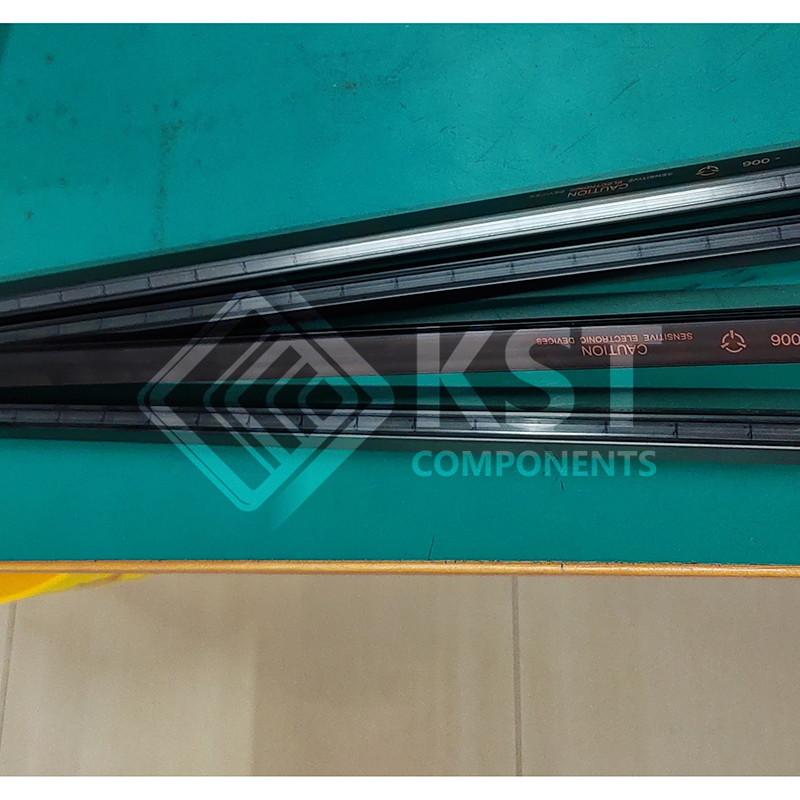

Tube
|
|
|
Part Status
|
Active
|
|
|
Type
|
Isolated Module
|
|
|
Number of Outputs
|
1
|
|
|
Voltage – Input (Min)
|
4.5V
|
|
|
Voltage – Input (Max)
|
5.5V
|
|
|
Voltage – Output 1
|
5V
|
|
|
Voltage – Output 2
|
–
|
|
|
Voltage – Output 3
|
–
|
|
|
Current – Output (Max)
|
200mA
|
|
|
Power (Watts)
|
1 W
|
|
|
Voltage – Isolation
|
1 kV
|
|
|
Applications
|
ITE (Commercial)
|
|
|
Features
|
OTP, SCP
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Efficiency
|
80%
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
14-DIP (0.300″, 7.62mm), 7 Leads
|
|
|
Size / Dimension
|
0.78″ L x 0.33″ W x 0.21″ H (19.7mm x 8.3mm x 5.3mm)
|
|
|
Supplier Device Package
|
7-PDIP
|
|
|
Control Features
|
Enable, Active High
|
|
|
Base Product Number
|
DCP010505
|
