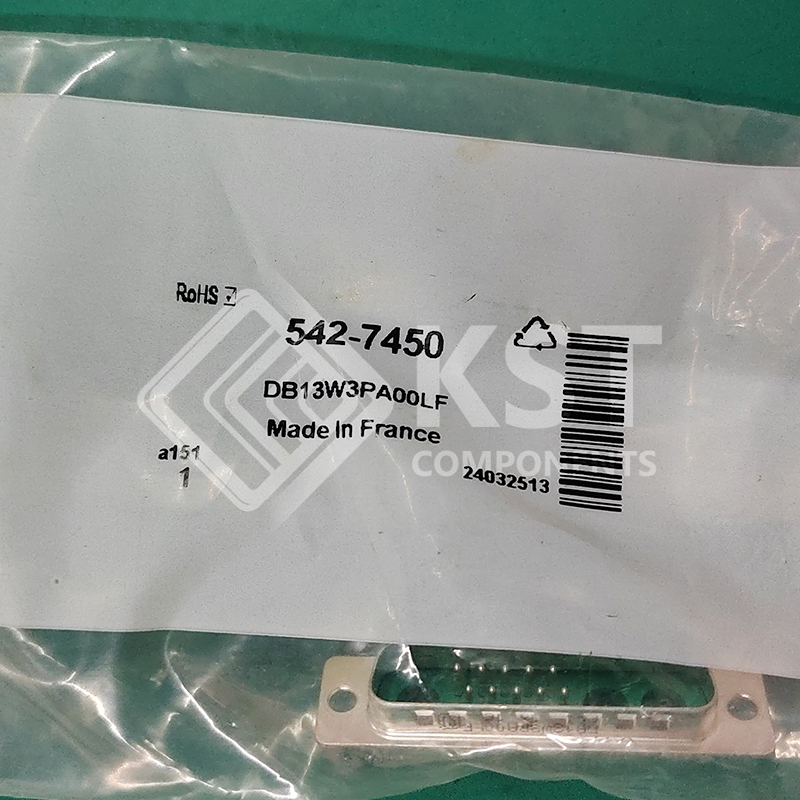

DB13W3PA00LF
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
D-Sub, D-Shaped Connectors
D-Sub Connector Assemblies
|
|
|
Mfr
|
Amphenol ICC (FCI)
|
|
|
Series
|
DW
|
|
|
Packaging
|
Tray
|
|
|
Part Status
|
Active
|
|
|

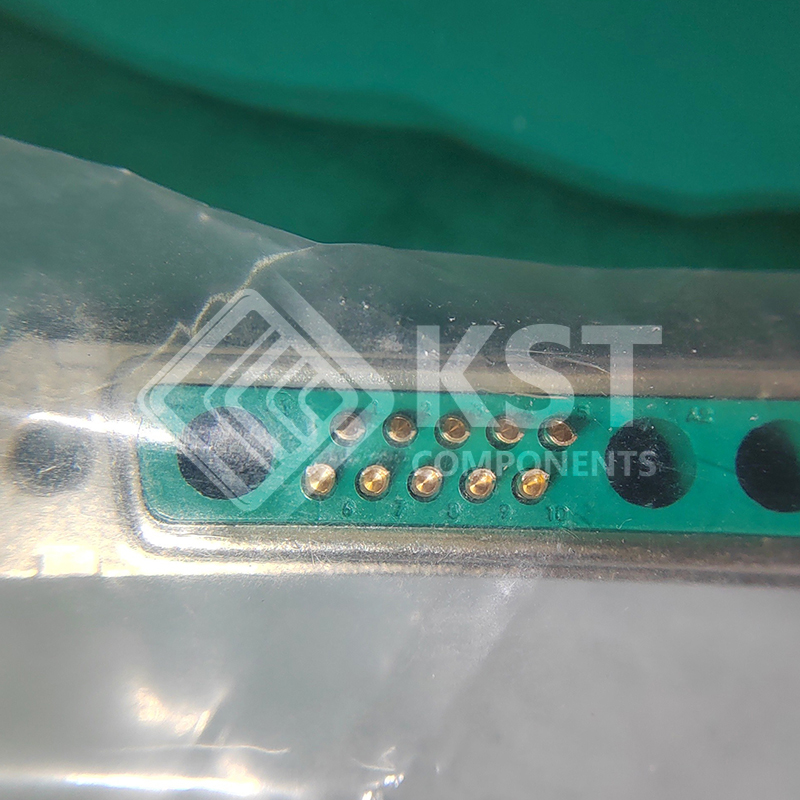

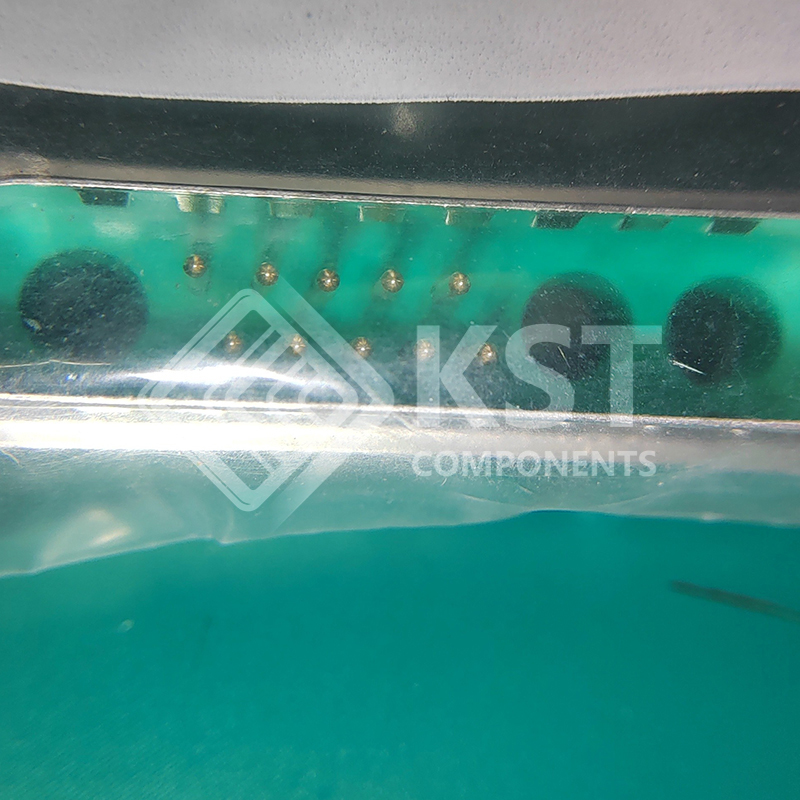

Connector Style
|
D-Sub, Combo
|
|
|
Connector Type
|
Plug, Male Pins
|
|
|
Number of Positions
|
13 (10 + 3 Power)
|
|
|
Number of Rows
|
2
|
|
|
Mounting Type
|
Free Hanging (In-Line)
|
|
|
Shell Size, Connector Layout
|
3 (DB, B) – 13C3, 13W3
|
|
|
Contact Type
|
Signal and Power (Not Included)
|
|
|
Flange Feature
|
Housing/Shell (Unthreaded)
|
|
|
Termination
|
Solder Cup
|
|
|
Shell Material, Finish
|
Steel, Nickel Plated
|
|
|
Contact Finish
|
Gold-Palladium
|
|
|
Contact Finish Thickness
|
–
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Current Rating (Amps)
|
7.5A per Contact
|
|
|
Backset Spacing
|
–
|
|
|
Features
|
Grounding Indents
|
|
|
Voltage Rating
|
300V
|
|
|
Color
|
–
|
|
|
Contact Form
|
–
|
|
|
Dielectric Material
|
Thermoplastic
|
|
|
Wire Gauge
|
–
|
|
|
Contact Material
|
Brass
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Base Product Number
|
DB13W3PA00
|
