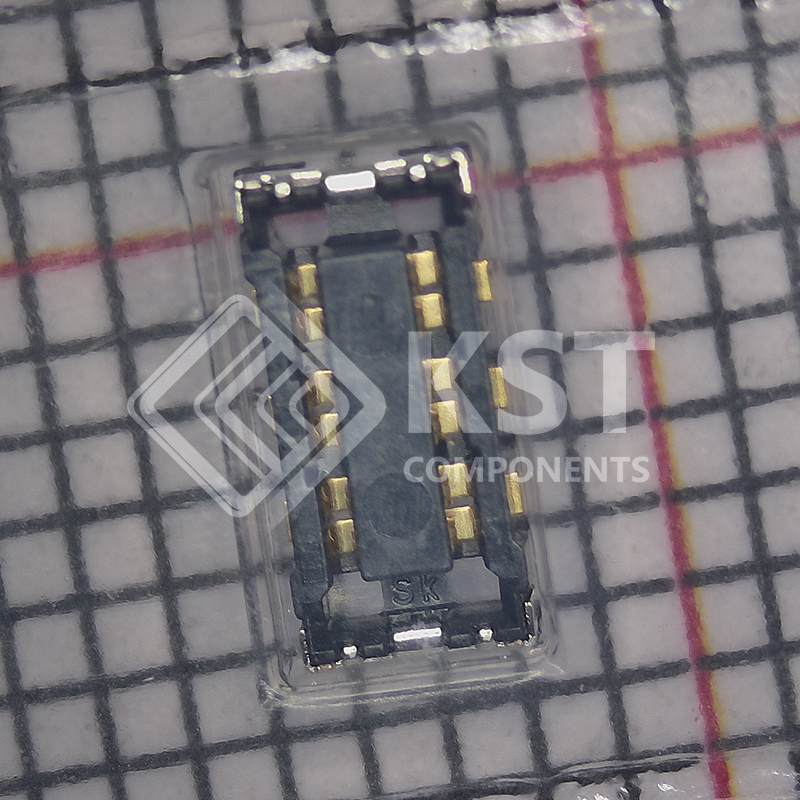

    CPB9406-0109E

    – Board-to-Board and Backplane Connector ROHS

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Series FB-4
      Product Name FPC to Board Connector
      Parts No. CPB9406-0101F
      Outline・Feature
      • 1. Large current connector for battery.
      • 2. Highly reliable and stable connection using SMK´s unique contact structure.
      • 3. High retention force by SMK´s unique locking mechanism on the contact terminal and hold-down.
      • 4. Power terminal supports 10A current (when using 4pins for power).
      • 5. Multiple pin count with 6pins satisfies the need of multifunctional battery (Power : 4Pin, Signal : 2Pin).
      • 6. Low profile design with 0.9mm mating height, 2.8mm width and 6.0mm depth.
      • 7. Country of Origin：Japan
      Application Mobile phones, Smartphone, digital camera, other mobile equipment
      Standard －
      External Dimension Width: 6.0mm　Depth: 2.8mm　Height: 0.9mm

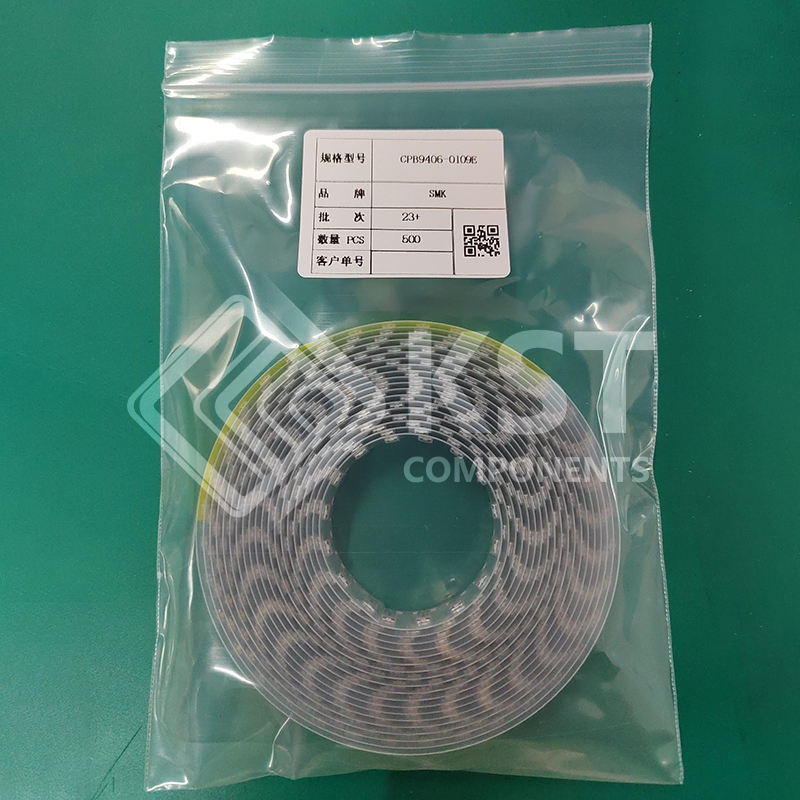

      Packaging Emboss Taping（5,000 pcs／reel）
      Pitch 1.3mm
      Mating Height 0.9mm
      Number of Pins 6
      Rating AC/DC 30V 4.0A(Power Pin)/1.0A(Signal Pin)
      Contact Resistance 20mΩ Max.
      Insulation Resistance DC200V 1,000MΩ Min.
      Withstanding Voltage AC500V (for one minute)
      Operating Temperature Range －25℃ ～ ＋85℃
      Socket Housing Thermoplastic Resin
      Socket Contact Cu Alloy, Au Plating
      Socket Hold Down Cu Alloy,Sn Alloy Plating
      Plug Housing －
      Plug Contact －
      Plug Hold Down －
      Socket/Plug Socket
      Hold Down with
