CD4070BPWR
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Logic
Gates and Inverters
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
4000B
|
|
|
Packaging
|

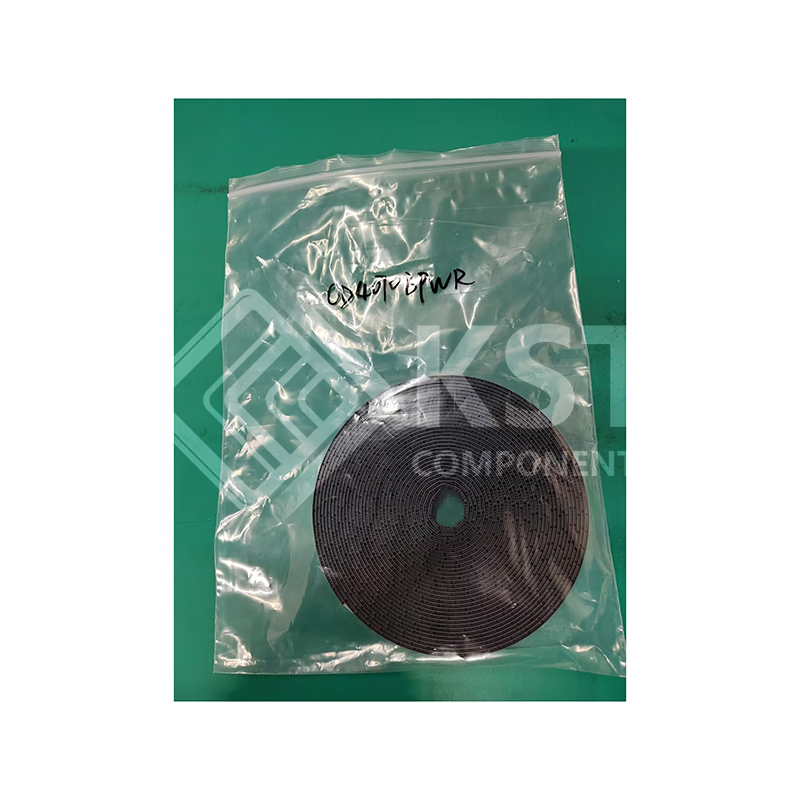

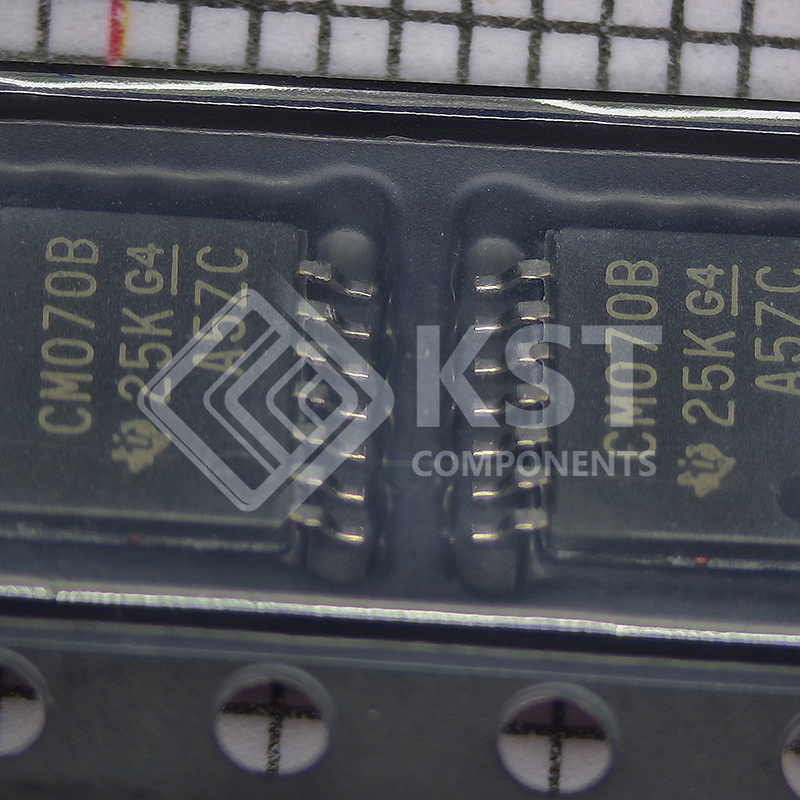

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Logic Type
|
XOR (Exclusive OR)
|
|
|
Number of Circuits
|
4
|
|
|
Number of Inputs
|
2
|
|
|
Features
|
–
|
|
|
Voltage – Supply
|
3V ~ 18V
|
|
|
Current – Quiescent (Max)
|
1 µA
|
|
|
Current – Output High, Low
|
3.4mA, 3.4mA
|
|
|
Input Logic Level – Low
|
1.5V ~ 4V
|
|
|
Input Logic Level – High
|
3.5V ~ 11V
|
|
|
Max Propagation Delay @ V, Max CL
|
100ns @ 15V, 50pF
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
14-TSSOP
|
|
|
Package / Case
|
14-TSSOP (0.173″, 4.40mm Width)
|
|
|
Base Product Number
|
CD4070
|
