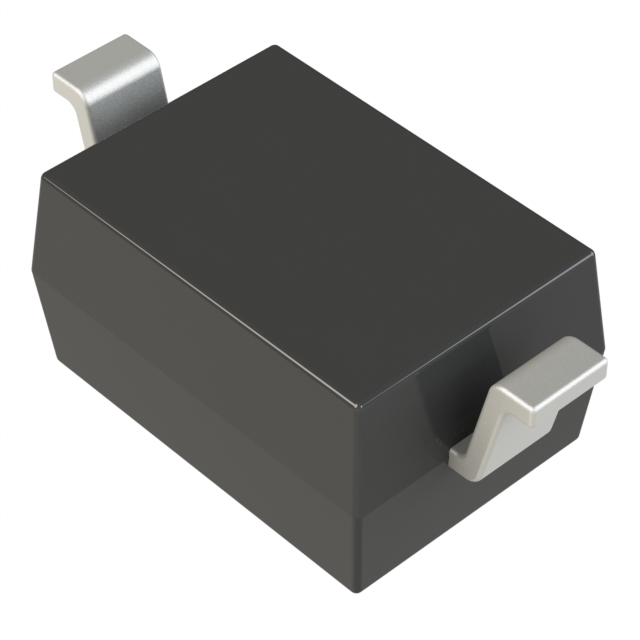

BAV21W-7-F
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr
|
Diodes Incorporated
|
|
|
Series
|
–
|
|
|
Packaging
|

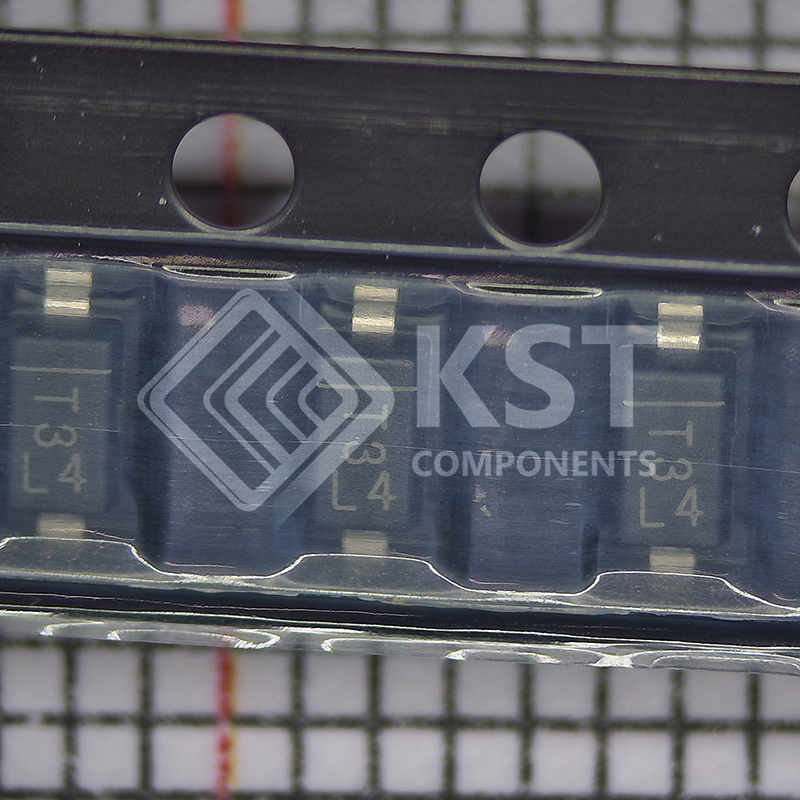

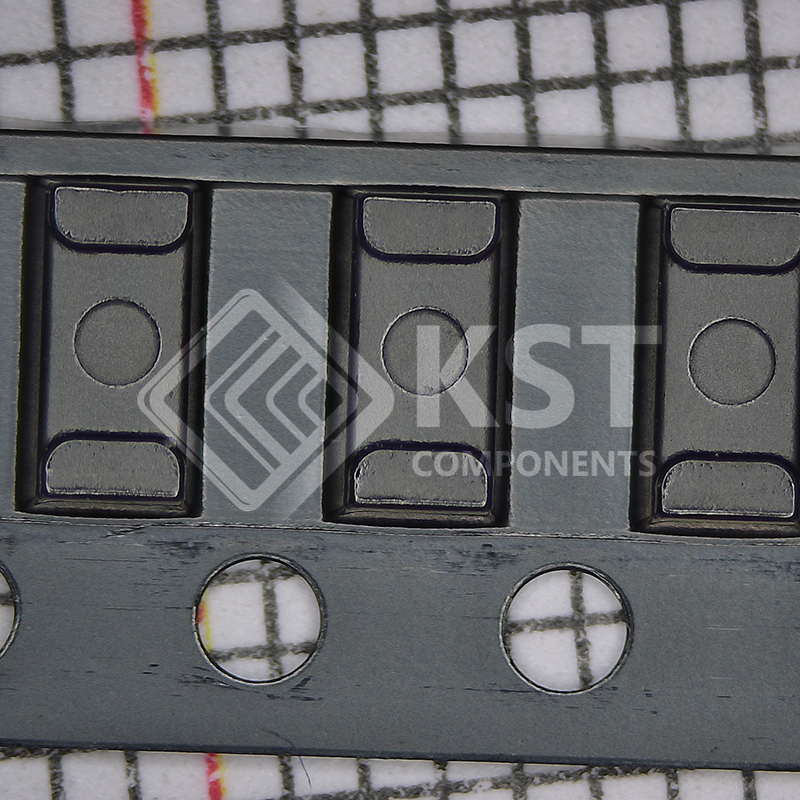

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Standard
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
200 V
|
|
|
Current – Average Rectified (Io)
|
400mA
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
1.25 V @ 200 mA
|
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
|
Reverse Recovery Time (trr)
|
50 ns
|
|
|
Current – Reverse Leakage @ Vr
|
100 nA @ 200 V
|
|
|
Capacitance @ Vr, F
|
5pF @ 0V, 1MHz
|
|
|
Grade
|
–
|
|
|
Qualification
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
SOD-123
|
|
|
Supplier Device Package
|
SOD-123
|
|
|
Operating Temperature – Junction
|
-65°C ~ 150°C
|
|
|
Base Product Number
|
BAV21
|
