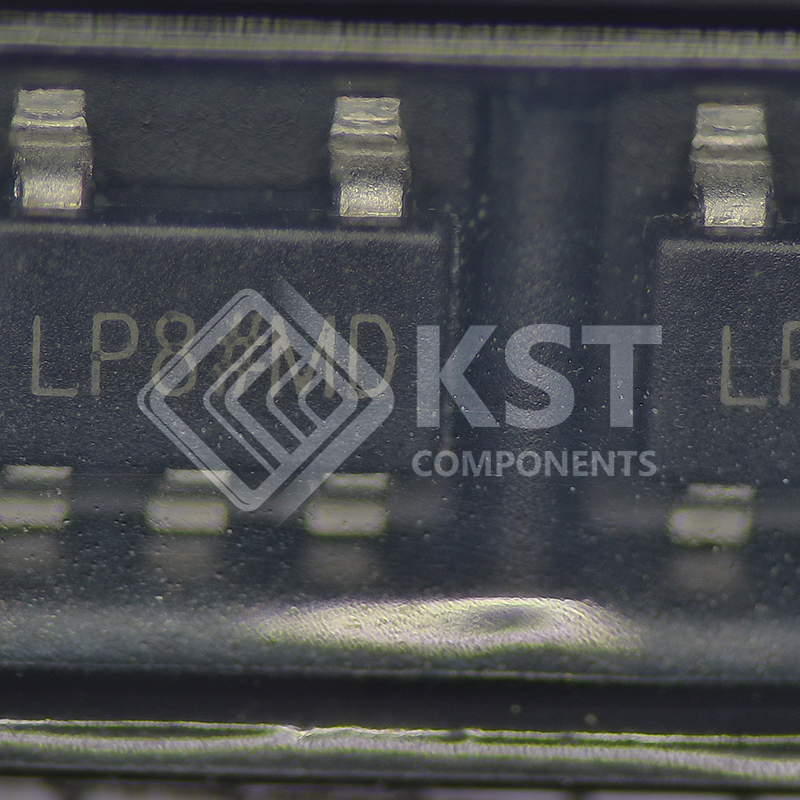

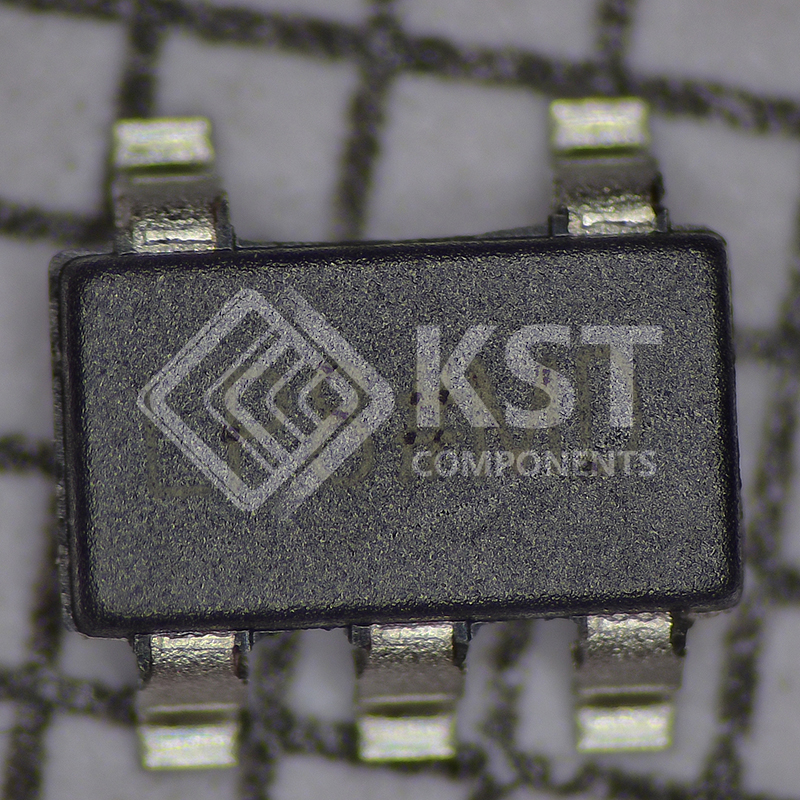

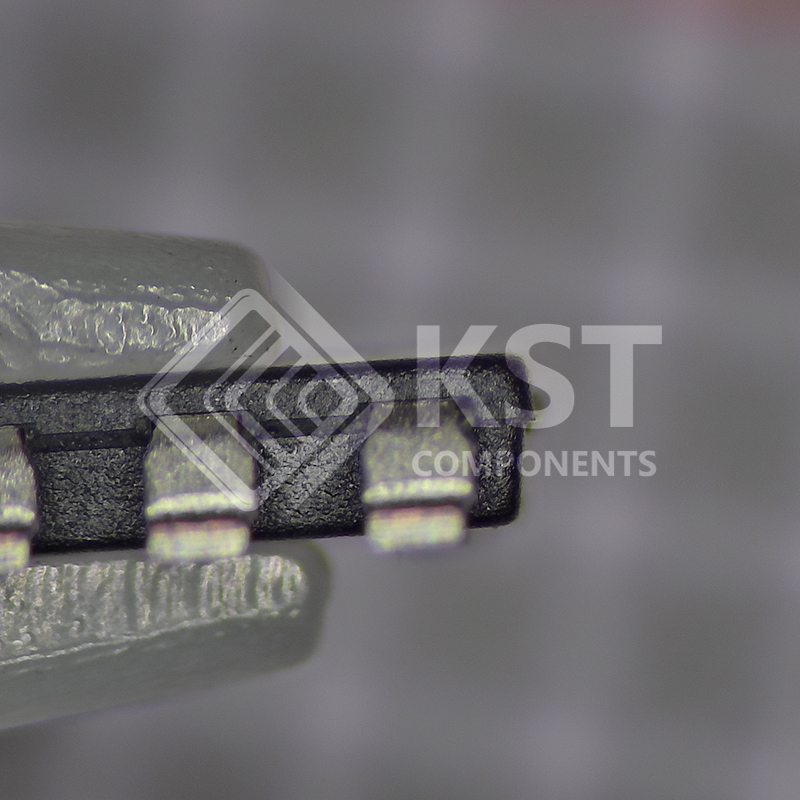

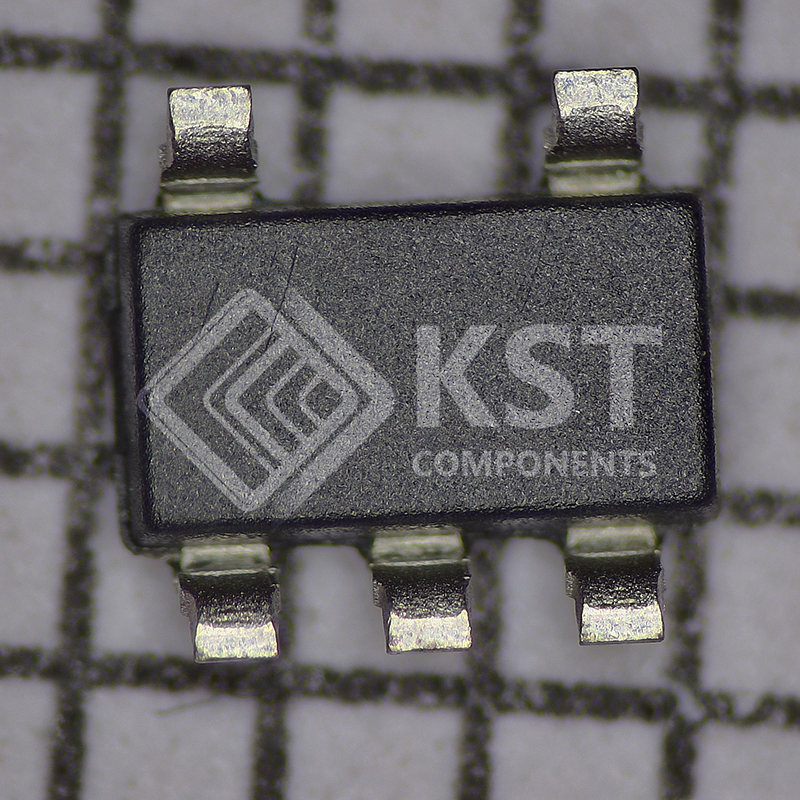

ADP7142AUJZ-5.0-R7

IC REG LINEAR 5V 200MA TSOT-23-5


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Integrated Circuits (ICs)
    Power Management (PMIC)
    Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
    Mfr
    Analog Devices Inc.
    Series
    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Output Configuration
    Positive
    Output Type
    Fixed
    Number of Regulators
    1
    Voltage – Input (Max)
    40V
    Voltage – Output (Min/Fixed)
    5V
    Voltage – Output (Max)
    Voltage Dropout (Max)
    0.42V @ 200mA
    Current – Output
    200mA
    Current – Quiescent (Iq)
    140 µA
    Current – Supply (Max)
    320 µA
    PSRR
    88dB ~ 50dB (10kHz ~ 1MHz)
    Control Features
    Enable
    Protection Features
    Over Temperature, Short Circuit
    Operating Temperature
    -40°C ~ 125°C
    Mounting Type
    Surface Mount
    Package / Case
    SOT-23-5 Thin, TSOT-23-5
    Supplier Device Package
    TSOT-23-5
    Base Product Number
    ADP7142
