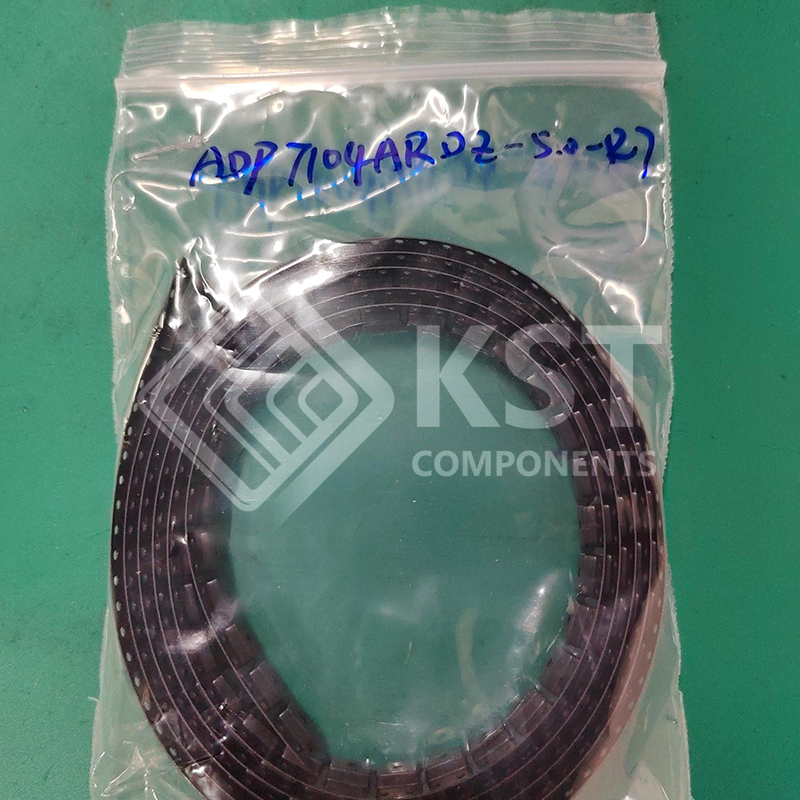

ADP7104ARDZ-5.0-R7
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
Analog Devices Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|

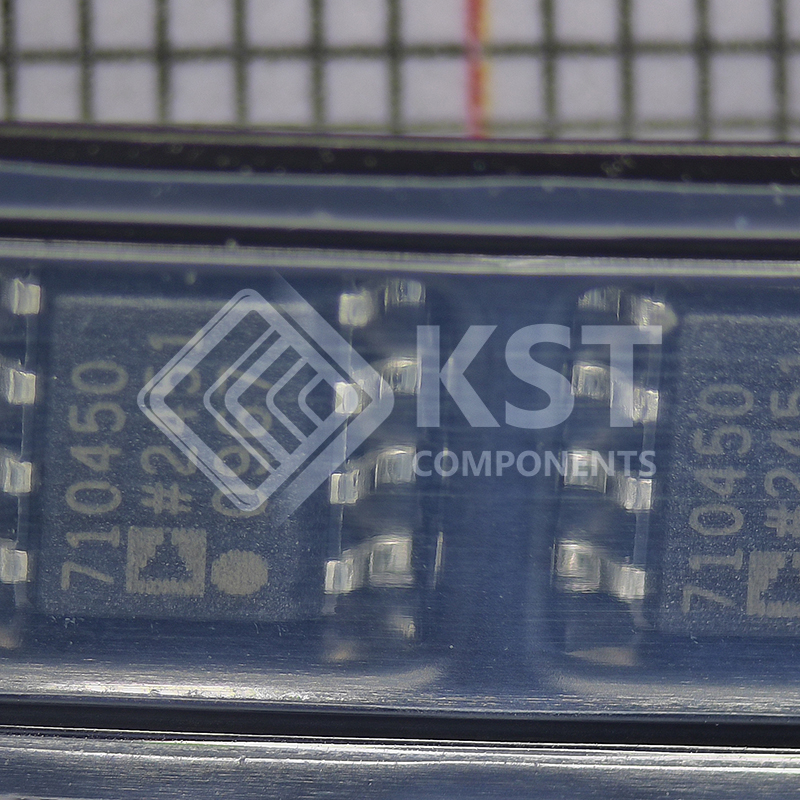

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
20V
|
|
|
Voltage – Output (Min/Fixed)
|
5V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
0.55V @ 500mA
|
|
|
Current – Output
|
500mA
|
|
|
Current – Quiescent (Iq)
|
900 µA
|
|
|
Current – Supply (Max)
|
1.6 mA
|
|
|
PSRR
|
60dB ~ 50dB (10kHz ~ 100kHz)
|
|
|
Control Features
|
Enable, Power Good, Under Voltage Lockout
|
|
|
Protection Features
|
Over Temperature, Short Circuit
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

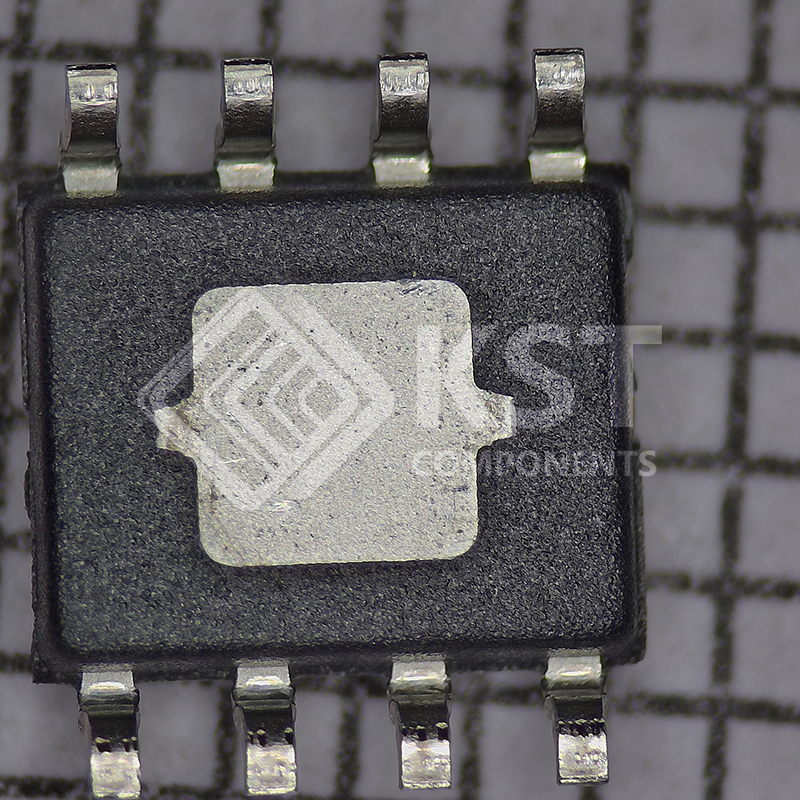

8-SOIC (0.154″, 3.90mm Width) Exposed Pad
|
|
|
Supplier Device Package
|
8-SOIC-EP
|
|
|
Base Product Number
|
ADP7104
|
