ADF7242BCPZ-RL
INQUIRY ONLINE
|
Category
|
RF and Wireless
RF Transceiver ICs
|
|
|
Mfr
|
Analog Devices Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|

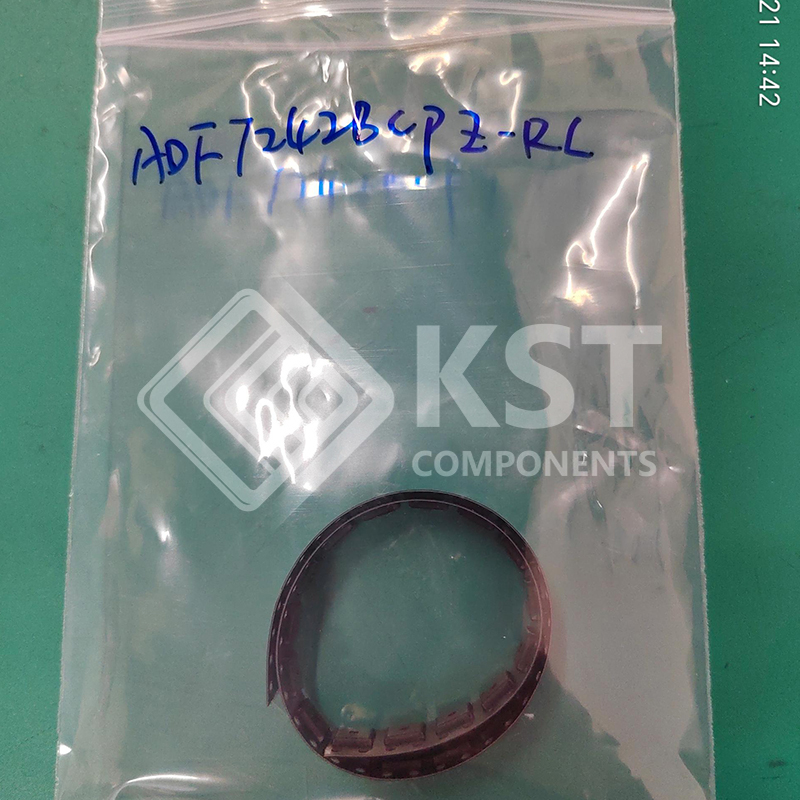

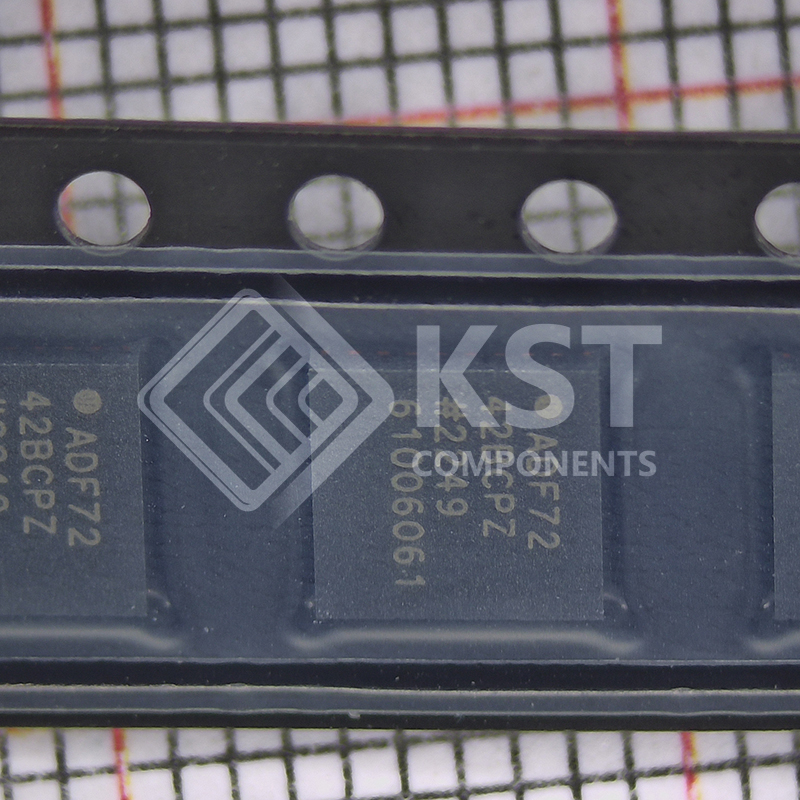

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
DigiKey Programmable
|
Not Verified
|
|
|
Type
|
TxRx + MCU
|
|
|
RF Family/Standard
|
802.15.4
|
|
|
Protocol
|
–
|
|
|
Modulation
|
DSSS, GSK, GFSK, GMSK, MSK, O-QPSK
|
|
|
Frequency
|
2.4GHz
|
|
|
Data Rate (Max)
|
2Mbps
|
|
|
Power – Output
|
4.8dBm
|
|
|
Sensitivity
|
-96dBm
|
|
|
Memory Size
|
4kB ROM, 2.5kB RAM
|
|
|
Serial Interfaces
|
SPI
|
|
|
GPIO
|
7
|
|
|
Voltage – Supply
|
1.8V ~ 3.6V
|
|
|
Current – Receiving
|
19mA
|
|
|
Current – Transmitting
|
16.5mA ~ 25mA
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

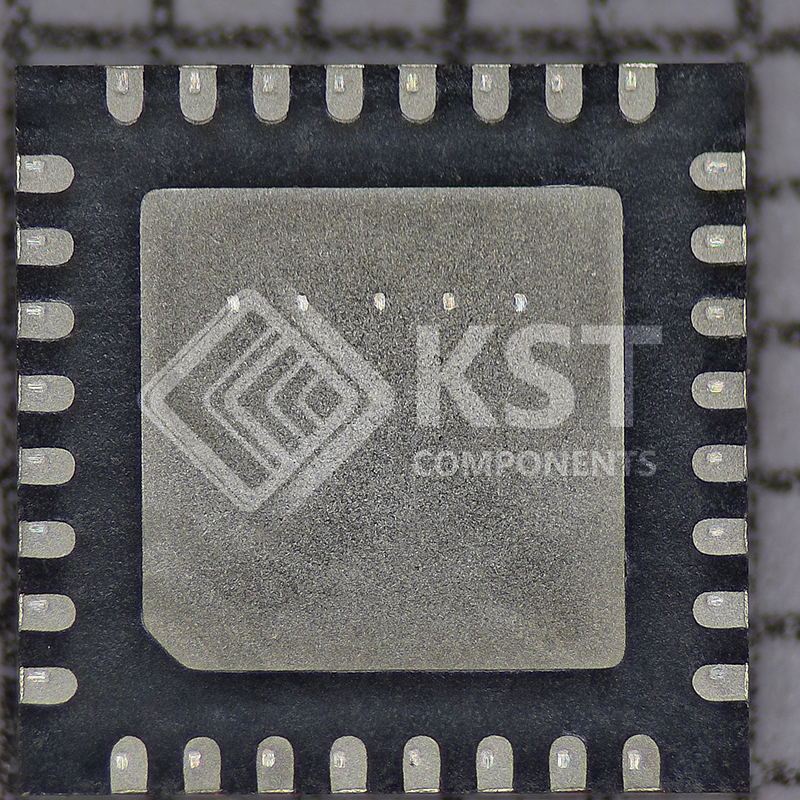

32-WFQFN Exposed Pad, CSP
|
|
|
Supplier Device Package
|
32-LFCSP (5×5)
|
|
|
Base Product Number
|
ADF7242
|
