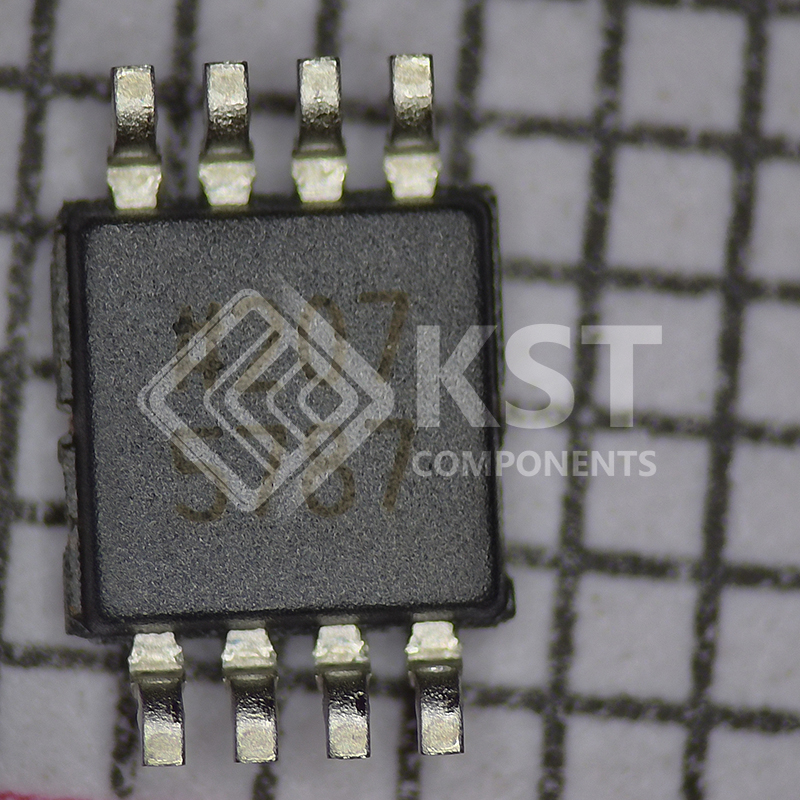

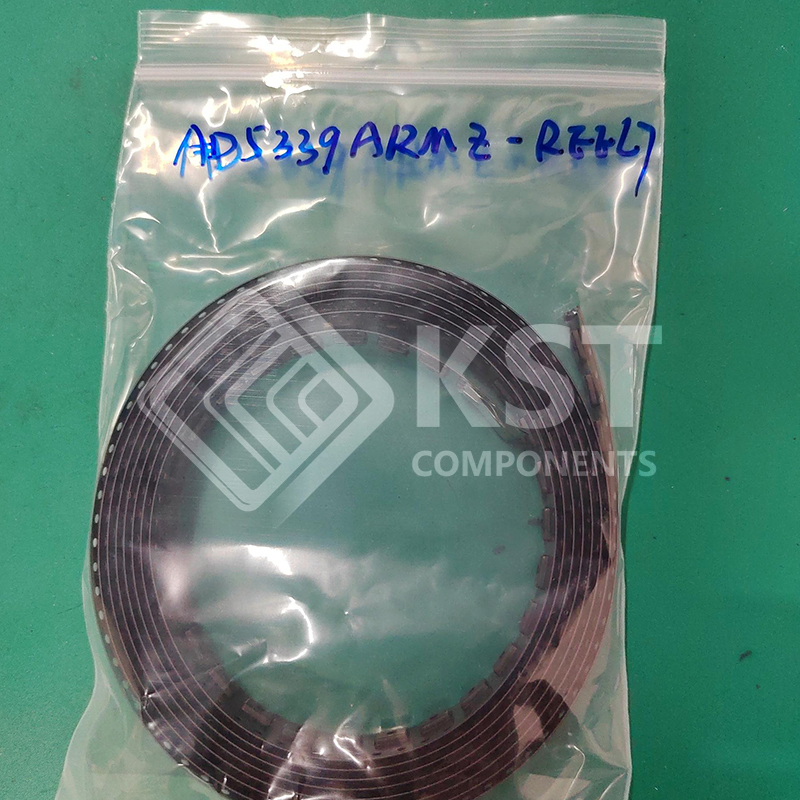

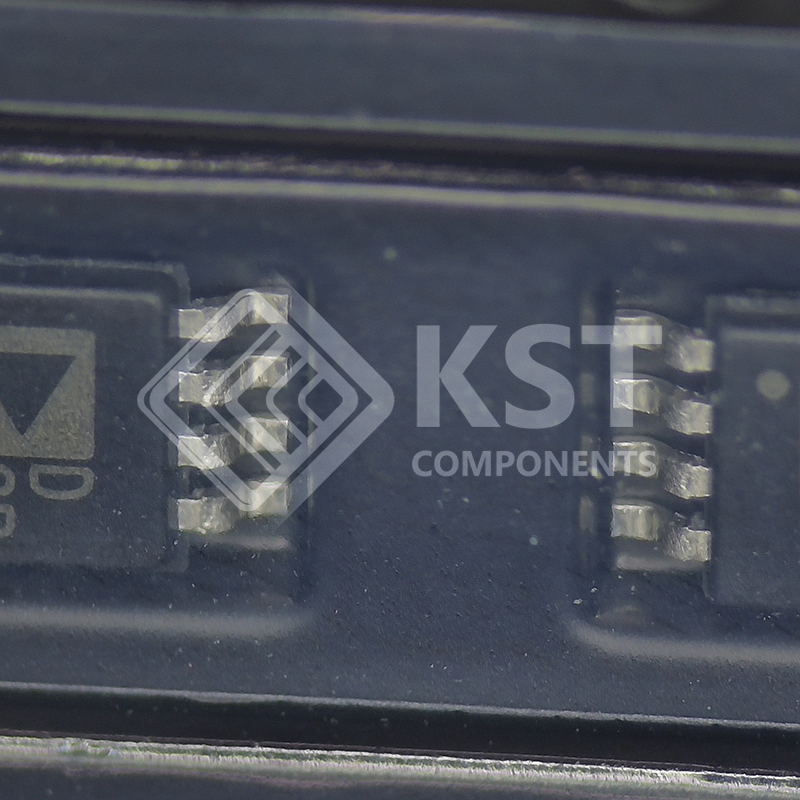

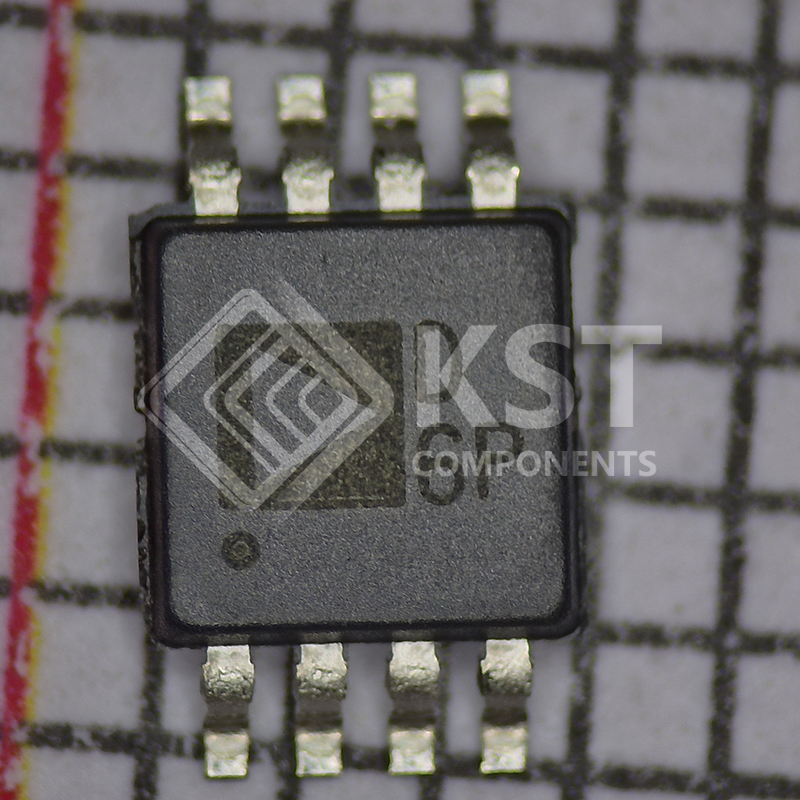

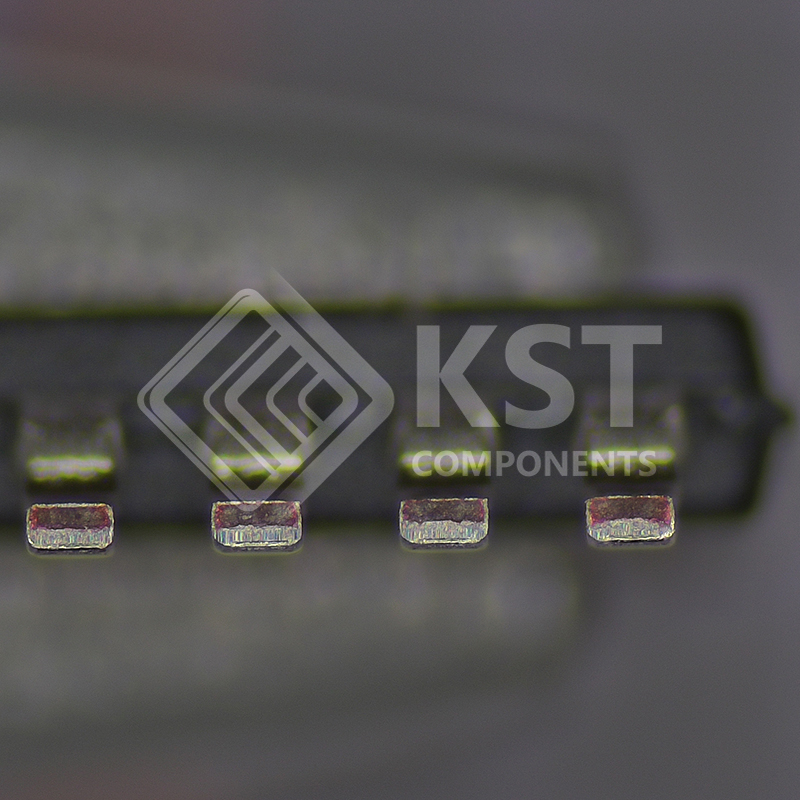

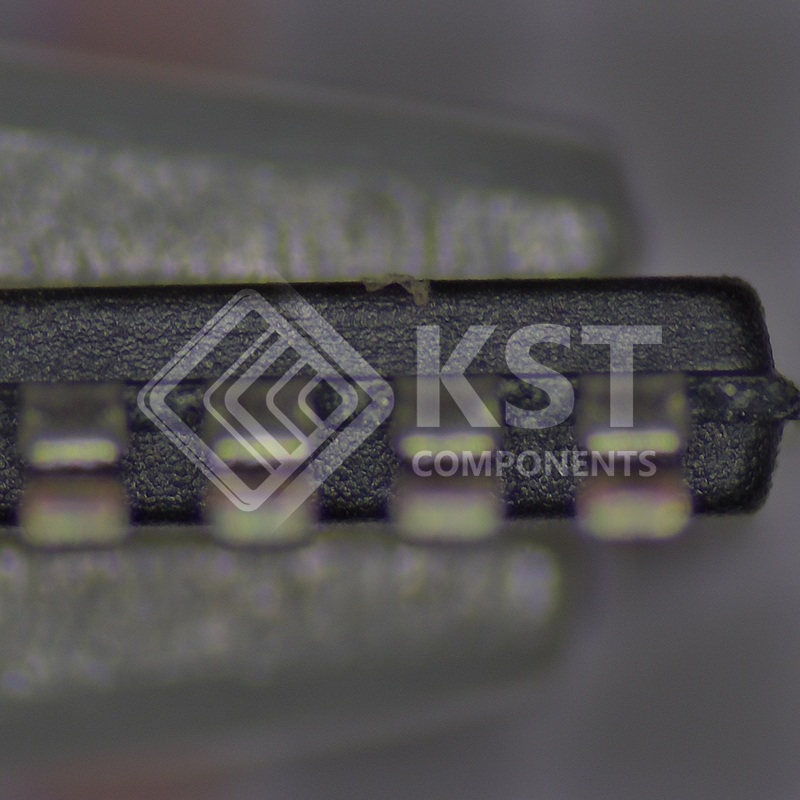

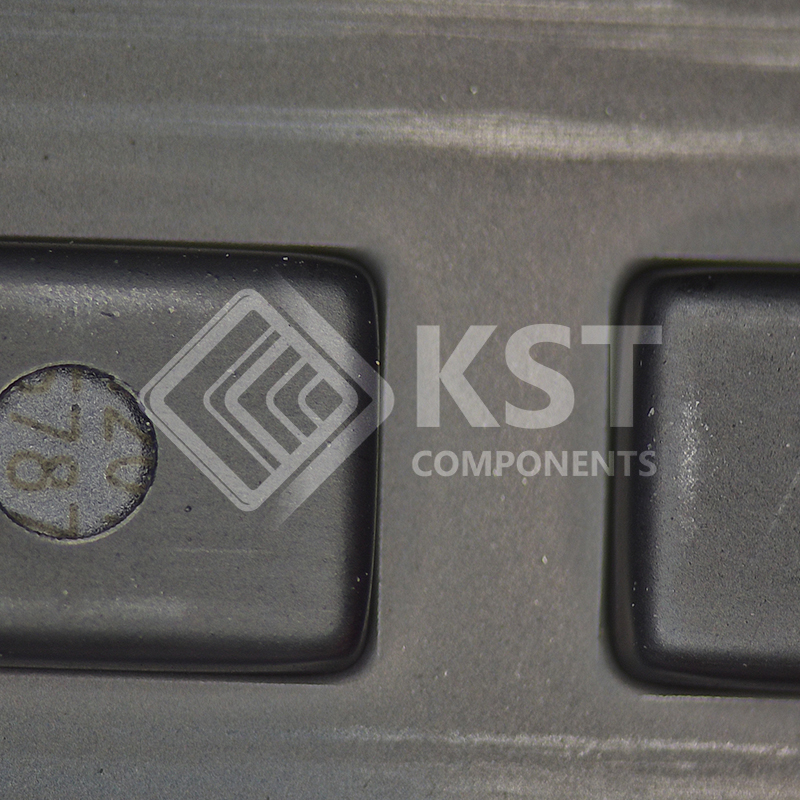

AD5339ARMZ-REEL7
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Data Acquisition
Digital to Analog Converters (DAC)
|
|
|
Manufacturer
|
Analog Devices Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
DigiKey Programmable
|
Not Verified
|
|
|
Number of Bits
|
12
|
|
|
Number of D/A Converters
|
2
|
|
|
Settling Time
|
10µs
|
|
|
Output Type
|
Voltage – Buffered
|
|
|
Differential Output
|
No
|
|
|
Data Interface
|
I2C
|
|
|
Reference Type
|
External
|
|
|
Voltage – Supply, Analog
|
2.5V ~ 5.5V
|
|
|
Voltage – Supply, Digital
|
2.5V ~ 5.5V
|
|
|
INL/DNL (LSB)
|
±2, ±0.2
|
|
|
Architecture
|
String DAC
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118″, 3.00mm Width)
|
|
|
Supplier Device Package
|
8-MSOP
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Base Product Number
|
AD5339
|
