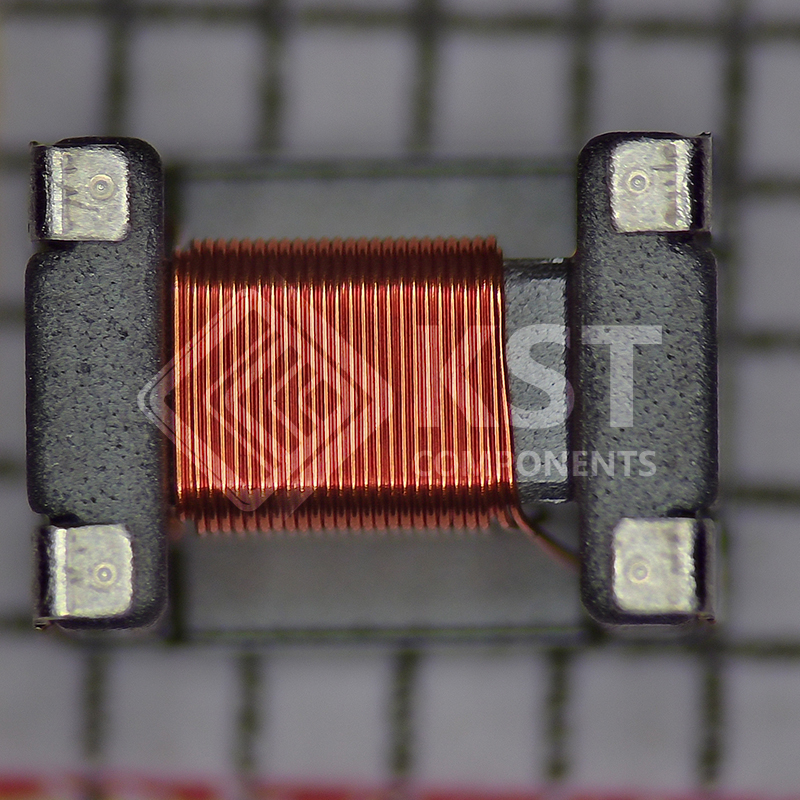

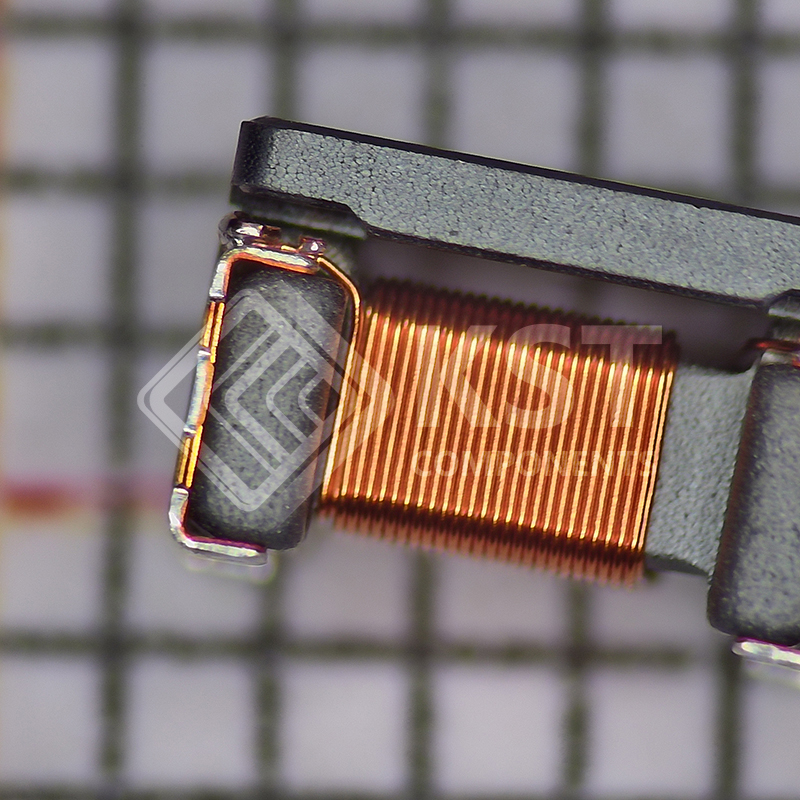

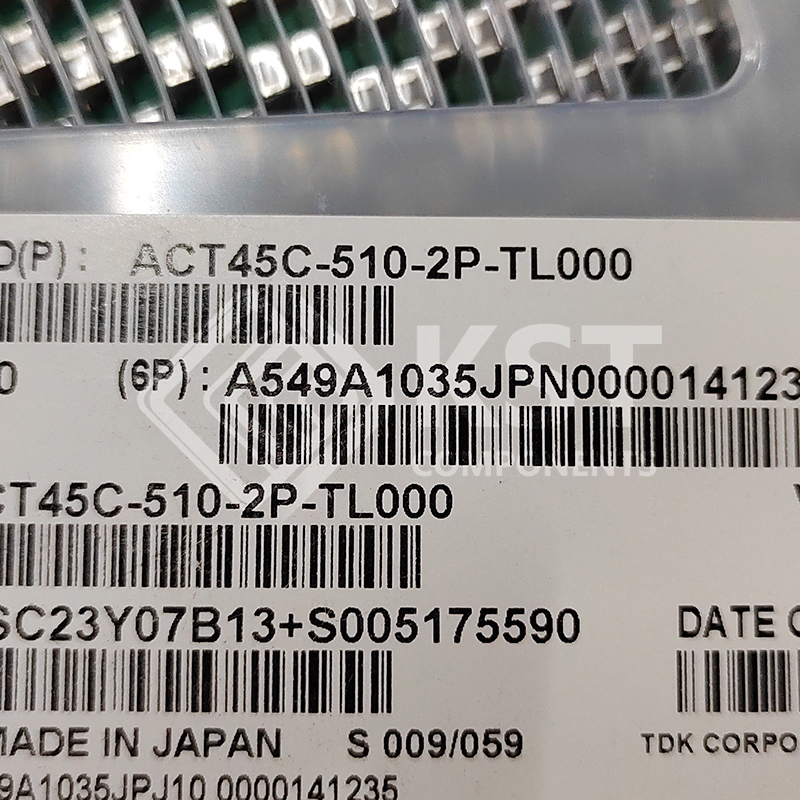

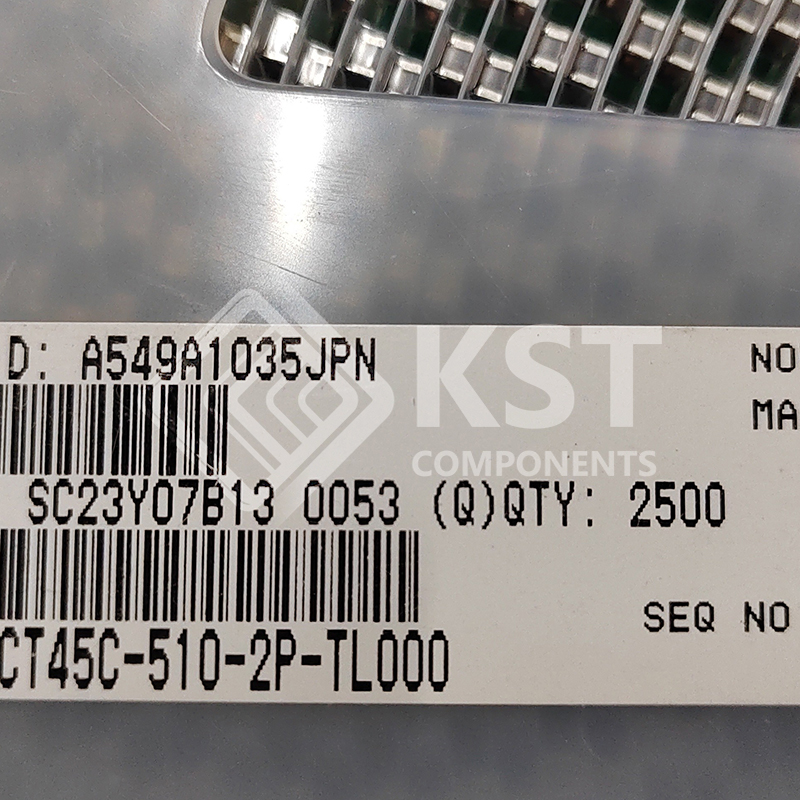

ACT45C-510-2P-TL000
INQUIRY ONLINE
|
Category
|
Filters
Common Mode Chokes
|
|
|
Manufacturer
|
TDK Corporation
|
|
|
Series
|
ACT45C
|
|
|
Packaging
|

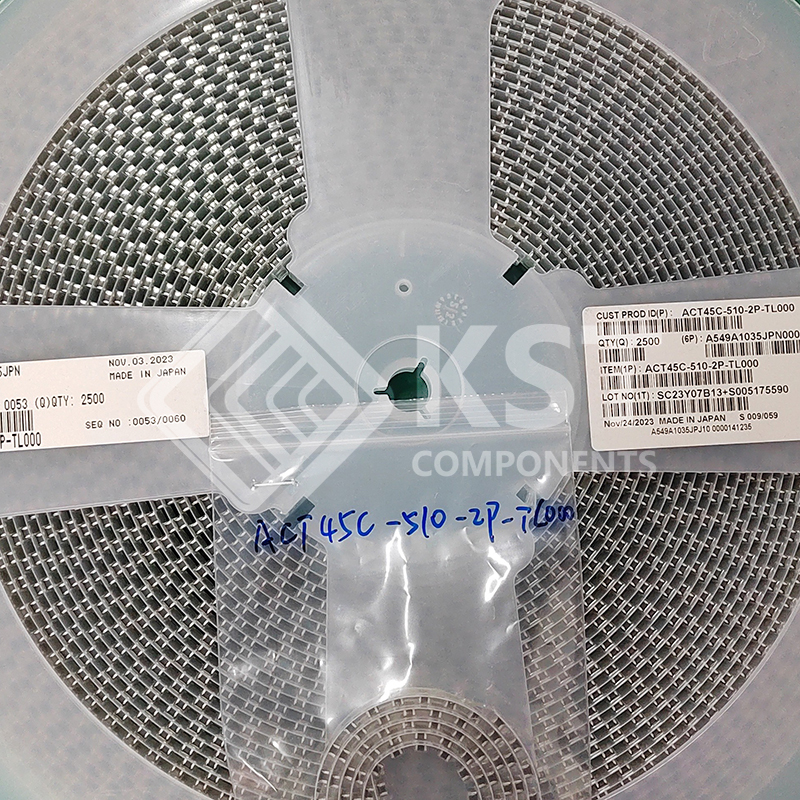

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Filter Type
|
–
|
|
|
Number of Lines
|
2
|
|
|
Impedance @ Frequency
|
2.8 kOhms @ 10 MHz
|
|
|
Inductance @ Frequency
|
51 µH @ 100 kHz
|
|
|
Current Rating (Max)
|
200mA
|
|
|
DC Resistance (DCR) (Max)
|
1Ohm
|
|
|
Voltage Rating – DC
|
50V
|
|
|
Voltage Rating – AC
|
–
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Approval Agency
|
–
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Size / Dimension
|
0.177″ L x 0.126″ W (4.50mm x 3.20mm)
|
|
|
Height (Max)
|
0.118″ (3.00mm)
|
|
|
Package / Case
|
Horizontal, 4 PC Pad
|
|
