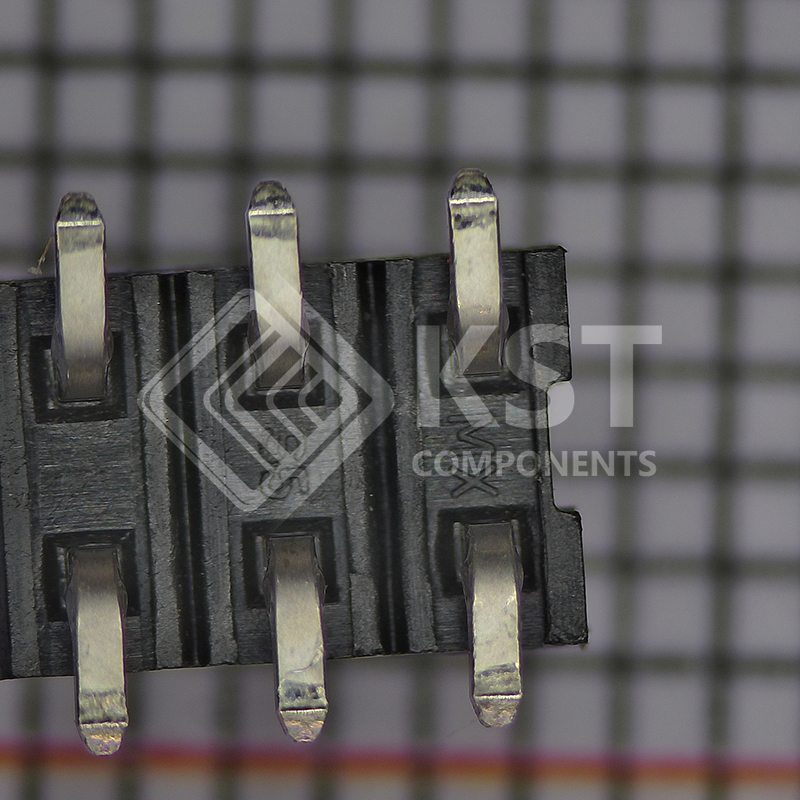

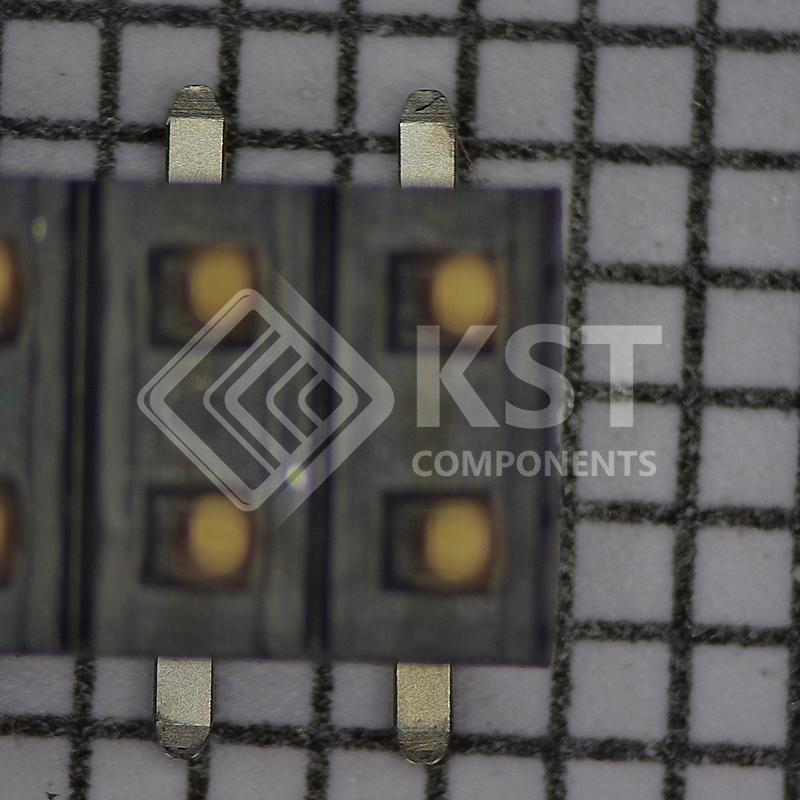

877590674
INQUIRY ONLINE
| Mfr | Molex |
| Series | Milli-Grid 87759 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch – Mating | 0.079″ (2.00mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.079″ (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length – Mating | 0.150″ (3.81mm) |
| Contact Length – Post | – |
| Overall Contact Length | – |
| Insulation Height | 0.059″ (1.50mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | 15.0µin (0.38µm) |
| Contact Finish – Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Pick and Place |
| Operating Temperature | – |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | – |
| Applications | Automotive, General Purpose, Telecommunications |
| Base Product Number | 87759 |
