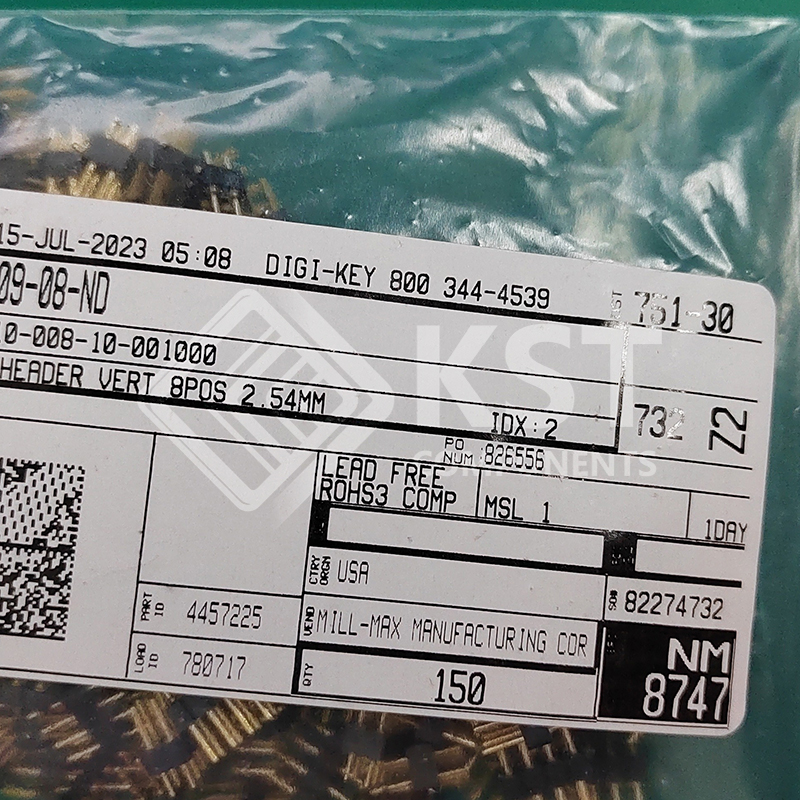

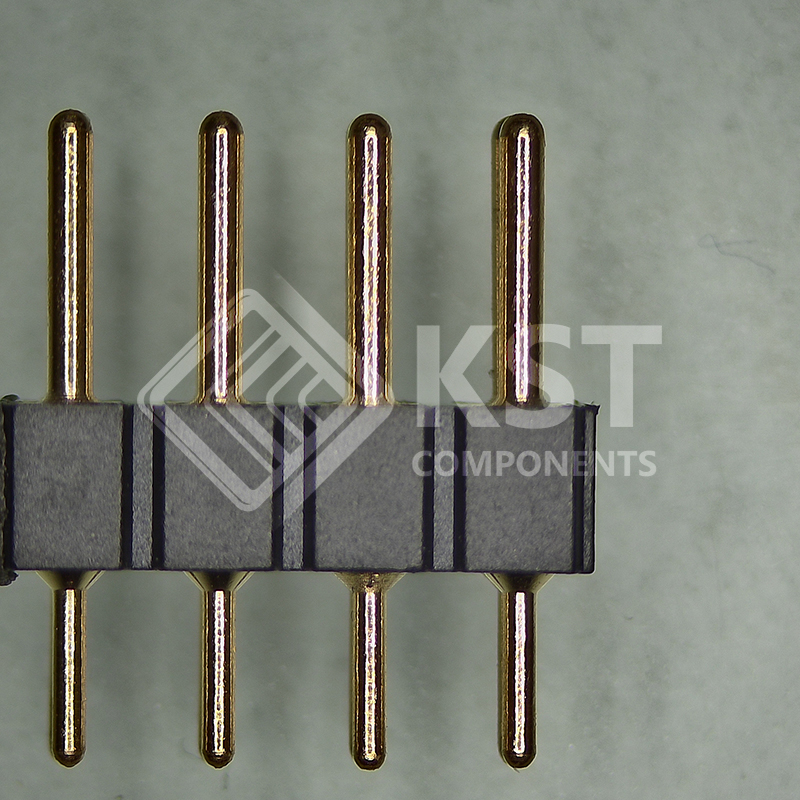

802-10-008-10-001000
INQUIRY ONLINE
| Mfr | Mill-Max Manufacturing Corp. |
| Series | 802 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.100″ (2.54mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length – Mating | 0.195″ (4.95mm) |
| Contact Length – Post | 0.118″ (3.00mm) |
| Overall Contact Length | 0.438″ (11.12mm) |
| Insulation Height | 0.110″ (2.79mm) |
| Contact Shape | Circular |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | 10.0µin (0.25µm) |
| Contact Finish – Post | Gold |
| Contact Material | Brass Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Features | – |
| Operating Temperature | – |
| Ingress Protection | – |
| Material Flammability Rating | – |
| Insulation Color | Black |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | 10.0µin (0.25µm) |
| Applications | – |
| Base Product Number | 802-10 |
