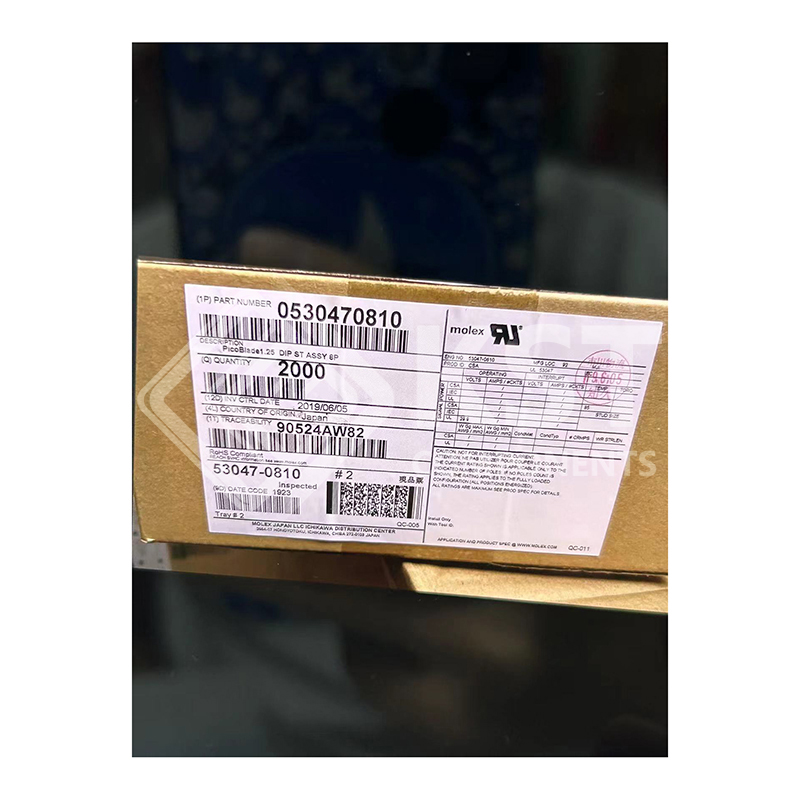

530470810
INQUIRY ONLINE
| Mfr | Molex |
| Series | PicoBlade 53047 |

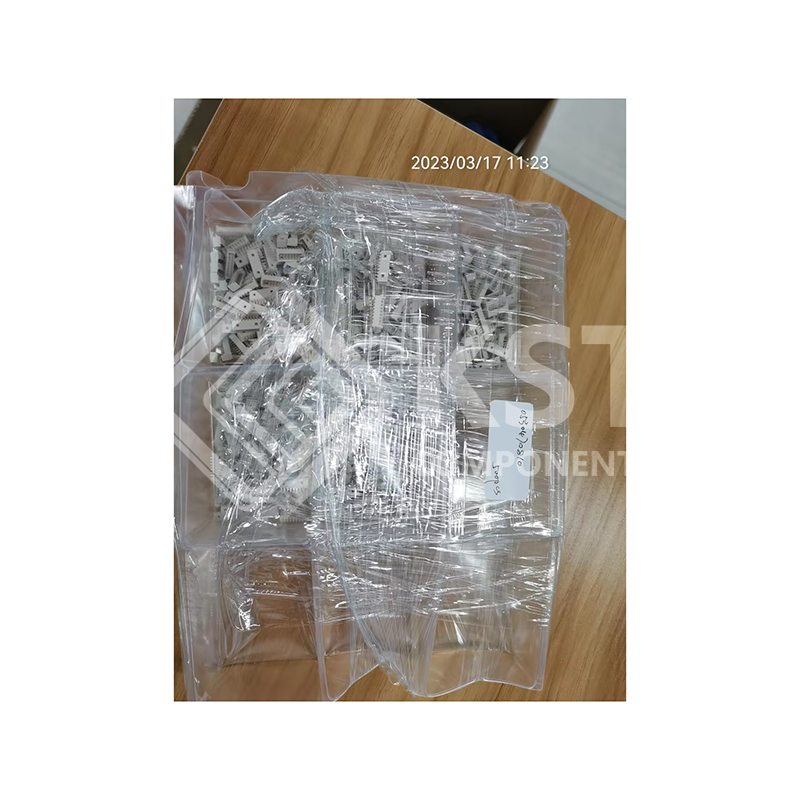

| Packaging | Tray |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch – Mating | 0.049″ (1.25mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing – Mating | – |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length – Mating | 0.089″ (2.25mm) |
| Contact Length – Post | 0.091″ (2.30mm) |
| Overall Contact Length | – |
| Insulation Height | 0.165″ (4.20mm) |
| Contact Shape | Rectangular |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | 35.4µin (0.90µm) |
| Contact Finish – Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | – |
| Operating Temperature | – |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | – |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 53047 |
