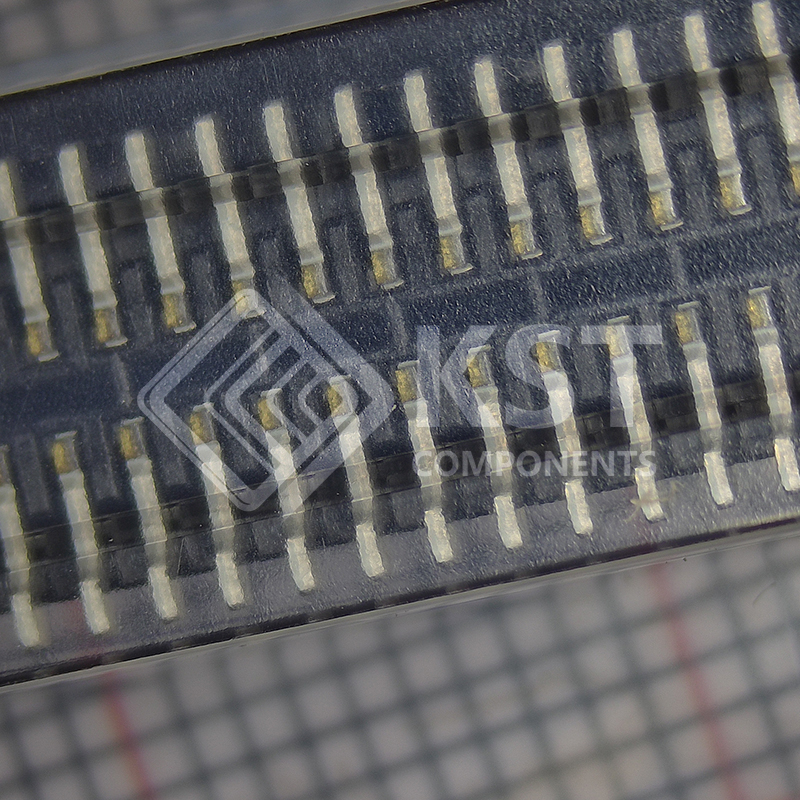

5054334271
INQUIRY ONLINE
| Mfr | Molex |
| Series | Micro-Lock PLUS 505433 |

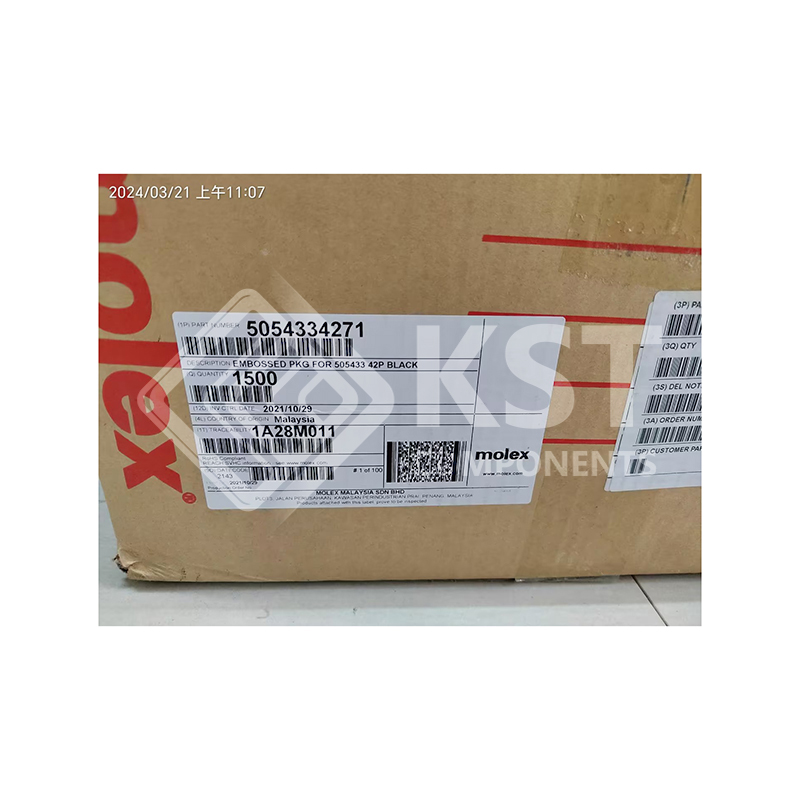

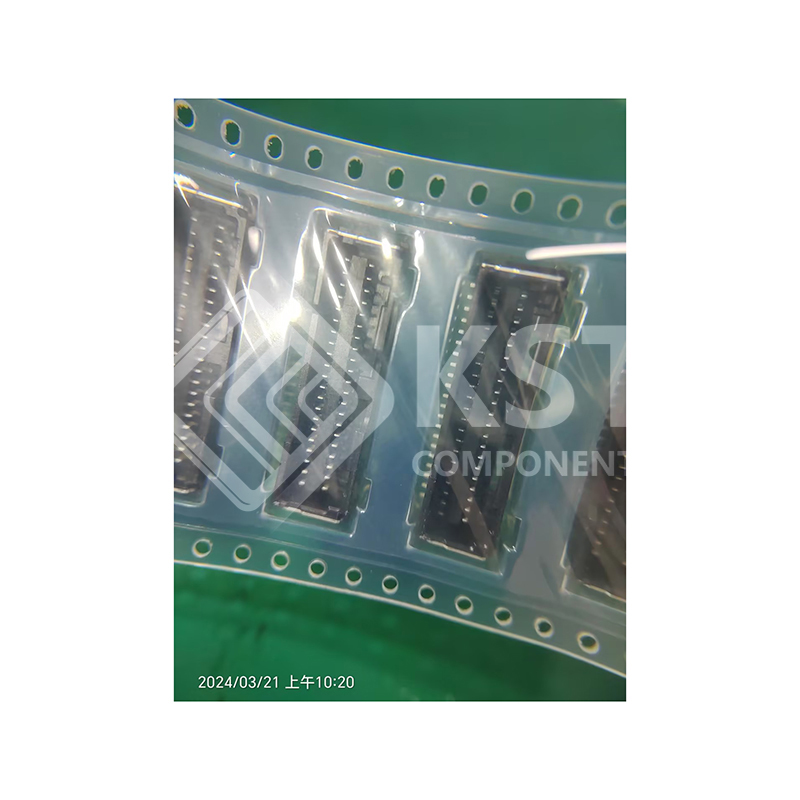

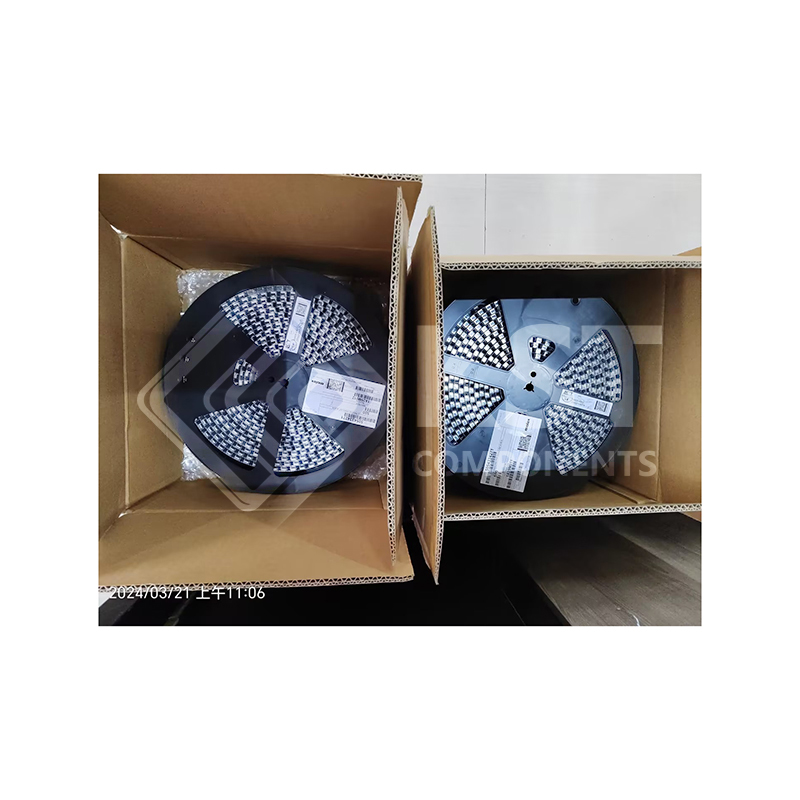

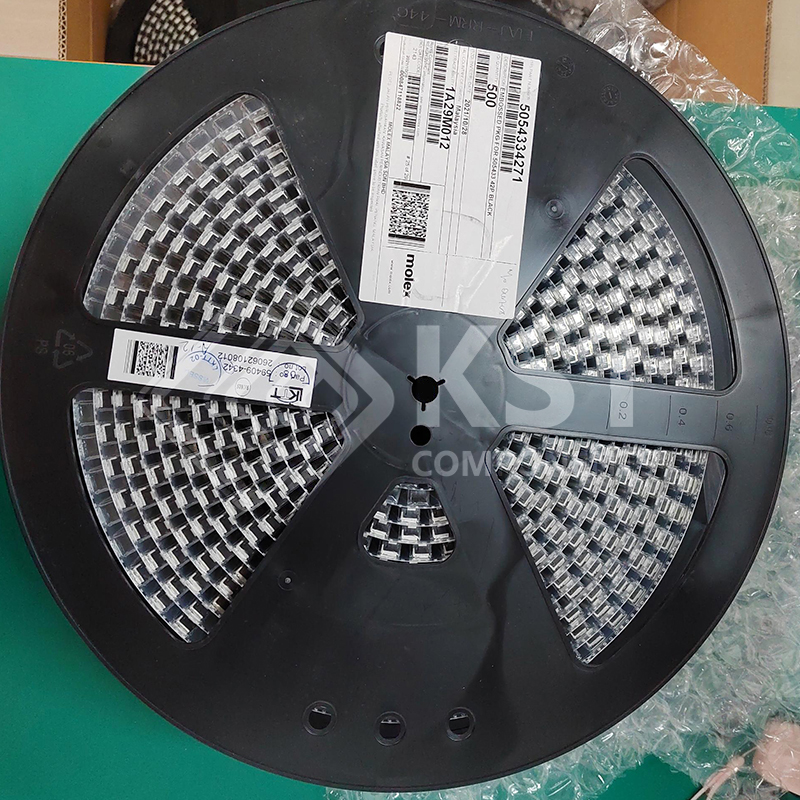

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.049″ (1.25mm) |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Row Spacing – Mating | – |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length – Mating | – |
| Contact Length – Post | – |
| Overall Contact Length | – |
| Insulation Height | 0.285″ (7.25mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | 39.4µin (1.00µm) |
| Contact Finish – Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 50VAC/DC |
| Mated Stacking Heights | 8.6mm |
| Contact Finish Thickness – Post | 39.4µin (1.00µm) |
| Applications | Automotive, General Purpose, Industrial |
| Base Product Number | 505433 |
