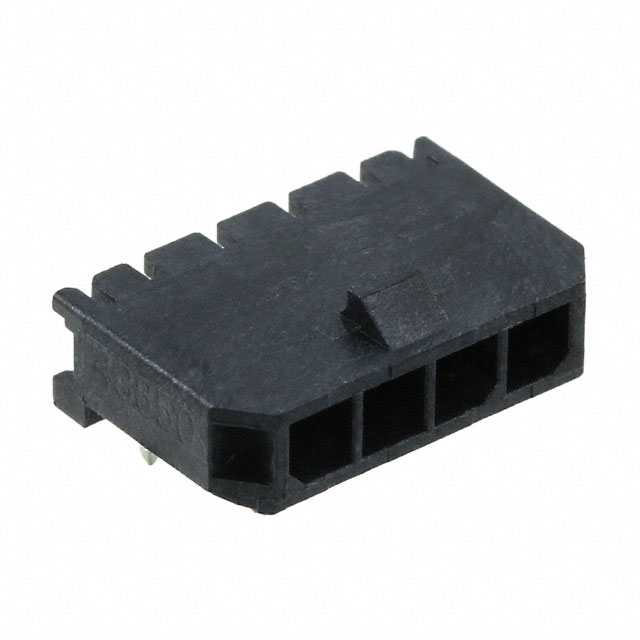

436500400
INQUIRY ONLINE
| Mfr | Molex |
| Series | Micro-Fit 3.0 43650 |
| Packaging | Tray |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.118″ (3.00mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing – Mating | – |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length – Mating | – |
| Contact Length – Post | 0.125″ (3.18mm) |
| Overall Contact Length | – |
| Insulation Height | 0.172″ (4.37mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | 60.0µin (1.52µm) |
| Contact Finish – Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Lock |
| Operating Temperature | – |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | – |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Base Product Number | 43650 |
