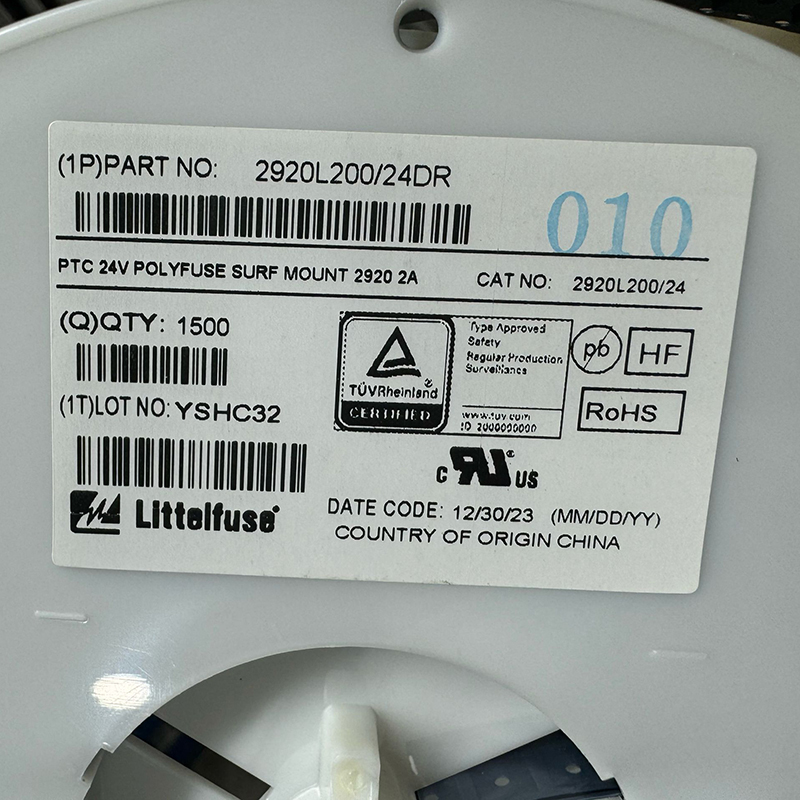

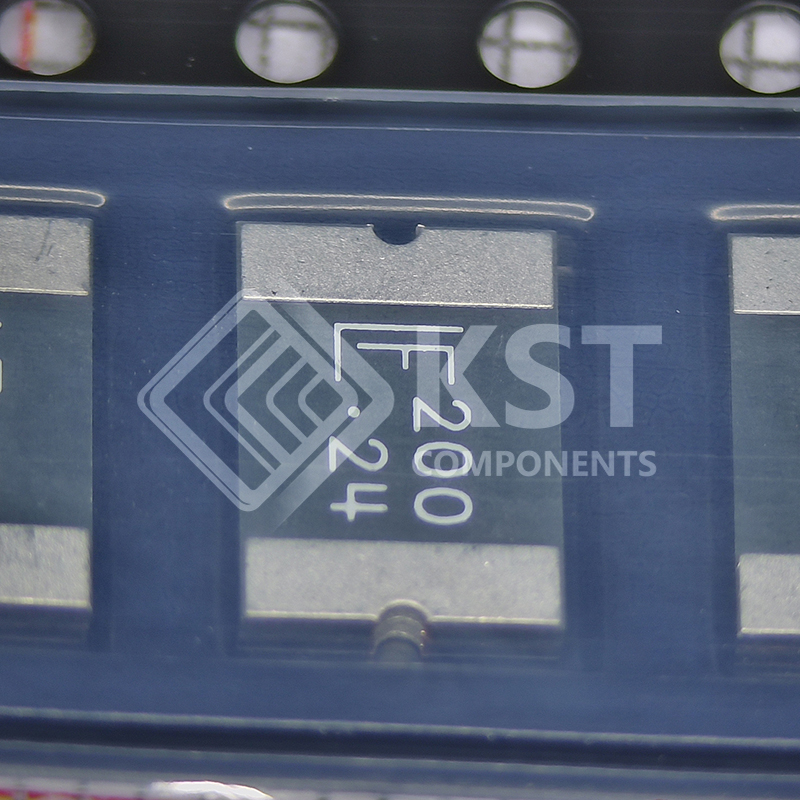

2920L200/24DR
INQUIRY ONLINE
|
Category
|
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer
|
Littelfuse Inc.
|
|
|
Series
|
POLY-FUSE®, 2920L
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Polymeric
|
|
|
Voltage – Max
|
24V
|
|
|
Current – Hold (Ih) (Max)
|
2 A
|
|
|
Current – Trip (It)
|
4 A
|
|
|
Current – Max
|
40 A
|
|
|
Time to Trip
|
5 s
|
|
|
Resistance – Initial (Ri) (Min)
|
50 mOhms
|
|
|
Resistance – Post Trip (R1) (Max)
|
125 mOhms
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Ratings
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
2920 (7351 Metric), Concave
|
|
|
Size / Dimension
|
0.289″ L x 0.202″ W (7.35mm x 5.12mm)
|
|
|
Height – Seated (Max)
|
–
|
|
|
Thickness (Max)
|
0.049″ (1.25mm)
|
|
|
Lead Spacing
|
–
|
|
|
Approval Agency
|
cURus, TUV
|
