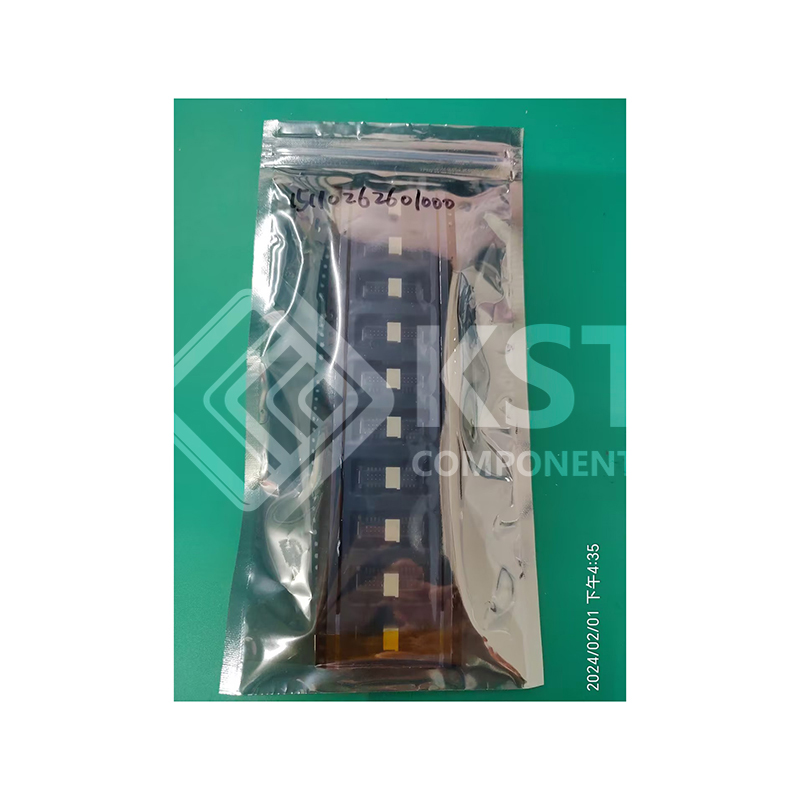

15110262601000
INQUIRY ONLINE
| Mfr | HARTING |
| Series | har-flex® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.050″ (1.27mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.050″ (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length – Mating | 0.157″ (4.00mm) |
| Contact Length – Post | – |
| Overall Contact Length | – |
| Insulation Height | 0.260″ (6.60mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | – |
| Contact Finish – Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | – |
| Applications | – |
