Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|

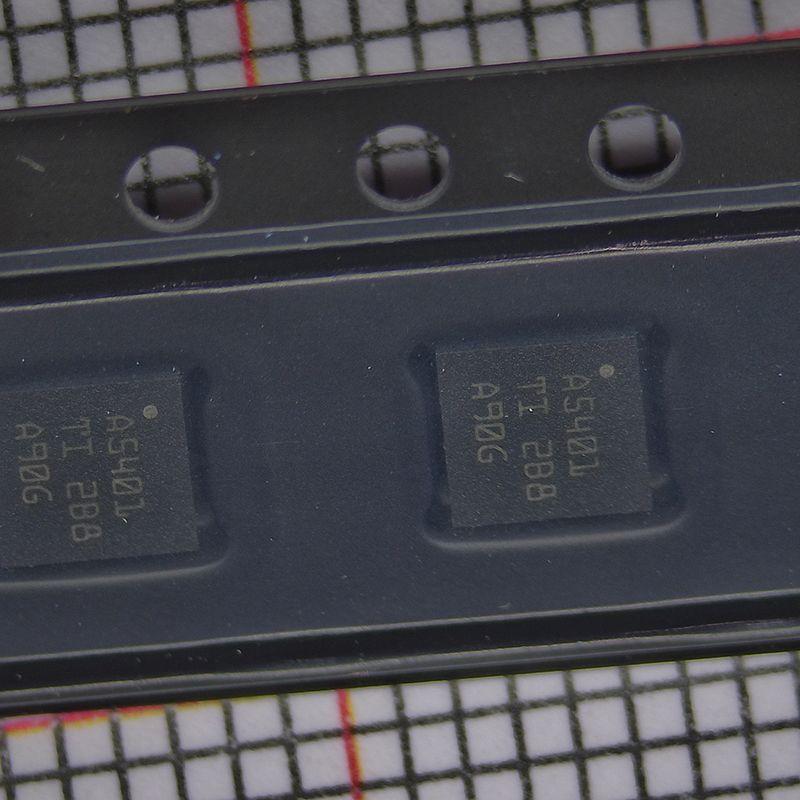

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
6.5V
|
|
|
Voltage - Output (Min/Fixed) |
0.8V
|
|
|
Voltage - Output (Max) |
5.1V |
|
|
Voltage Dropout (Max) |
0.51V @ 4A
|
|
|
Current - Output |
4A |
|
|
PSRR |
42dB ~ 25dB (10kHz ~ 500kHz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Temperature, Reverse Polarity
|
|
|
Operating Temperature |
-40°C ~ 150°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|

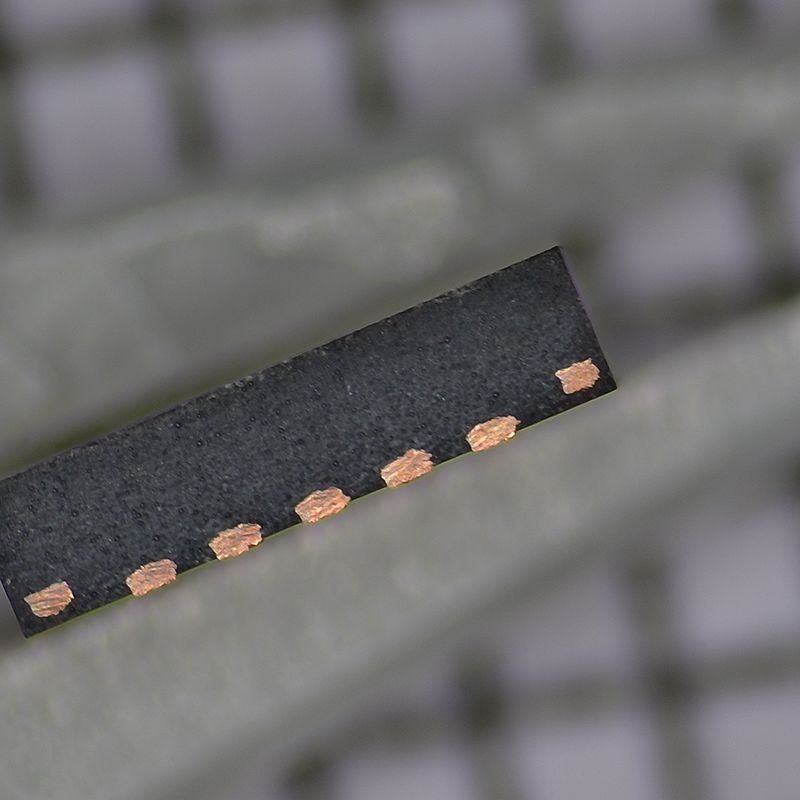

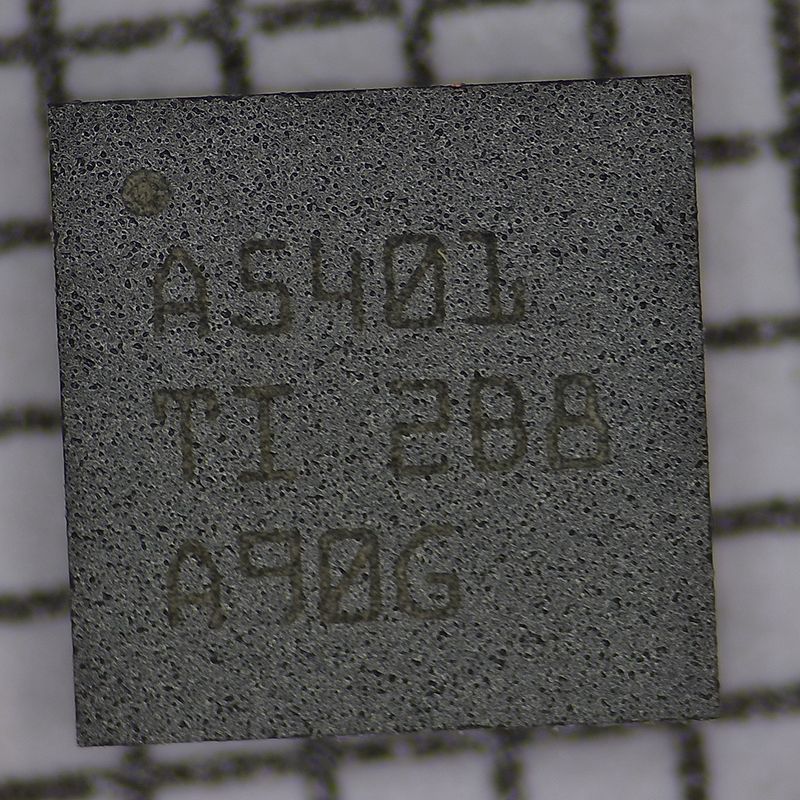

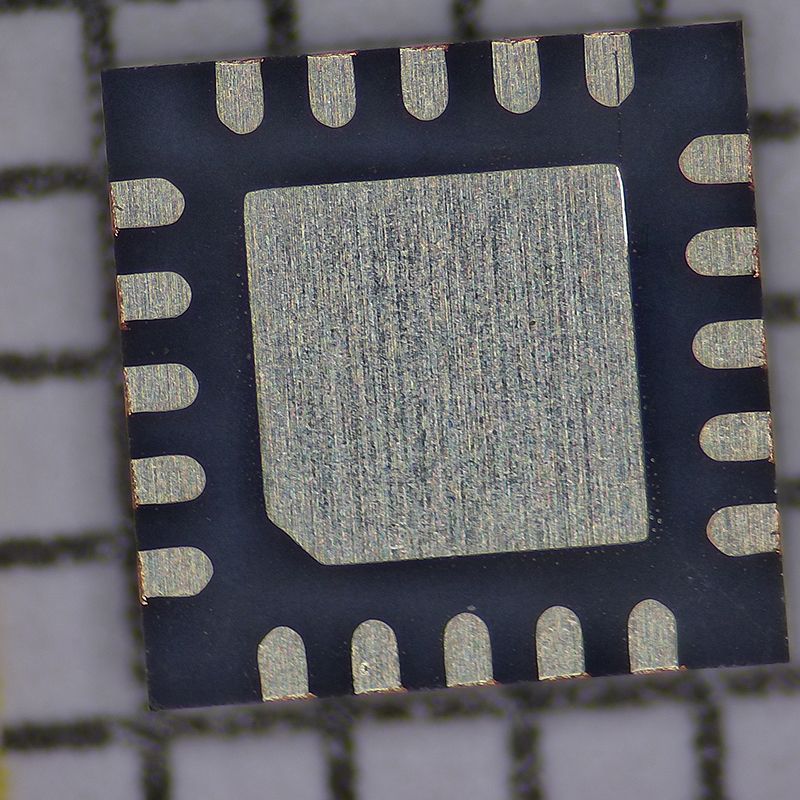

Package / Case |
20-VFQFN Exposed Pad
|
|
|
Supplier Device Package |
20-VQFN (3.5x3.5)
|
|
|
Base Product Number |
TPS7A5401 |
