Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
Eco-Mode™ |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Function |
Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Buck |
|
|
Output Type |
Adjustable |
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
4.5V
|
|
|
Voltage - Input (Max) |
42V
|
|
|
Voltage - Output (Min/Fixed) |
0.8V |
|
|
Voltage - Output (Max) |
41.1V
|
|
|
Current - Output |
3.5A |
|
|
Frequency - Switching |
100kHz ~ 2.5MHz
|
|
|
Synchronous Rectifier |
No
|
|
|
Operating Temperature |
-40°C ~ 150°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|

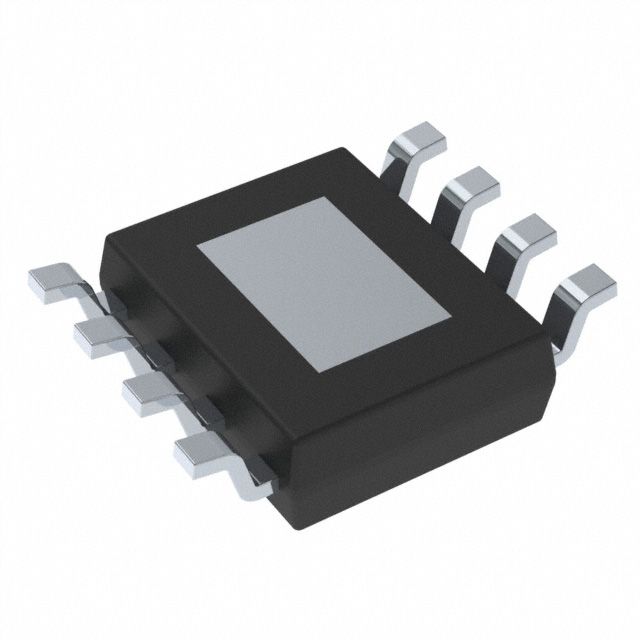

Package / Case |
8-PowerSOIC (0.154", 3.90mm Width) |
|
|
Supplier Device Package |
8-SO PowerPad
|
|
|
Base Product Number |
TPS54340 |
