Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|

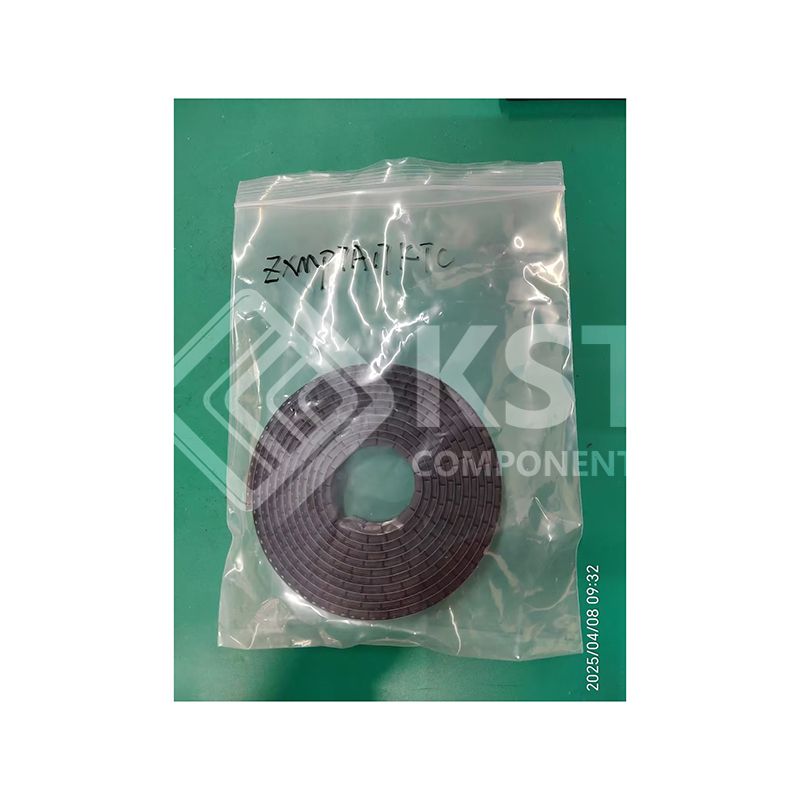

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
70 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
3.8A (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
160mOhm @ 2.1A, 10V
|
|
|
Vgs(th) (Max) @ Id |
1V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
18 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
635 pF @ 40 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
2.11W (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
TO-252-3
|
|
|
Package / Case |
TO-252-3, DPAK (2 Leads + Tab), SC-63 |
|
|
Base Product Number |
ZXMP7A17 |
