Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|

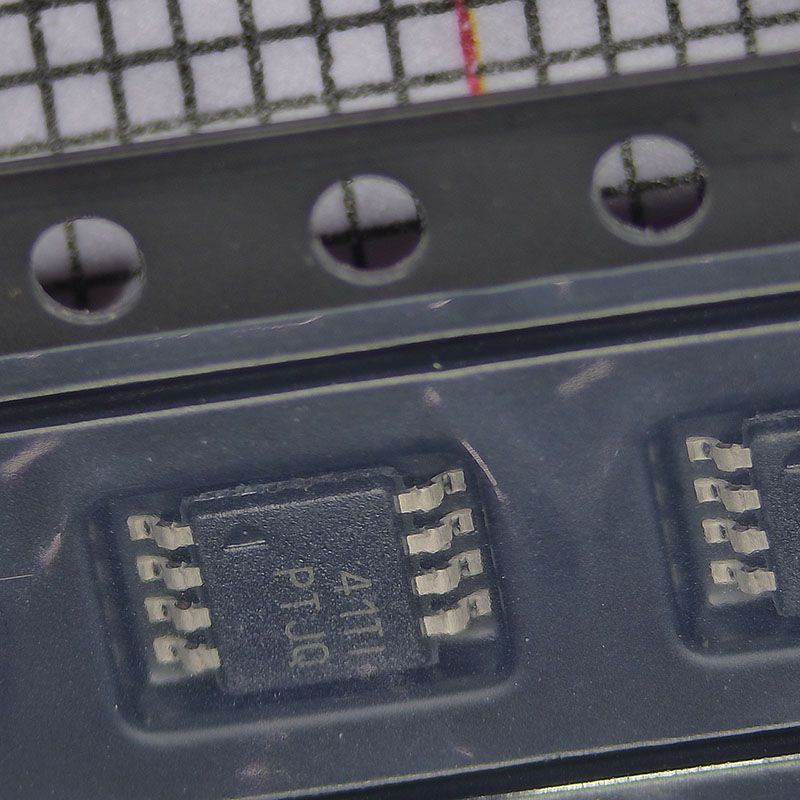

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
35V
|
|
|
Voltage - Output (Min/Fixed) |
1.194V
|
|
|
Voltage - Output (Max) |
33V |
|
|
Voltage Dropout (Max) |
0.6V @ 150mA
|
|
|
Current - Output |
150mA |
|
|
Current - Quiescent (Iq) |
100 µA
|
|
|
Current - Supply (Max) |
800 µA
|
|
|
PSRR |
72dB (120Hz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

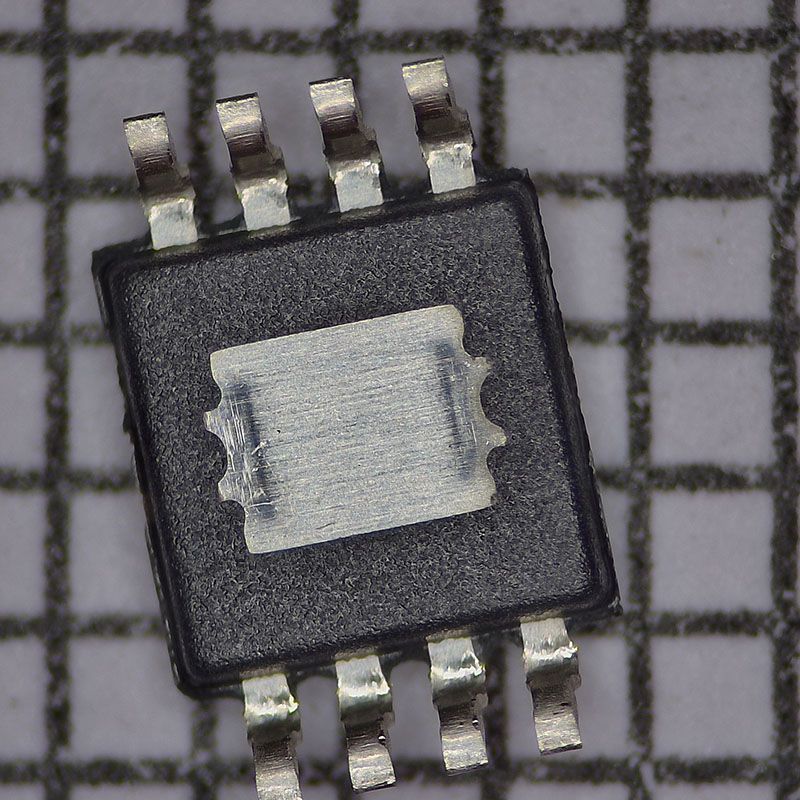

8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
|
|
|
Supplier Device Package |
8-HVSSOP
|
|
|
Base Product Number |

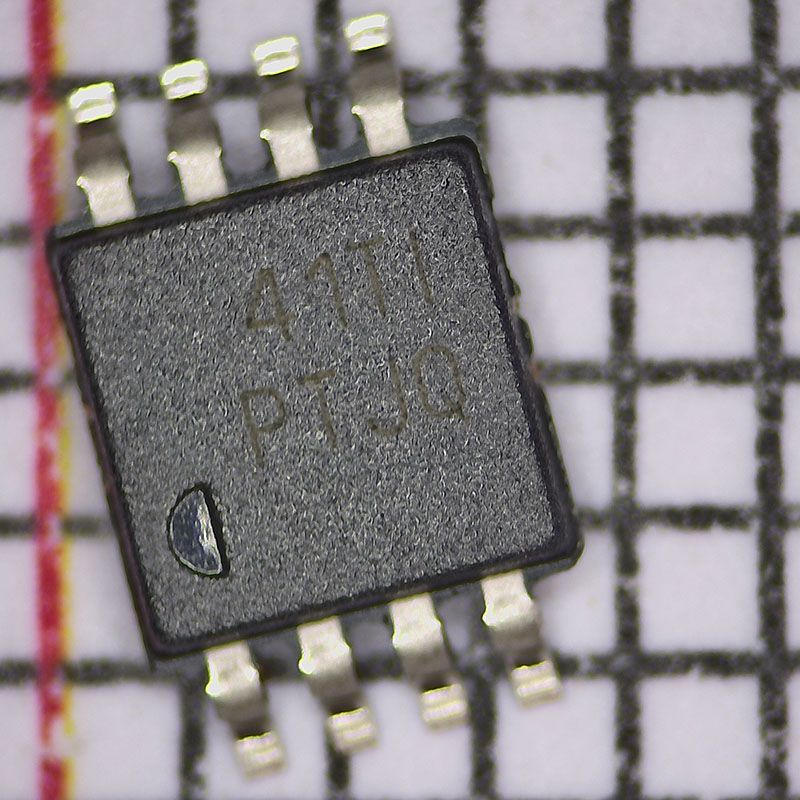

TPS7A4901 |
