Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|
Packaging |

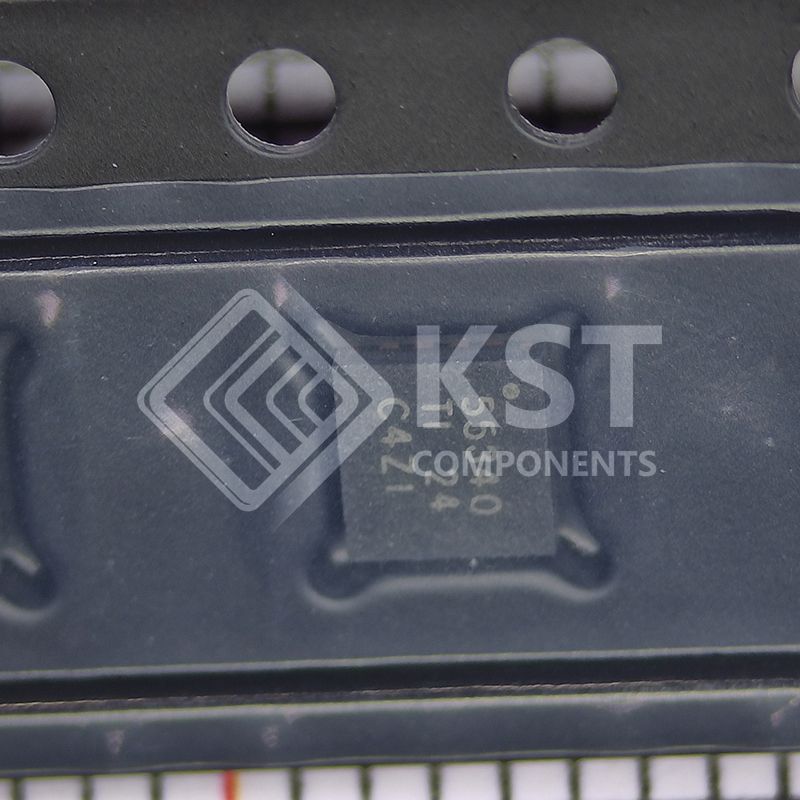

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Function |
Step-Up
|
|
|
Output Configuration |
Positive, Isolation Capable
|
|
|
Topology |
Boost |
|
|
Output Type |
Adjustable |
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
2.9V
|
|
|
Voltage - Input (Max) |
32V
|
|
|
Voltage - Output (Min/Fixed) |
2.9V |
|
|
Voltage - Output (Max) |
38V
|
|
|
Current - Output |
5.25A (Switch) |
|
|
Frequency - Switching |
94kHz ~ 1.14MHz
|
|
|
Synchronous Rectifier |
No
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

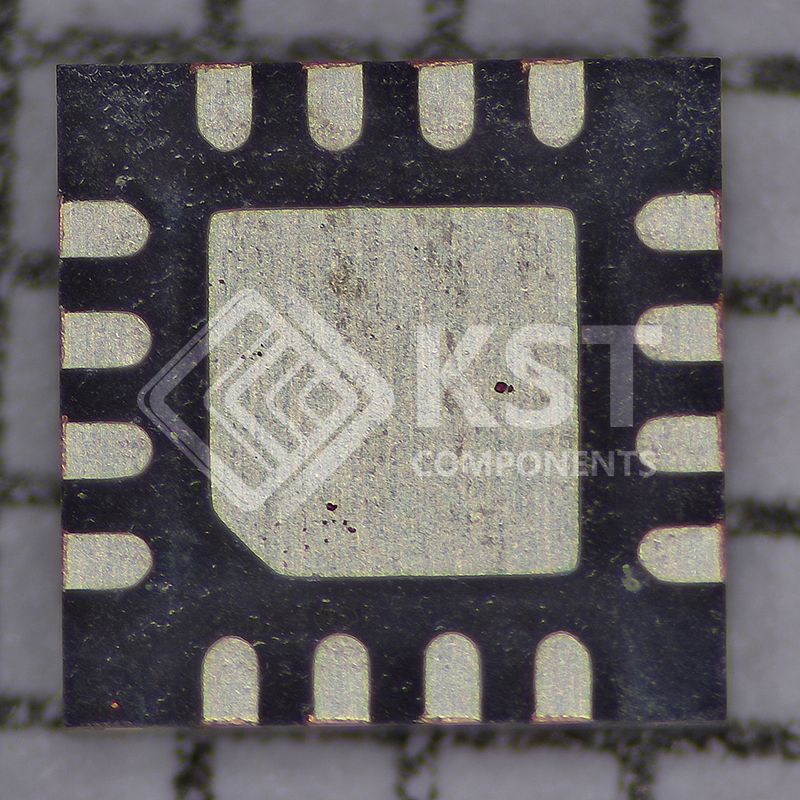

16-WFQFN Exposed Pad |
|
|
Supplier Device Package |
16-WQFN (3x3)
|
|
|
Base Product Number |

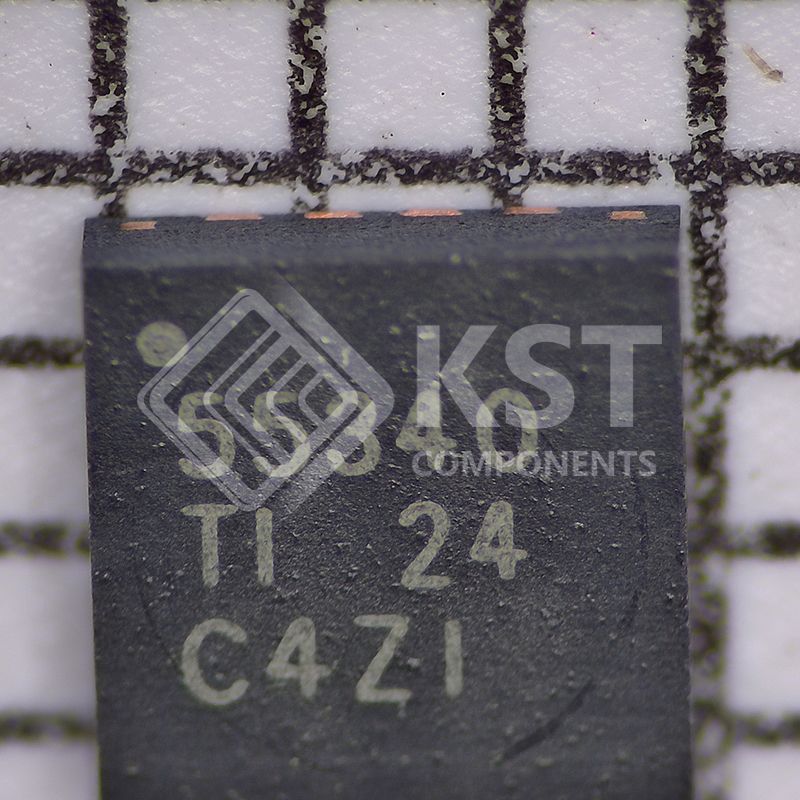

TPS55340 |
