Category |
Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
D-CAP2™, Eco-Mode™ |
|
|
Packaging |

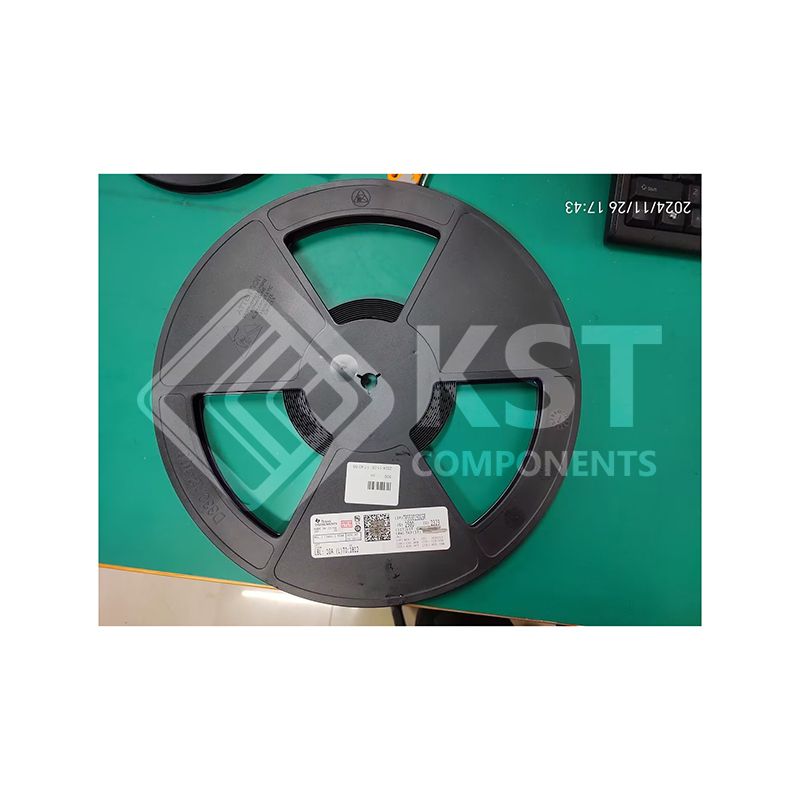

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Type |
Transistor Driver
|
|
|
Function |
Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Buck
|
|
|
Number of Outputs |
1
|
|
|
Output Phases |
1
|
|
|
Voltage - Supply (Vcc/Vdd) |
4.5V ~ 28V
|
|
|
Frequency - Switching |
500kHz
|
|
|
Duty Cycle (Max) |
-
|
|
|
Synchronous Rectifier |
Yes
|
|
|
Clock Sync |
No
|
|
|
Serial Interfaces |
-
|
|
|
Control Features |
Enable, Power Good
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
|
Supplier Device Package |
10-VSSOP
|
|
|
Base Product Number |
TPS53015 |
